3-68 Issue 4 February 1997
363-208-011
Cabling, Wiring, and Assembly
Central Office Alarms
All COT alarms are brought to the TS1 block for connections to the central office
audible and visual alarm systems. These alarms are critical, major, minor, and
power minor.
Each audible and visual alarm is cabled at the customer's discretion via wire
wrapped 22 or 24 gauge paired wires in accordance with the TS1 terminal block
assignment depicted by Figure 3-47.
The same terminals from other
SLC
-2000 bays can be multipled together at the
TS1 block if desired to share the same office alarm system.

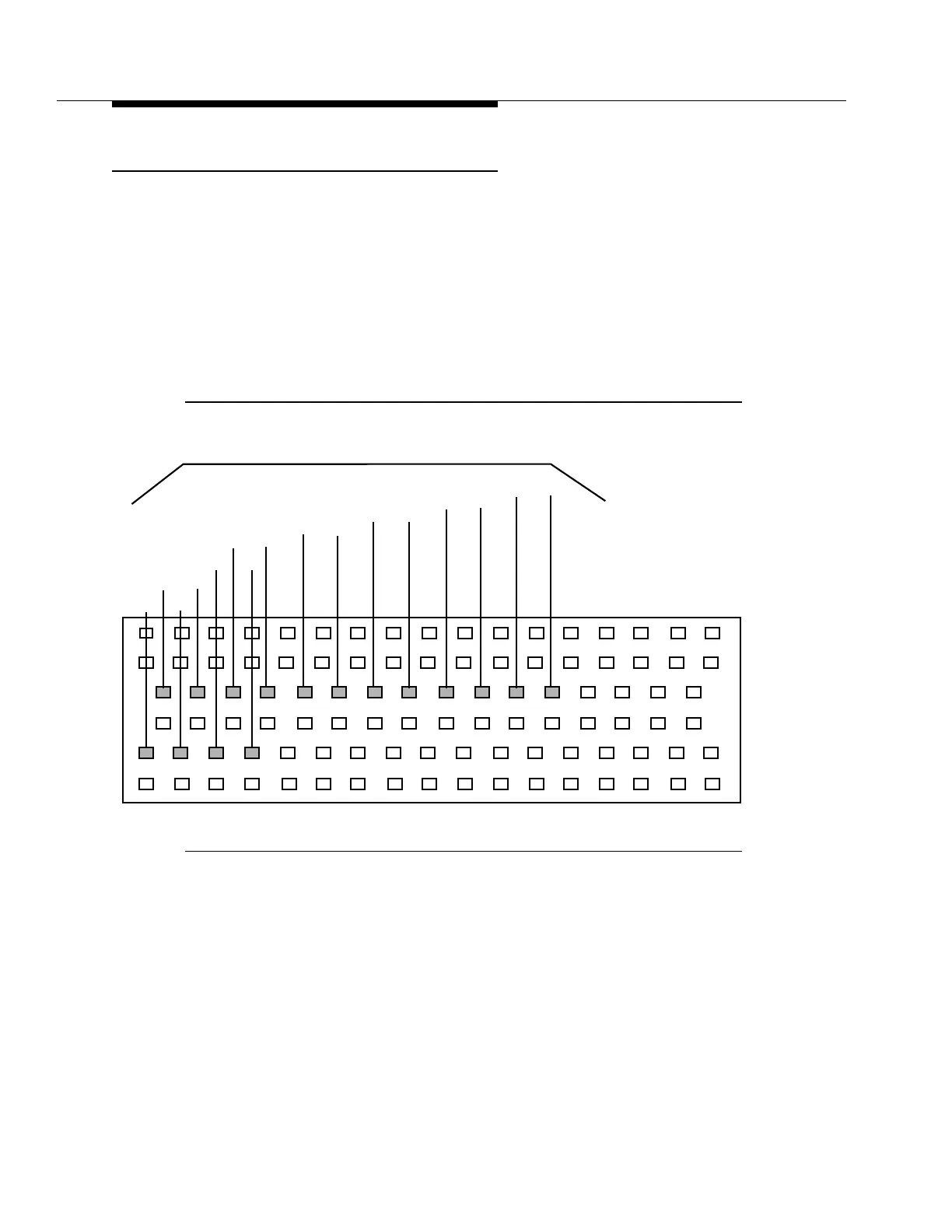

Figure 3-47. TS1 Block CO Alarms Connections
2
34 6 89
1
18 19 20 21
22
23 24 25
26
27
28 29
MNA MNAR
MNV MNVR
MJA
MJAR
MJV MJVR
PMNA
CRA
PMNAR
PMNV PMNVR
CRAR
CRV CRVR
To Central Office Alarm Systems
