Lucent Technologies SLC-2000 Access System Central Office Terminal User Manual

2-4 Issue 4 February 1997
363-208-011
Installation Procedures

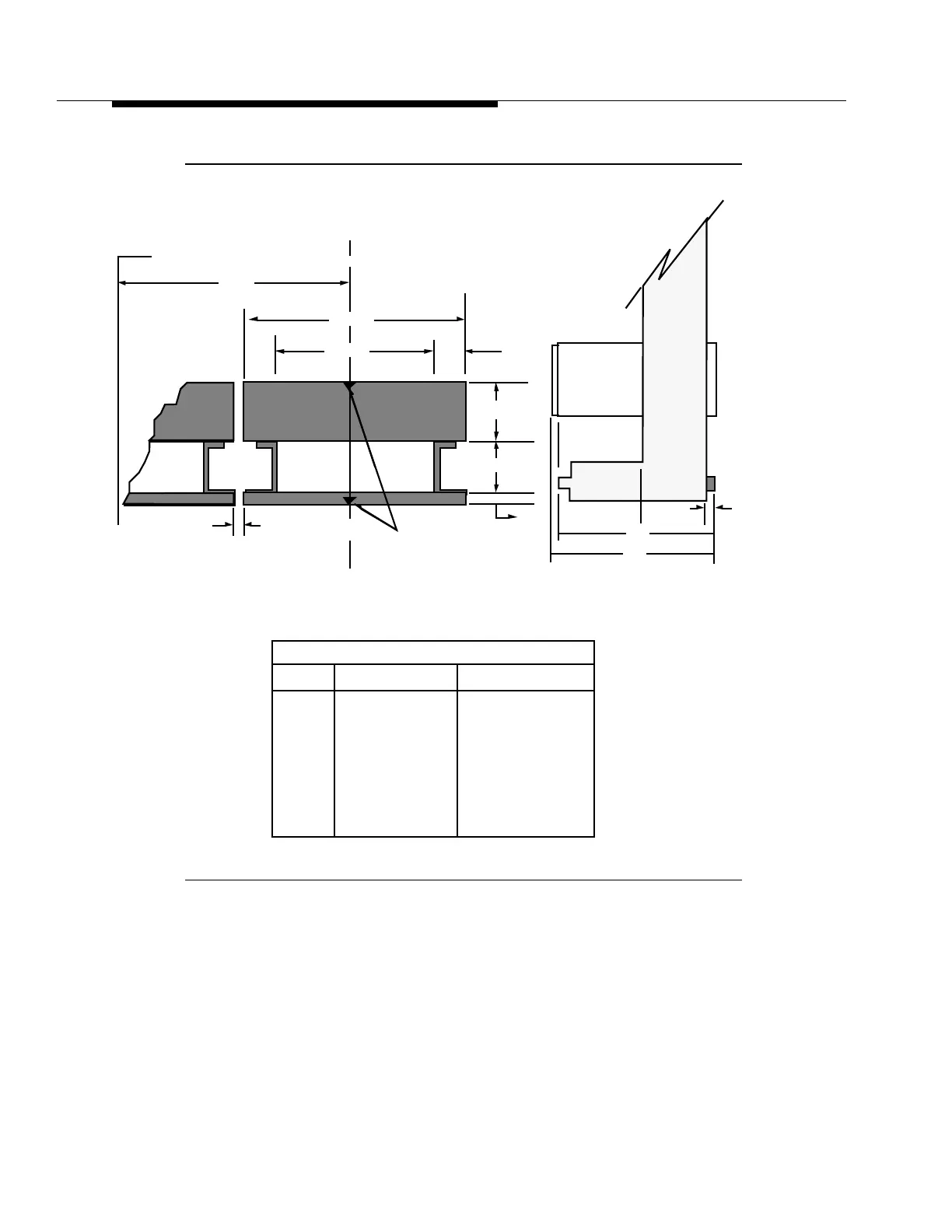

Figure 2-1A. Bay Frame Views (Front Flush Mount Shelf Arrangement)
Adjacent
Bay CL
Dimensions
English (in.) Metric (mm)
A
B
C
D
E
F
G
H
26.00
25.875
21.5
2.1875
6.00
5.00
1.00
0.125
660.40
657.225
546.10
55.5625
152.40
127.00
25.4
3.175
Front
Identification For
Positioning Frames
A
D
E
F
G
H
Top View
GF
E
12"
13"
Rear
Side View
B
C
Bay CL
Frame Front
ED8C500-50 G-1
Conventional Front Flush Mount Arrangement
(J1C265B-1)
ARM
J1C265AD-1 L1
MDS
J1C265AE-1 L1
