Lucent Technologies SLC-2000 Access System Central Office Terminal - Page 70

3-12 Issue 4 February 1997
363-208-011
Cabling, Wiring, and Assembly

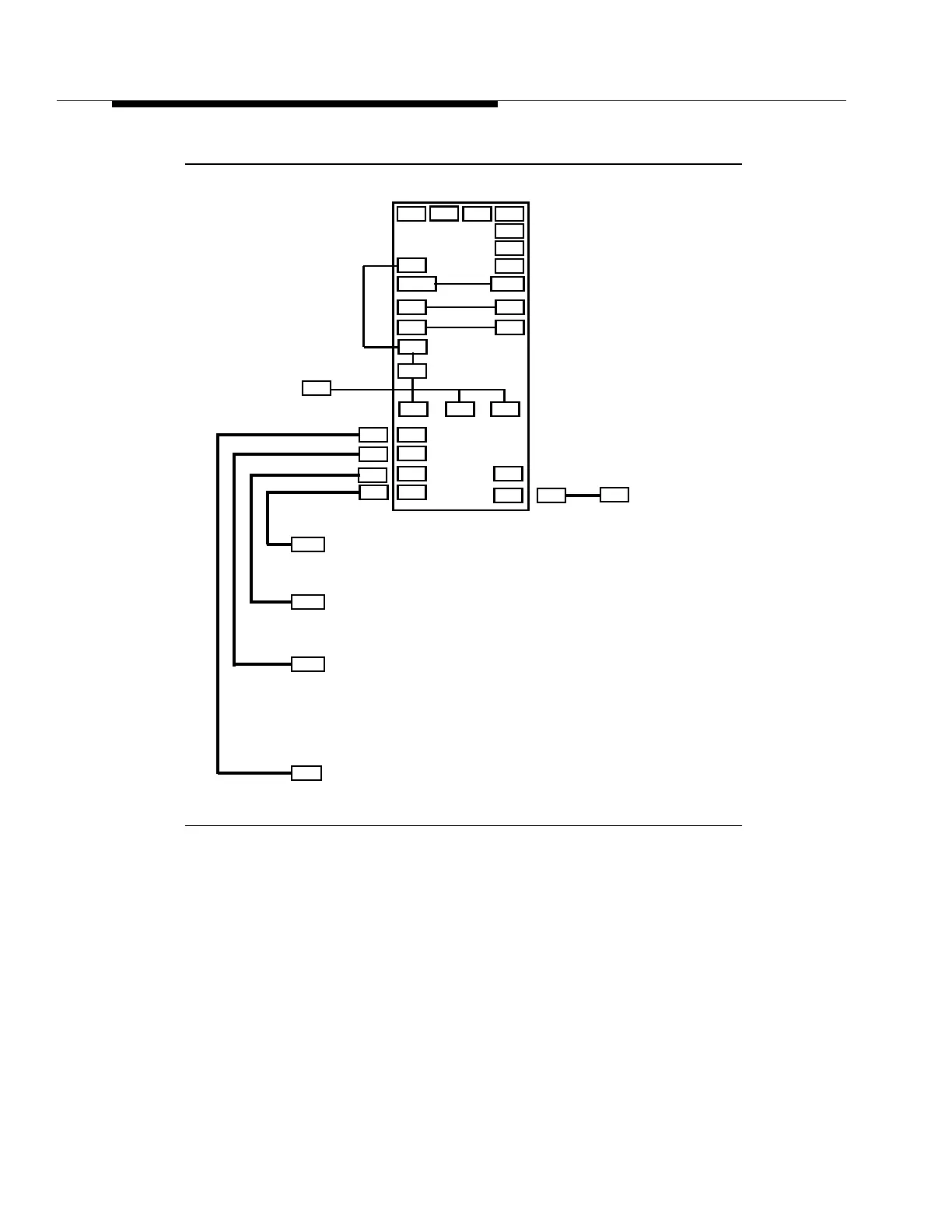

Figure 3-7. ARM Shelf Cable Assemblies
J165
J167
J166
J168
P177
E5-E8
P254
P174
P256
P266E1-E4
J132
J133
P277
E11-E14
P257
P214
J130
J131
P171
J175
ED7C723-30, G6
ARM/UIP
PCM
J303
J500-4
J500-3
J500-2
J500-1
P133
PCM
PCM
PCM
P130
P131
P132
P175
P275
J266
ED7C723-30, G1
P184
P183
J173
ED7C723-30, G9()
ED7C723-30, G10()
ED7C723-30, G11()
ED7C723-30, G12()
ED7C723-30, G7
