Cabling, Wiring, and Assembly

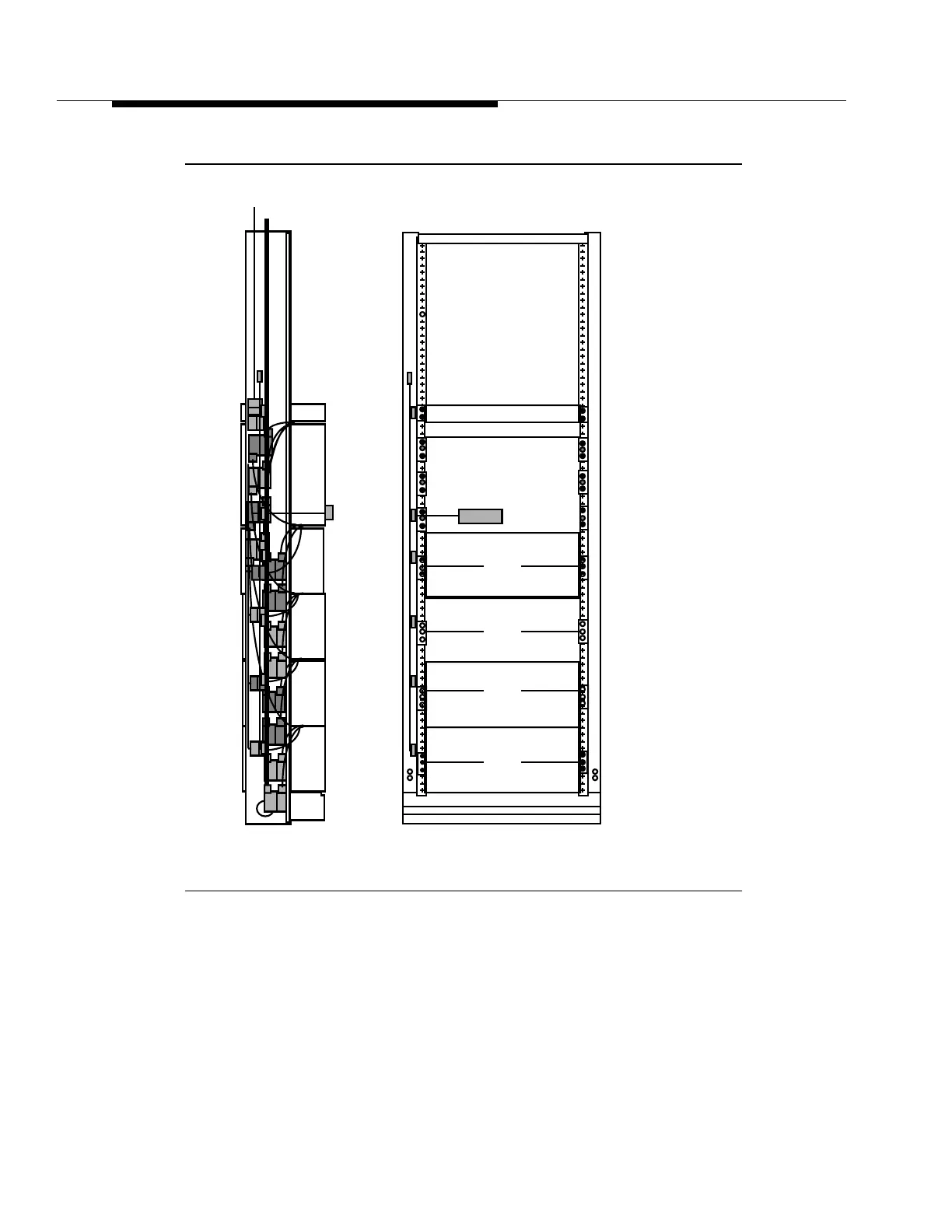

Figure 3-11. Power Interface Location
ARM Shelf
MDS #3
1A ATU
UIP Shelf
MDS #4
MDS #1
MDS #2
Shelf 1
Shelf 2
Shelf 3
Shelf 4
Shelf 5
Shelf 6
Shelf 7
Shelf 8
FRONT VIEW
LEFT VIEW
PIU
PIU
