3 Basics
3.1 LXNAV S80 at a Glance

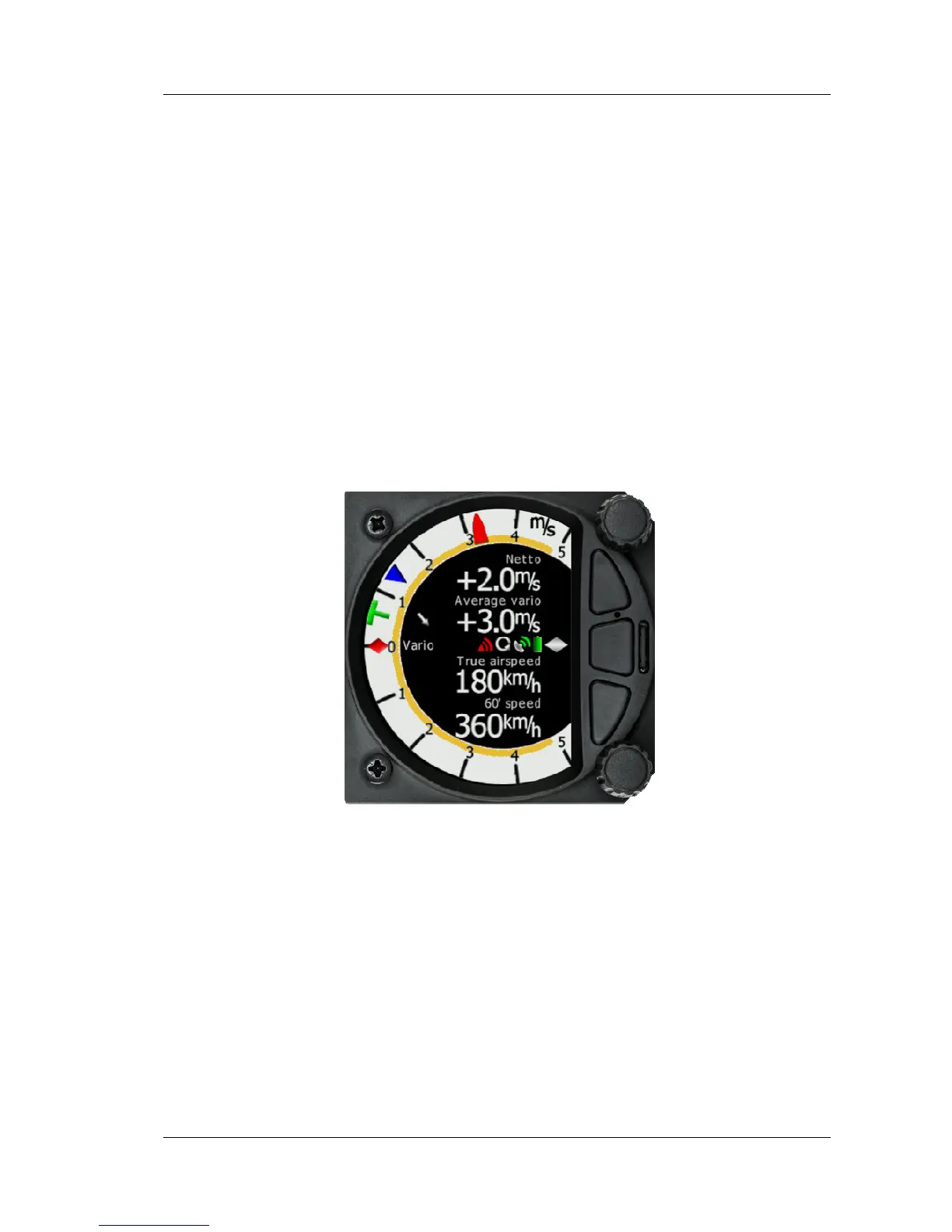

LXNAV S80 is standalone digital vario meter, final glide calculator and navigation system with
simple moving map. The LXNAV S80 has both GPS/Flarm and PDA/PNA inputs/outputs. The
unit has standard dimensions that will fit into a glider panel with an opening of - 80 mm
diameter (3.15”). It is also able to supply PDA/PNA with power (5VDC/1A). The unit has an
integrated high precision digital pressure sensor and inertial system. The sensors are
sampled more than 100 times per second. Real time Data is indicated with the vario needle,
airspace map and up to 4 variable number fields displayed on QVGA 320x240 pixel, 3.5 inch,
high brightness (1200 nits) colour display. To adjust values and settings, the LXNAV S80 has
two rotary push button knobs and three additional push buttons.
The LXNAV S80 can be expanded with one or more repeaters (LXNAV S80D) through the
CAN bus.. This allows both pilots in a two seat glider to have equal control of all functions
from the front or the rear seat.
3.1.1 LXNAV S80 Features
• Extremely bright 3.5’’ 8.9cm QVGA colour display readable in all sunlight conditions
with the ability to adjust the backlight .
• Two rotary switches (knobs) with push button function and three push buttons are
used for input.
• Pre-loaded polar database for almost all gliders.
• GPS/Flarm and PDA/PNA inputs/outputs
• Flarm Indication, if Flarm is connected to the GPS/Flarm port
• Needle indicating various data such as netto vertical speed, relative (super netto) and
vertical speed (vario).
• 320x240 pixels colour screen for additional information such as average, thermal
vario, time, speed etc…
• Many custom audio settings
