Mahr GmbH, MarSurf M 300 and RD 18
24
3.5.5 Parameters and Tolerance Limits
To select the parameters that are to be evaluated
in the "Result" view and in the record:
1. Open the "Parameters" menu by pressing
the key.
2. Press the 1 key to display the parameters
in accordance with "ISO / ASME / JIS" or in
accordance with "MOTIF".
3. Select the parameters to be evaluated in
sequence by pressing the key (e. g. "Rmax"
with key 0) and activating the "Calculate"
check box.
17
4. To enter tolerance limits for the selected pa-
rameter:
Use the • 8 key to select the upper toler-
ance limit "
TOL" and enter the de-
sired value.
Use the • 9 key to select the lower toler-
ance limit "
TOL" and enter the de-
sired value.
5. Activate the
button by pressing the
key.
6. The selected parameters are displayed with
the tolerance limits in the "Parameters"
menu.
If the value "0.00" appears for "
TOL" or
" TOL", this tolerance limit has not been
defined.
When the value "0.00" is set for "
TOL"
and "
TOL", no tolerance monitoring oc-
curs for these parameters.
17 Or activate the "All" check box to evaluate all parameters
in accordance with "ISO / ASME / JIS" or "MOTIF".
Oper-
a tor A
Oper-
a tor B
Traversing
length
Evaluation
length
in mm in mm in mm in mm
0.02
0.1
0.5
0.1
0.5
2.5
0.64
3.2
16
0.64
3.2
16
Tab. 4
Determining the operators A and B
in accordance with ISO 12085
Setting the intersection lines
for zone widths
With the three-zone meas urement, zone widths
CR, CF and CL are calculated. For each of these
parameters, two intersection lines are specified
(in %), which determine the position of the re-
spective zone in the material ratio curve (48).
0
100 %
CR
CF
CL
Scr1
Scr2
Scf1
Scf2
Scl1
Scl2
48
µm

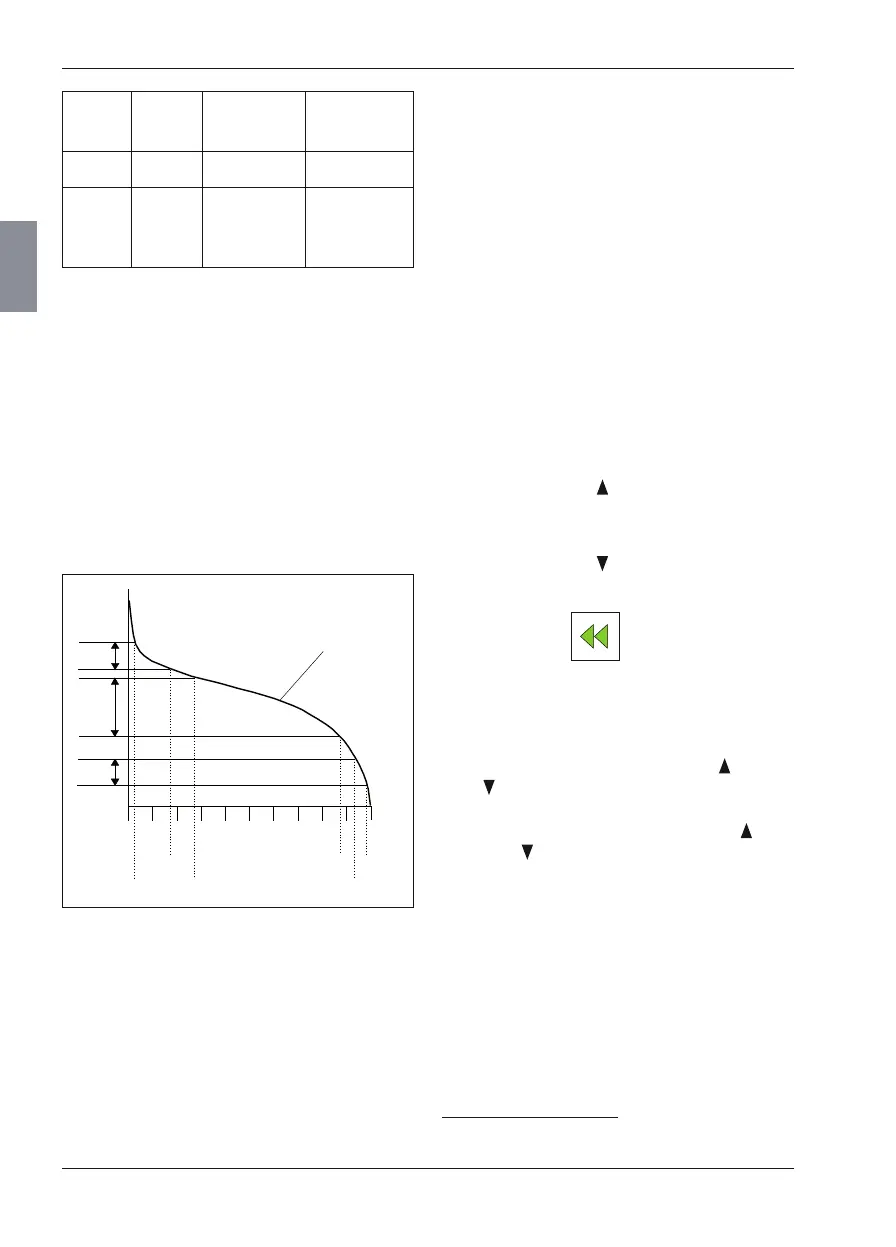

Fig. 9
Intersection lines for three-zone meas urement
48 Material ratio curve
Scr1, Scr2:
Upper and lower intersection
lines for CR
Scr1, Scr2: Upper and lower intersection
lines for CF
Scr1, Scr2: Upper and lower intersection
lines for CL
