PRINT Opens the "Print" menu.
Displays the "Result" view.
F1, F2 Function keys to select a user-
programmable function.
Paper feed key moves the pa-
per out of the printer as long as
it is held down.
MENU Depending on the situation:
Displays the main menu.
Aborts alphanumeric input.
Lt/Lc With ISO, ASME, JIS: Sets
4
the
cutoff and the traversing length
or the automatic selection of
cutoff and traversing length.
With MOTIF: Sets the traversing
length.
M Displays the "Meas uring
Station" view.
START Depending on the situation:
Switches the M 300 on.
5
Starts a meas urement.
Aborts a meas urement in prog-
ress, the search for drive units
or a record output.
Takes over alphanumeric input.
For the following key combinations, hold
down the START key and then press the
key indicated:
START
+ M Switches the M 300 and the
selected RD 18 off.
4 The instrument settings cannot be modified if they are
blocked (see Section 3.5.2).
5 Only possible if the reset switch (12) is in the "I" position.
Mahr
1
2
3
4

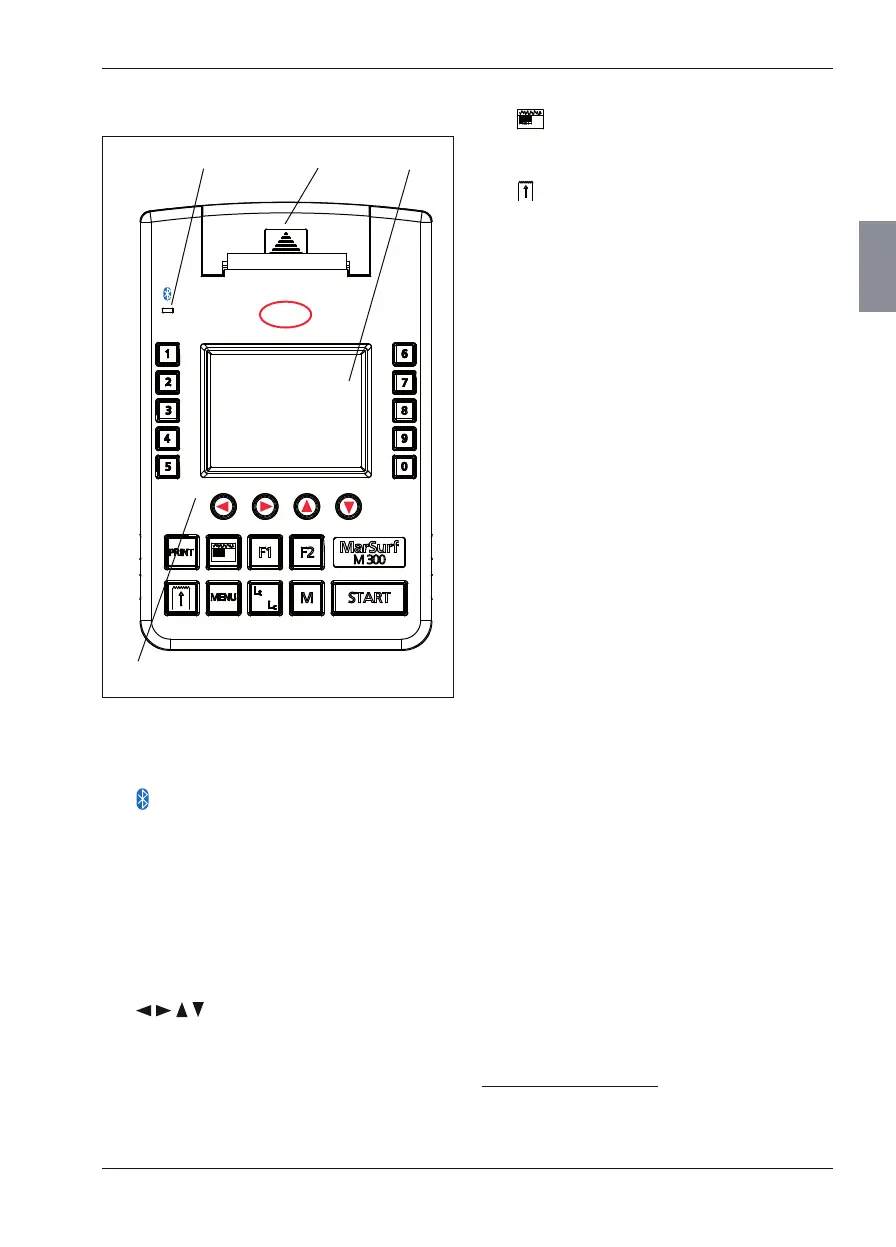

Fig. 1
Operating elements of the MarSurf M 300
surface texture meas uring instrument (front)
1 Symbol for Bluetooth connec-
tion; LED lights up in blue when
there is a Bluetooth connection
with a MarSurf RD 18.
2 Printer cover
3 Display
4 Keypad
1 to 0 Depending on the situation:
Select the functions displayed.
Used for alphanumeric input.
Arrow keys for alphanumeric
input.
2 Operating Elements
