Man B&W L35MC6-TII - Data Sheet for Propeller; Dimension Sketch for Propeller Design Purposes

MAN B&W 5.18
Page 2 of 8
MAN Diesel
198 46 953.5MAN B&W S70MC, S70MC-C/ME-C/ME-GI, L70MC-C/ME-C,
S60MC, S60MC-C/ME-C/ME-GI/ME-B, L60MC-C/ME-C,
S50MC, S50MC-C/ME-C/ME-B, S46MC-C/ME-B, S42MC,
S40MC-C/ME-B, S35MC, S35MC-C/ME-B, L35MC, S26MC
Data Sheet for Propeller
Identification: _______________________________
178 22 360.0
Table 5.18.02b: Data sheet for propeller design purposes
Type of vessel: ______________________________
For propeller design purposes please provide us
with the following information:
1. S: ______________ mm
W: _____________ mm
I: _______________ mm (as shown above)
2. Stern tube and shafting arrangement layout
3. Propeller aperture drawing
4. Complete set of reports from model tank (re-
sistance test, selfpropulsion test and wake
measurement). In case model test is not avail-
able the next page should be filled in.
5. Drawing of lines plan
6. Classification Society: __________
Ice class notation: _____________
7. Maximum rated power of shaft generator: kW
8. Optimisation condition for the propeller:
To obtain the highest propeller efficiency
please identify the most common service con-
dition for the vessel.
Ship speed: ___________________________ kn
Engine service load: ____________________ %
Service/sea margin: ____________________ %
Shaft generator service load: ____________ kW
Draft: _________________________________ m
9. Comments:
IW S

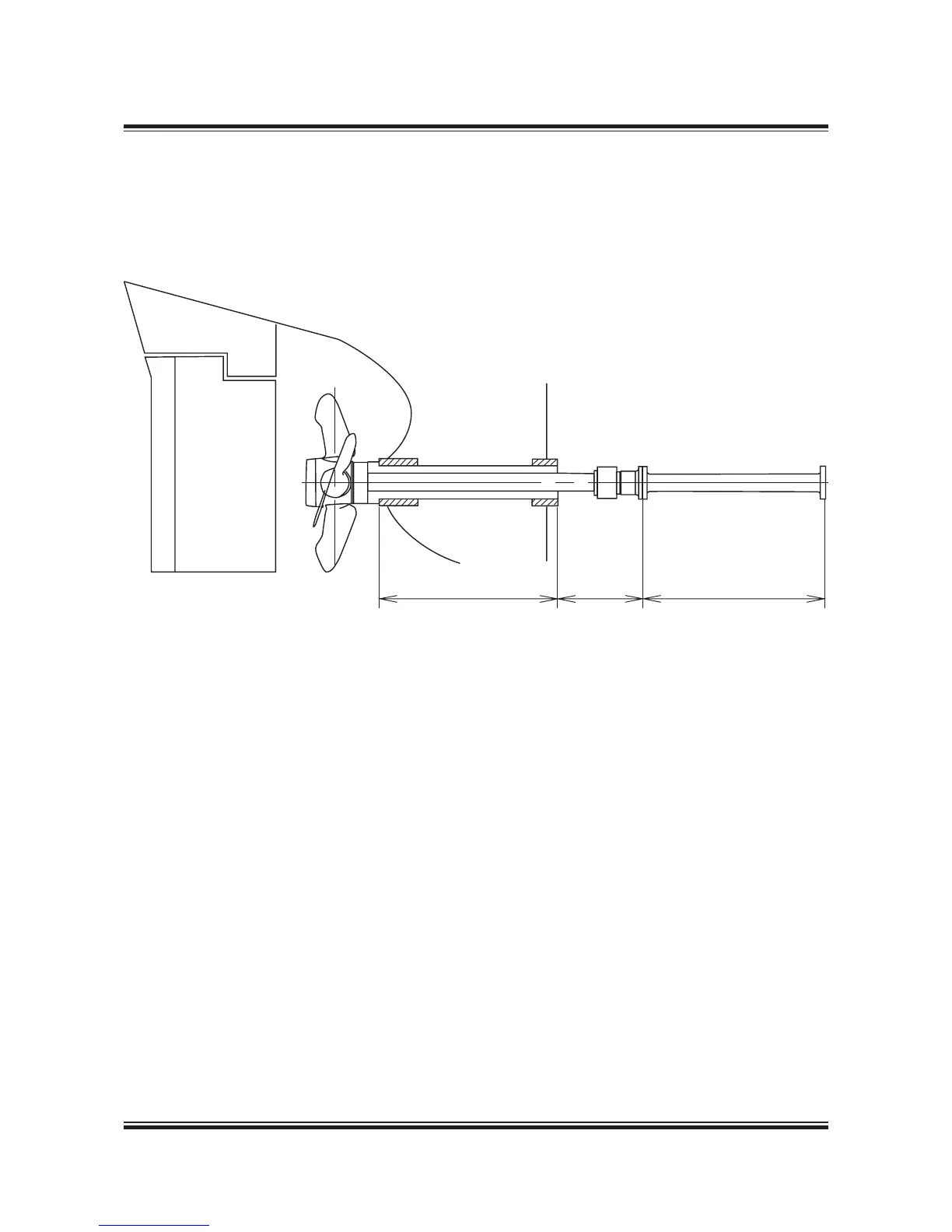

Fig. 5.18.02a: Dimension sketch for propeller design purposes
