Man B&W L35MC6-TII - Governor and Remote Control Components; Electronic Governor; Components for Remote Control of Reversible Engine with FPP

MAN B&W 16.01
Page 7 of 11
MAN Diesel
MAN B&W MC/MC-C engines 198 79 11-5.0
Governor and Remote Control Components
178 58 13-9.0

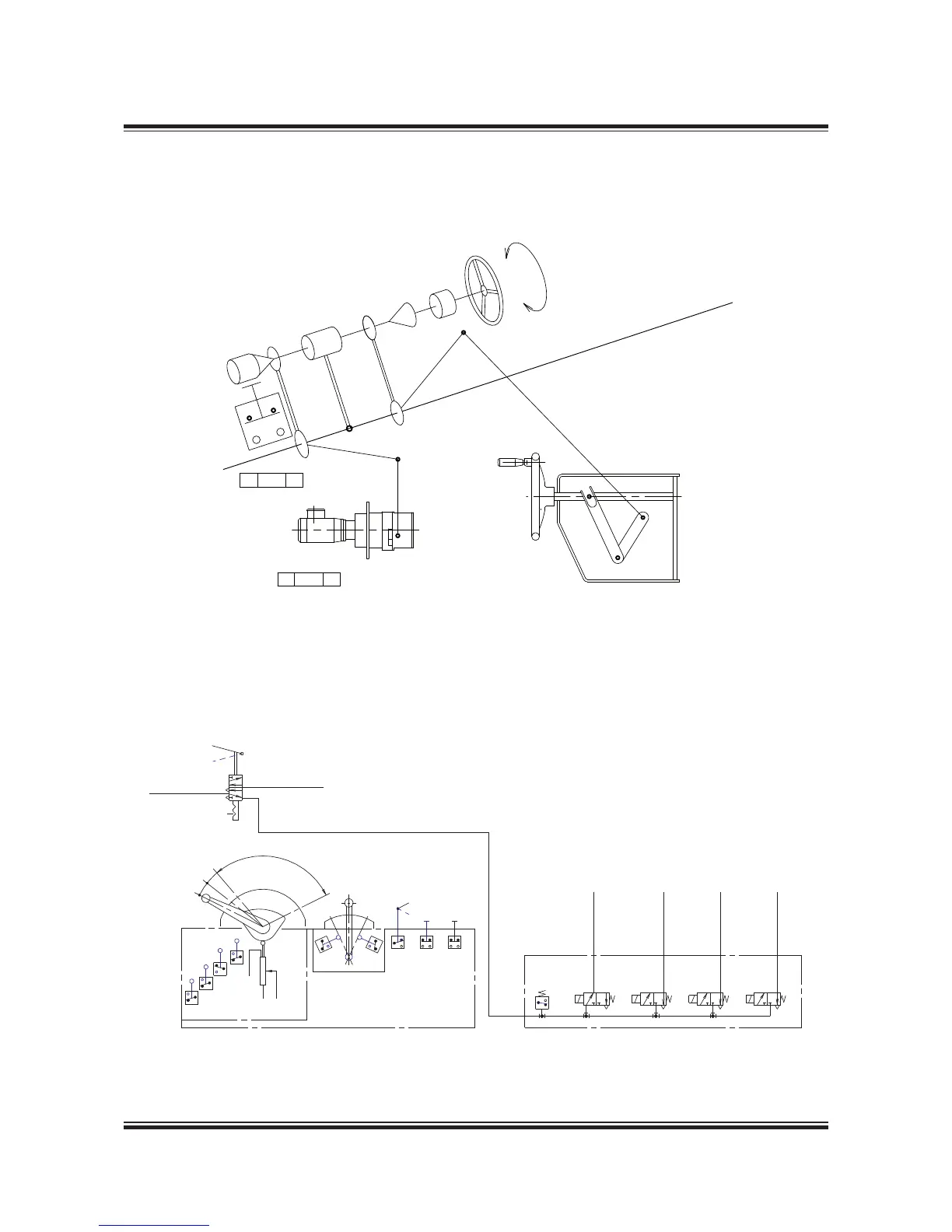

Fig. 16.01.05: Components for remote control of reversible engine with FPP with bridge control
Fig. 16.01.04: Electronic governor
178 58 12-7.0
Governor
control
Manual
control
Actuator for fuel rack
P
Fuel rack
Engine side handwheel
ZS 1122 C
E 1182 C
Remote
Manual
Telegraph
Control room
Bridge control
Ahead Astern
STOP
START
MIN
MAX
Stop Start
Ahead Astern
ZS 1107 C ZS 1108 C
ZS 1140 C
ZS 709
ZS 708
PS 1134 C ZS 1136 C ZS 1141 C ZS 1142 C ZS 1137 C
