Man B&W L35MC6-TII - Types of PTO

MAN B&W 4.01
Page 2 of 5
MAN Diesel
198 57 39-2.1MAN B&W S46MC-C7/8, S46ME-B8, S42MC7,
S40MC-C9, S40ME-B9, S35MC-C9, S35MC7,
S35ME-B9, L35MC6, S26MC6

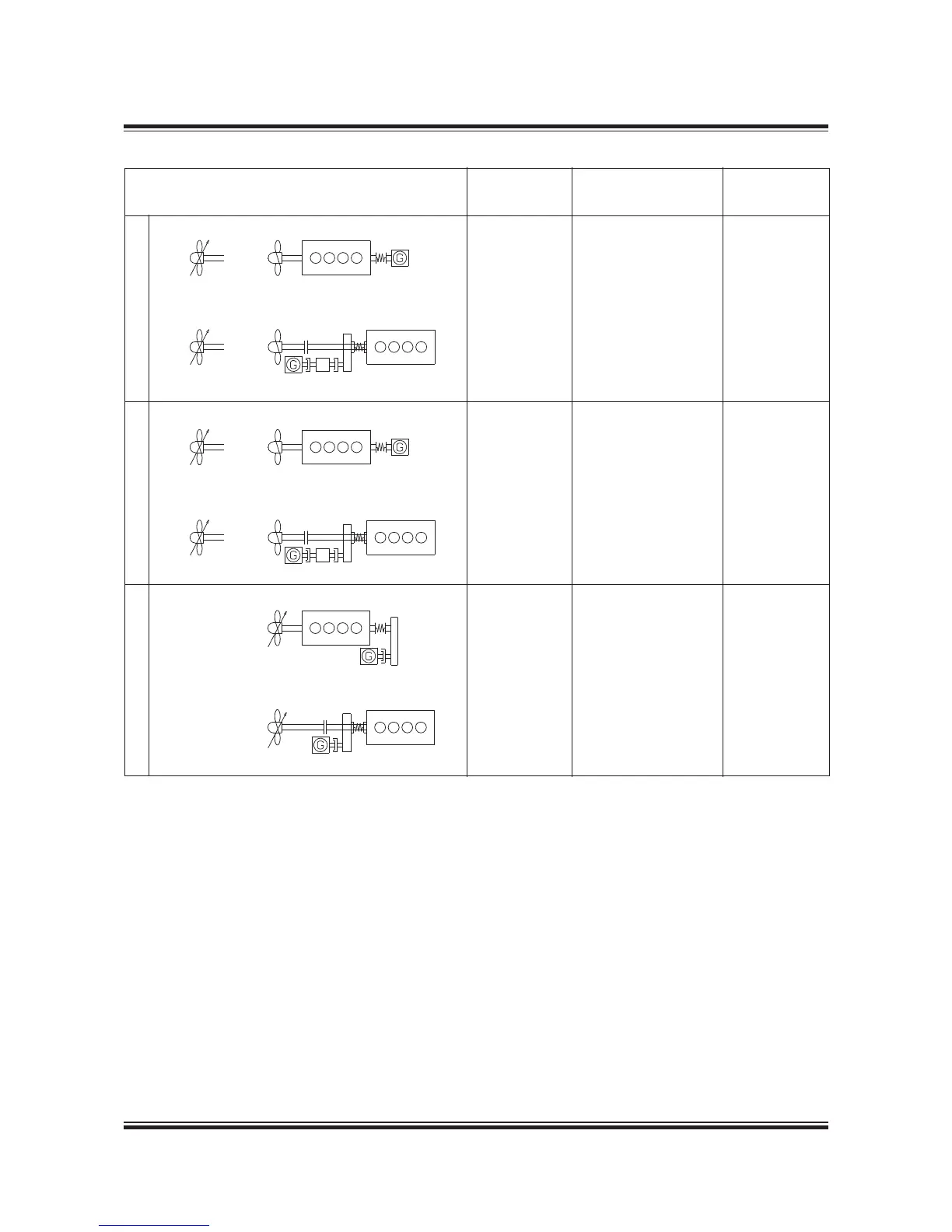

Fig. 4.01.01: Types of PTO
178 57 10-8.0
Total
Alternative types and layouts of shaft generators Design Seating efficiency (%)
1a 1b BW II/RCF On tank top 8891
2a 2b BW IV/RCF On tank top 8891
3a 3b BW II/CFE On tank top 8185
4a 4b BW IV/CFE On tank top 8185
5 BW II/GCR On tank top 92
6 BW IV/GCR On tank top 92
PTO/RCFPTO/CFEPTO/GCR
