MAN B&W 4.03
Page 1 of 1
MAN Diesel
198 57 42-6.1MAN B&W S46MC-C7/8, S46ME-B8, S42MC7,
S40MC-C9, S40ME-B9, S35MC-C9, S35MC7,
S35ME-B9, L35MC6, S26MC6

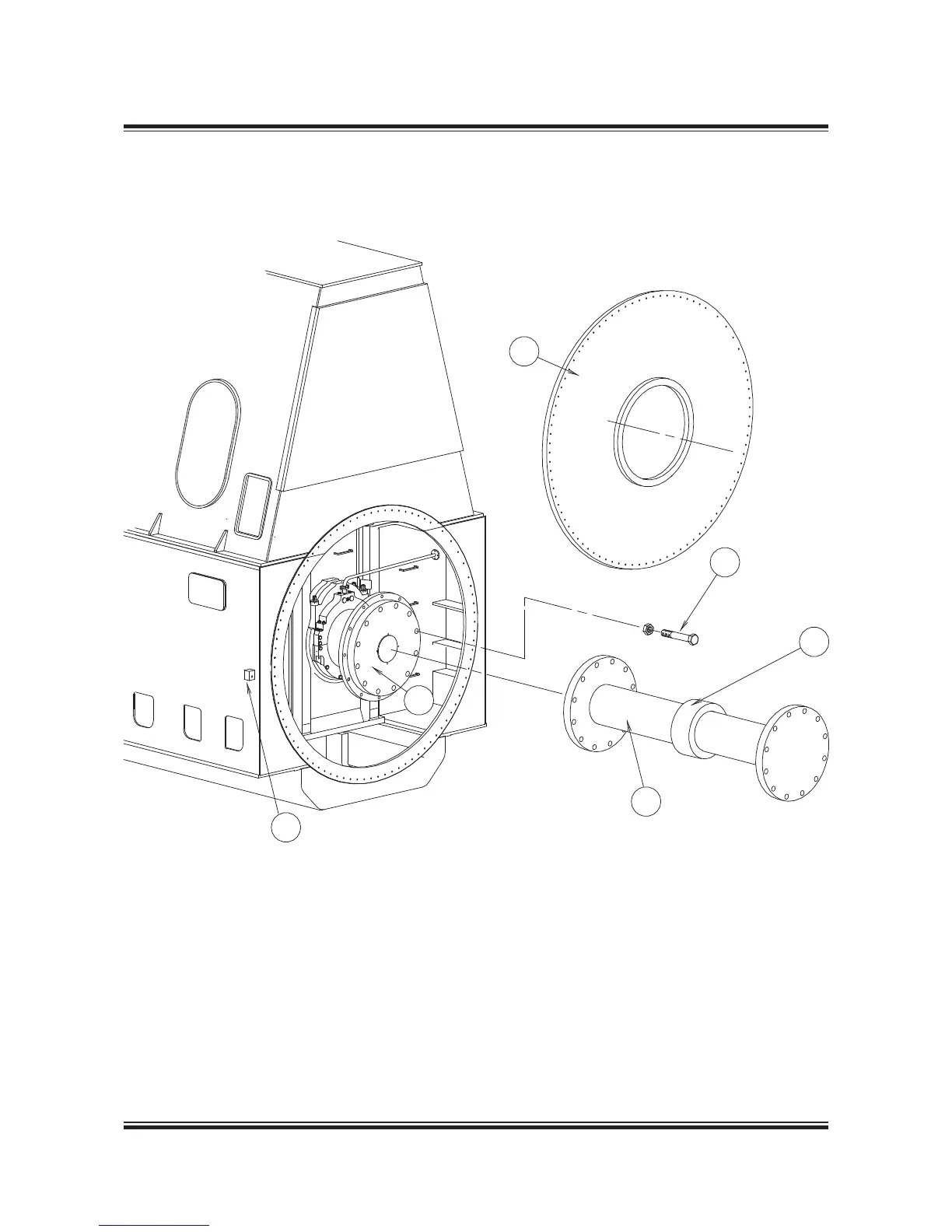

1. Flange on crankshaft
2. Studs and nuts, dowel pipe and screws
3. Intermediate shaft between the crankshaft and flexible coupling for PTO
4. Oil sealing for intermediate shaft
5. End cover in 2/2 with scraper ring housing
6. Plug box for electronic measuring instrument for check of condition of axial vibration damper
178 43 54-4.0
Fig. 4.03.01: Engine preparations for PTO
5
2
4
3
6
1
Engine preparations for PTO BW II
