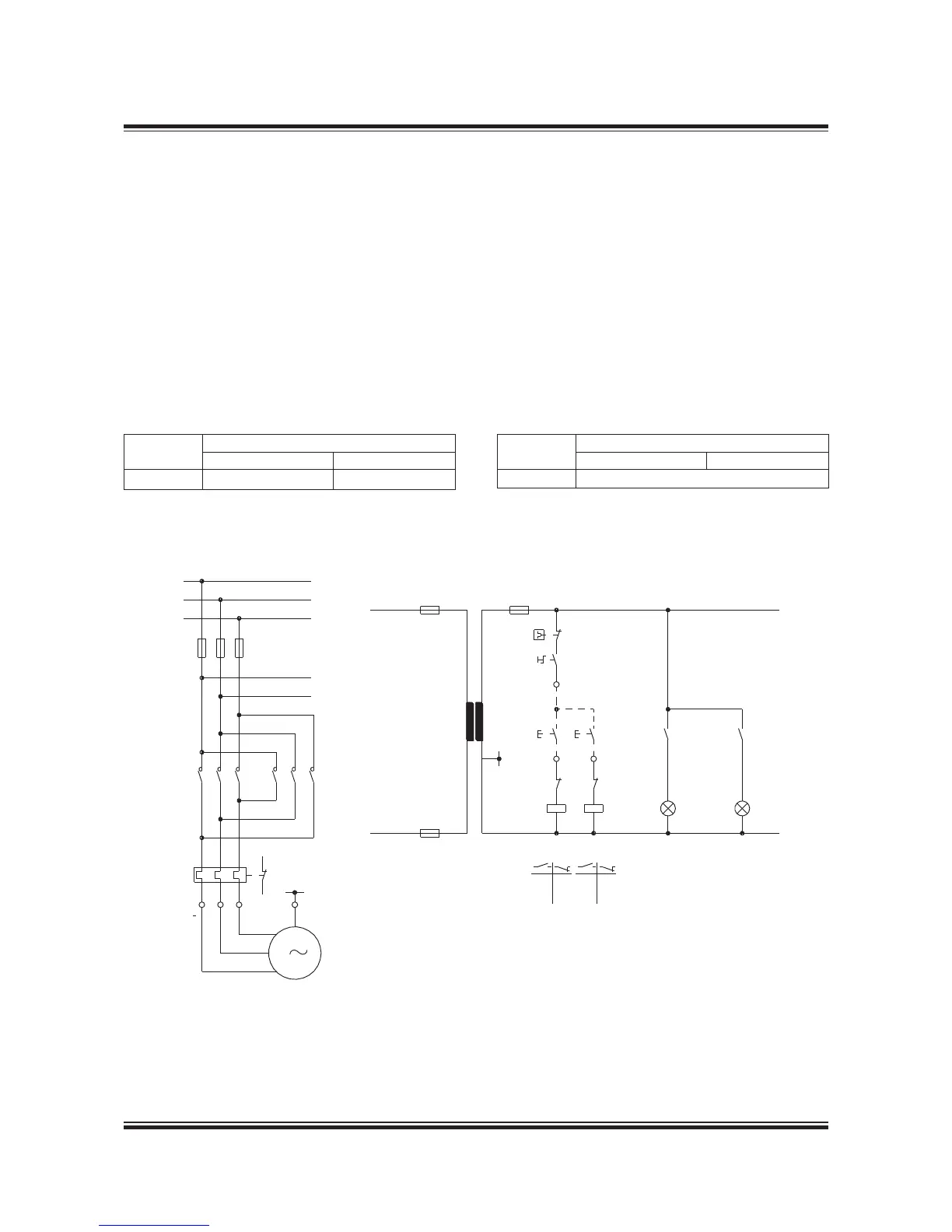

Fig. 13.04.01: Electric motor for turning gear, option: 40 80 101
178 31 309.1
Electric Motor for Turning Gear
MAN Diesel delivers a turning gear with built-in
disc brake, option 40 80 0. Two basic executions
are available for power supply frequencies of 60
and 50 Hz respectively. Nominal power and cur-
rent consumption of the motors are listed below.
Turning gear with electric motor of other protec-
tion or insulation classes can be ordered, option
40 80 03. Information about the alternative ex-
ecutions is available on request.
Electric motor and brake, voltage ............ 3 x 440 V
Electric motor and brake, frequency .............60 Hz
Protection, electric motor / brake ....... IP 55 / IP 54
Insulation class ..................................................... F
Electric motor and brake, voltage ............ 3 x 380 V
Electric motor and brake, frequency .............50 Hz
Protection, electric motor / brake ....... IP 55 / IP 54
Insulation class ..................................................... F
Number of
cylinders
Electric motor
Nominal power, kW Normal current, A
5-2 *) 0.55 .3
*) Brake motor power supply 220 V / 60 Hz
Number of
cylinders
Electric motor
Nominal power, kW Normal current, A
5-2 Available on request
