MAN Diesel
MAN B&W S50MC6, S50MC-C7, S50MEC7, S46MC-C7/8,
S46ME-B8, S42MC7, S40MC-C9, S40ME-B9, S35MC7,
S35MC-C9, S35ME-B9, L35MC6, S26MC6
198 40 651.3

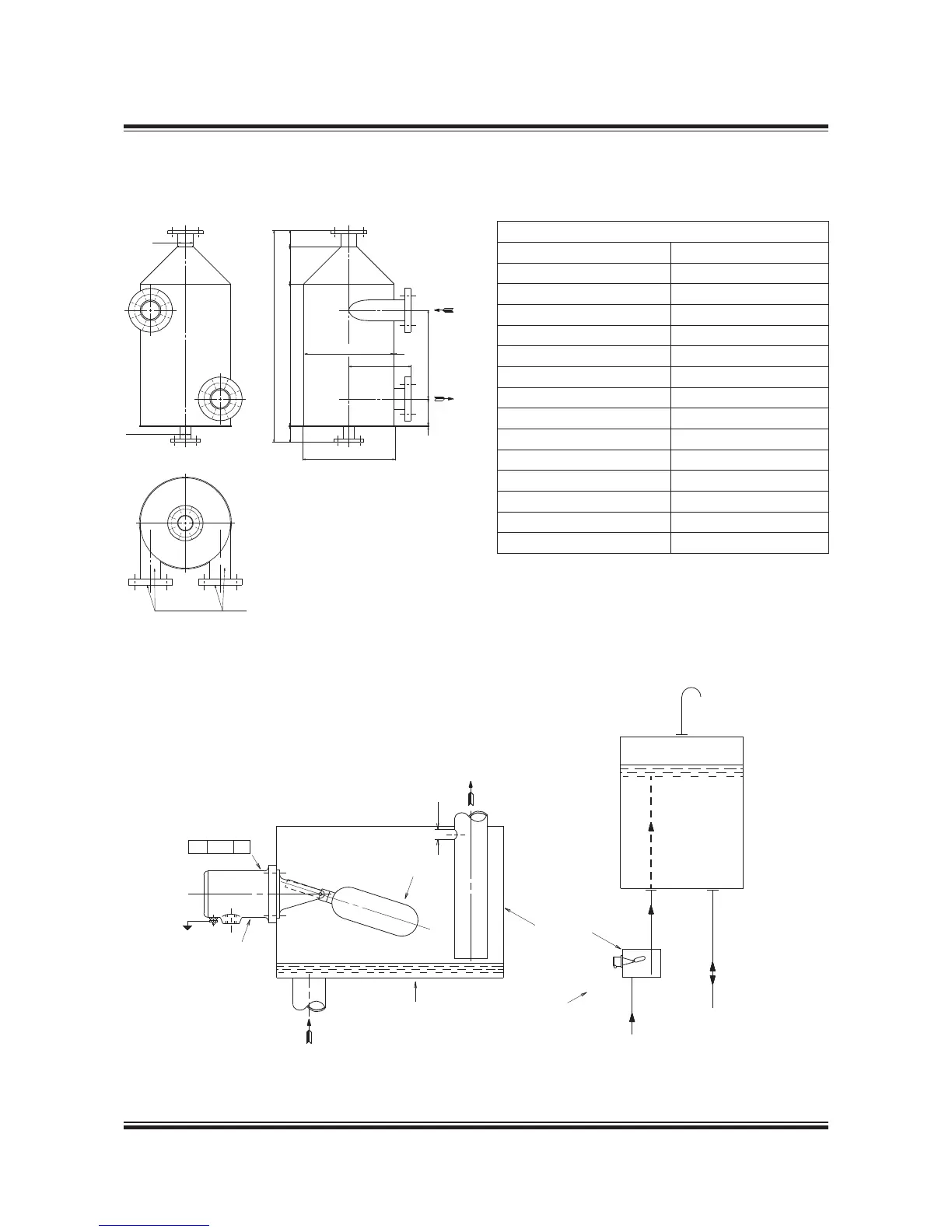

Fig. 12.07.01: Deaerating tank, option: 4 46 640
Fig. 12.07.02: Deaerating tank, alarm device, option: 4 46 645
Deaerating tank
Deaerating tank dimensions
Tank size 0.05 m
3
Max. jacket water capacity 120 m
3
/h
Dimensions in mm
Max. nominal diameter
125
A
600
B
125
C
5
D
150
E
300
F
910
G
250
øH
300
øI
320
øJ
ND 50
øK
ND 32
øJ
øK
Diameter corresponding to
pipe diameter in engine room
90
B
F
A
90
øI
øH
G
5
ED
C
LS 8412 AL
Level switch
Level switch float
in position for alarm
Level switch float
in normal position  no alarm
Alarm device
From deaerating tank
Expansion tank
ø15
Level switch float
178 06 279.2
198 97 091.1
ND: Nominal diameter
Working pressure is according to actual piping arrangement.
In order not to impede the rotation of water, the pipe connec-
tion must end flush with the tank, so that no internal edges are
protruding.
