Removing and installing valves
90
Installing valves

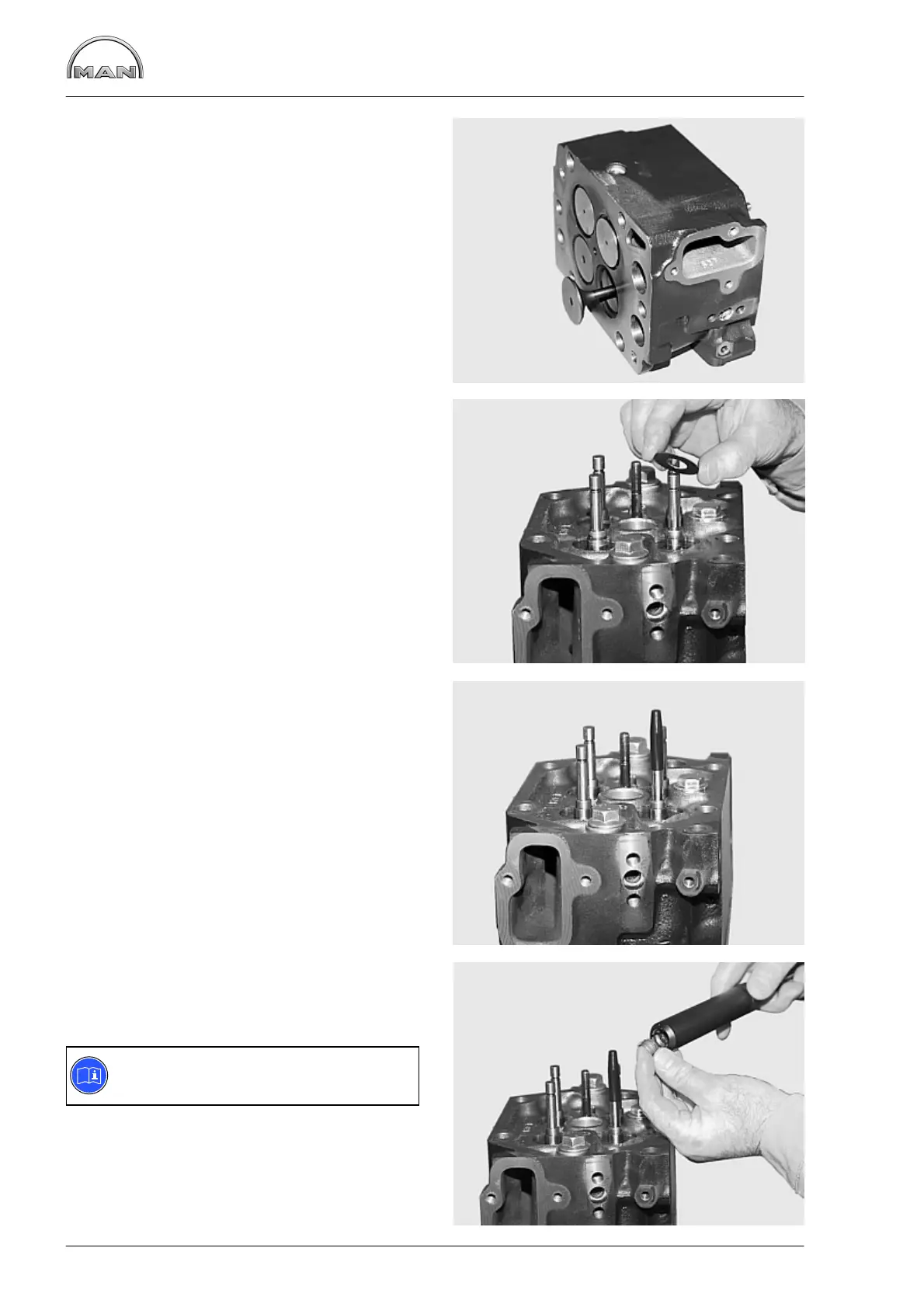

Fig. 13
Lubricate the valves at the stems and insert in the
correct valve guides.
D Small valve plate recess = intake valve
D Large valve plate recess = exhaust valve
Fig. 14
Turn the cylinder head over and secure to the
mounting plate.
Insert the washers for the valve springs.
Fig. 15
Mount the insertion sleeve for the valve stem seals
(special tool) on the relevant exhaust valve.
Fig. 16
Place the valve stem seal in the quick gripper so
that after installation the spiral−type expander is at
the top.
Note:
Use only new valve stem seals.
