GRT8100 SERVICE MANUAL HYDRAULIC SYSTEM
2
Published 3/26/2018, Control # 596-05

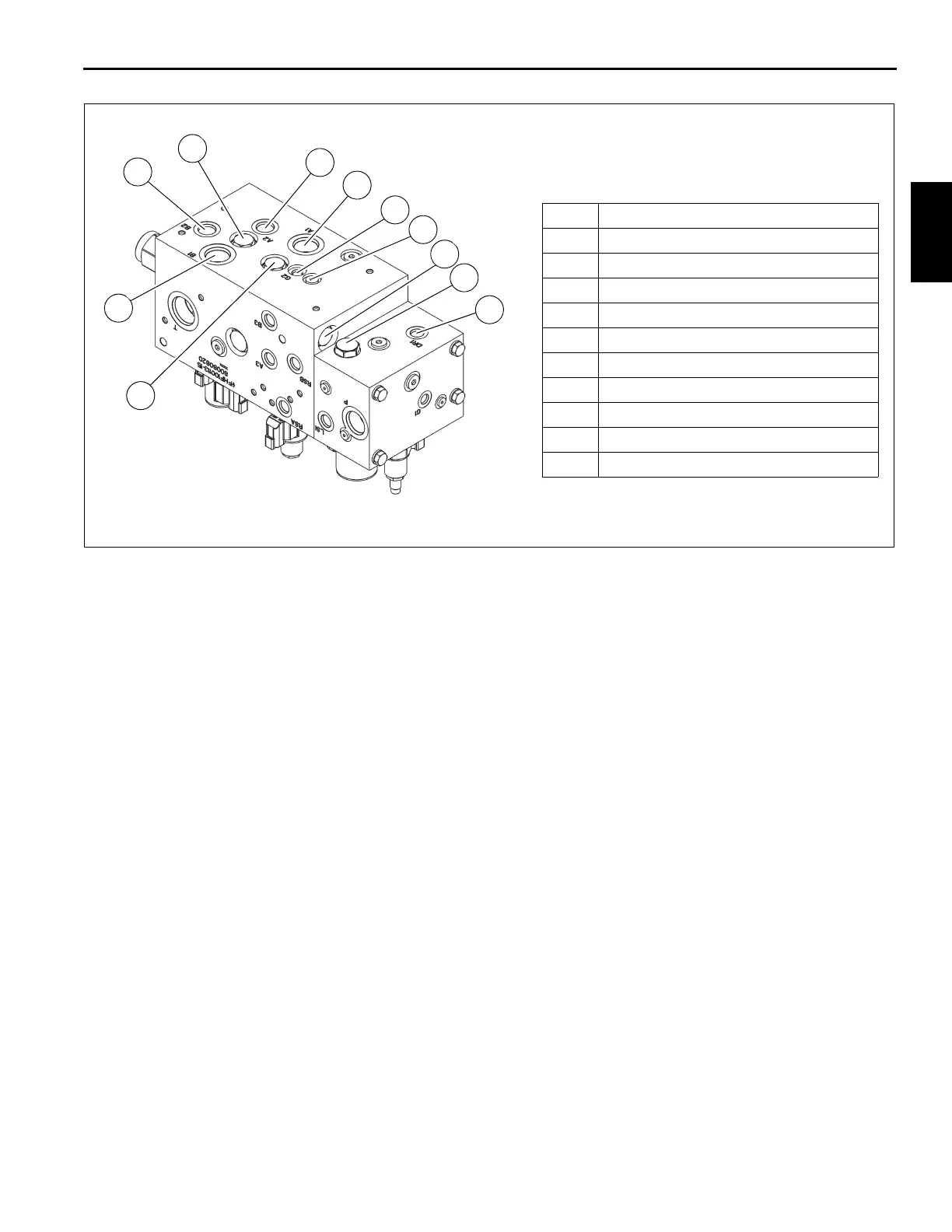

FIGURE 2-30
Carrier Combination Valve Cont.
31 Work Port - Axle Lockout (B2)
32 Check Valve
33 Work Port - Axle Lockout (A2)
34 Work Port - Outriggers Retract (A1)
35 Gauge Port (G2)
36 Orifice
37 Check Valve
38 Shuttle Valve
39 Drain Port (DR1)
40 Check Valve
41 Work Port - Outriggers Extend (B1)
38
39
32
33
34
31
35
40
8804-100
41
36
37
