Manitowoc Grove GRT8100 Service Manual

3-19
Published 3/26/2018, Control # 596-05
GRT8100 SERVICE MANUAL ELECTRICAL SYSTEM
3
GROVE
8673
3
1
2
4
5
6
7
8
9
10
11
12
13
14
16
17
19
22
20
21
18
23
24
A
B
C
D

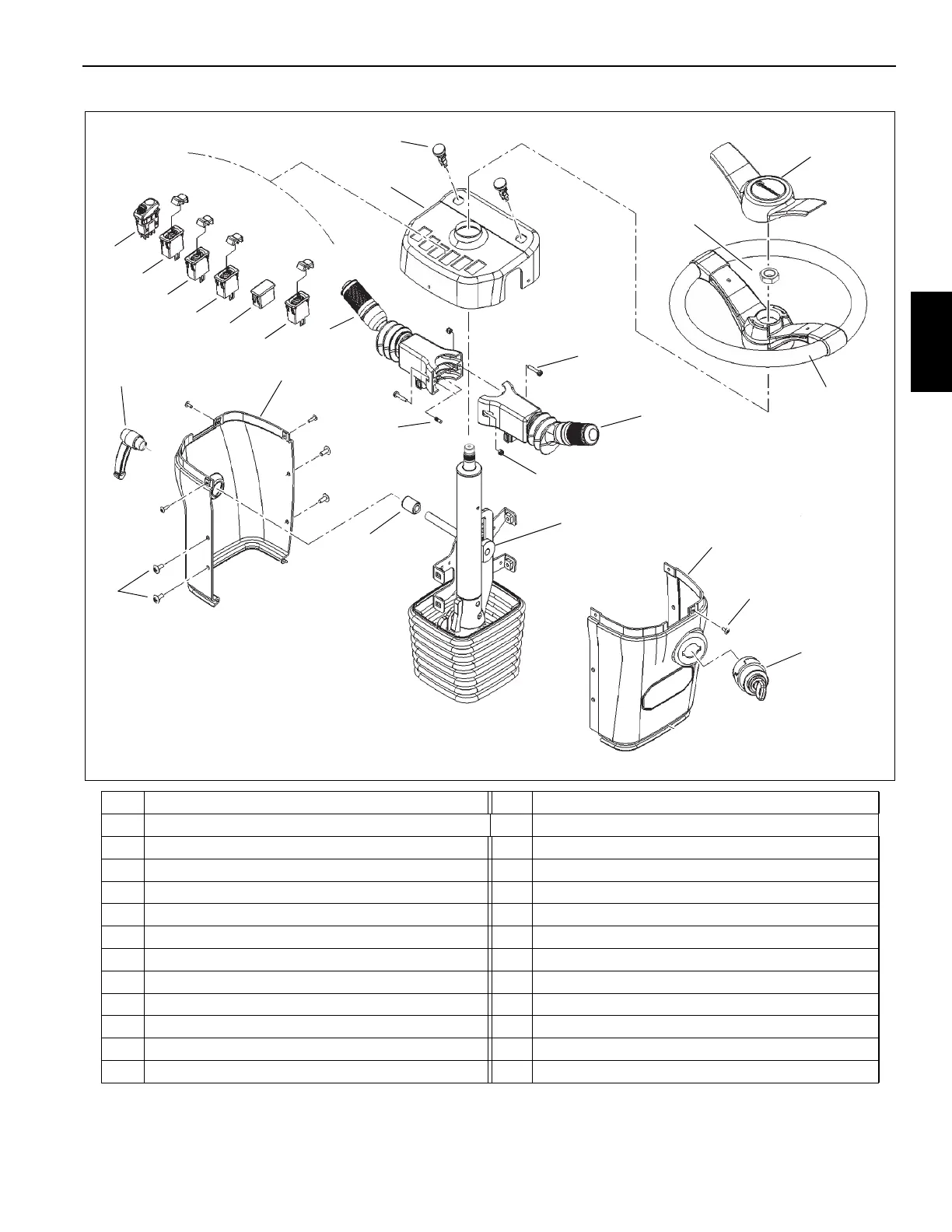

FIGURE 3-11
15
Item Component Item Component
1 Dashboard Cover 13 Spacer
2 Turn Signal Indicator 14 M6 Button Head Screw
3 Steering Wheel Cap 15 Lock Handle
4 Steering Wheel Nut 16 Left Side Cover
5 Steering Wheel 17 Locking Pin
6 Screw 18 Turn Signal, Lights, Wiper Switch
7 Three-Speed Transmission Shift Switch 19 Engine Idle/Deceleration Switch
8 Locknut 20 Switch Blank
9 Column Assembly 21 Hazard On/Off Switch
10
Right Side Cover 22 2WD/4WD Switch
11 M4 Button Head Screw 23 Headlight Switch
12 Ignition Key Switch Assembly 24 Parking Brake Switch Assembly
