BOOM GRT8100 SERVICE MANUAL
4-48
Published 3/26/2018, Control # 596-05

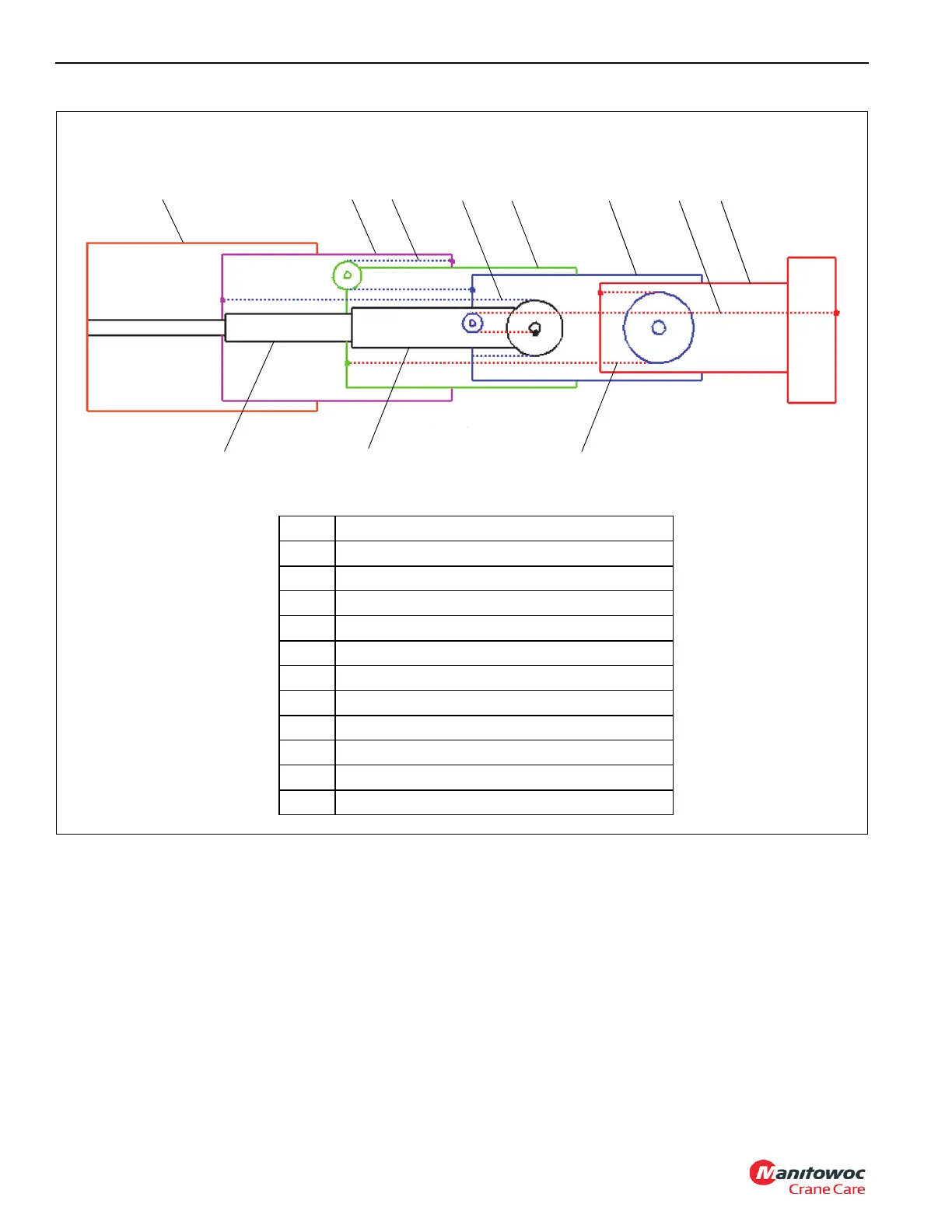

FIGURE 4- 100
8804-61
1234
67
8
9
10 11
Item Description
1 Base Section
2 tele 1
3 tele 2
4 tele 3
5 tele 4
6 Telescope Cylinder - 1st Stage
7 Telescope Cylinder - 2nd Stage
8 Tele 3 Extend Cables
9 Tele 4 Extend Cables
10 Tele 3 Retract Cables
11 Tele 4 Retract Cables
