7-3
GRT8100 SERVICE MANUAL POWER TRAIN
Published 3/26/2018, Control # 596-05
3. Remove lifting device.
4. Connect all lines and tubing to the engine, torque con-
verter, and all other components in accordance with
identification marks made during removal.
5. Apply a moderate coat of Permatex® Type No. 2 to the
male hose adapter and install the hydraulic hoses. Do
not apply sealant to the inside of the hydraulic hose, and
push it onto the male adapter. This can result in excess
sealant being pushed ahead of the male adapter and
being exposed to the hydraulic oil.
6. Install radiator. Refer to Radiator Removal and Installa-
tion, page 7-19. Connect all hoses and electrical har-
nesses to the radiator as tagged during removal.
7. Connect drive shafts between transmission/torque con-
verter and axles. Refer to Drive Shafts, page 7-23.
8. Install hood assembly. Install pump cover.
9. Attach fuel filter and engine lubrication filter to the frame.
Connect battery cables and engine electrical harness
connector in accordance with identification marks made
during removal.
10. Connect electrical wiring to the hourmeter as tagged
during removal.
11. Connect air filter tubing at engine and air filter. Connect
exhaust tubing to engine and muffler. On Tier 4 engines,
replace exhaust tube gaskets with new ones.
12. Install hood top door assembly.
13. Service transmission, engine lubrication system, and
engine cooling system.
14. Start engine. Check all hoses and fittings for leaks.
Recheck all fluid levels.
Engine Drive Belts
Proper operation of engine belt-driven components such as
alternator, fan and water pump depend on proper condition
and tension of the engine drive belt.
NOTE: Belt tension is maintained with an automatic belt
tension device.
The engine drive belt should be inspected visually on a daily
basis. Inspect drive belt should for cracks, frayed areas, and
glazed or shiny surfaces (see Figure 7-3). A drive belt that is
glazed or shiny indicates belt slippage.
Engine drive belt damage can be caused by various factors
such as incorrect tension, incorrect belt size, misaligned
engine pulleys, incorrectly installed belt, or by oil, grease, or
hydraulic fluid on the belt.
Refer to engine manufacturer’s manual for special tools or
belt tension specifications.
CAUTION
Do not apply sealant to inside of hydraulic suction hoses.
OK
OK
OK

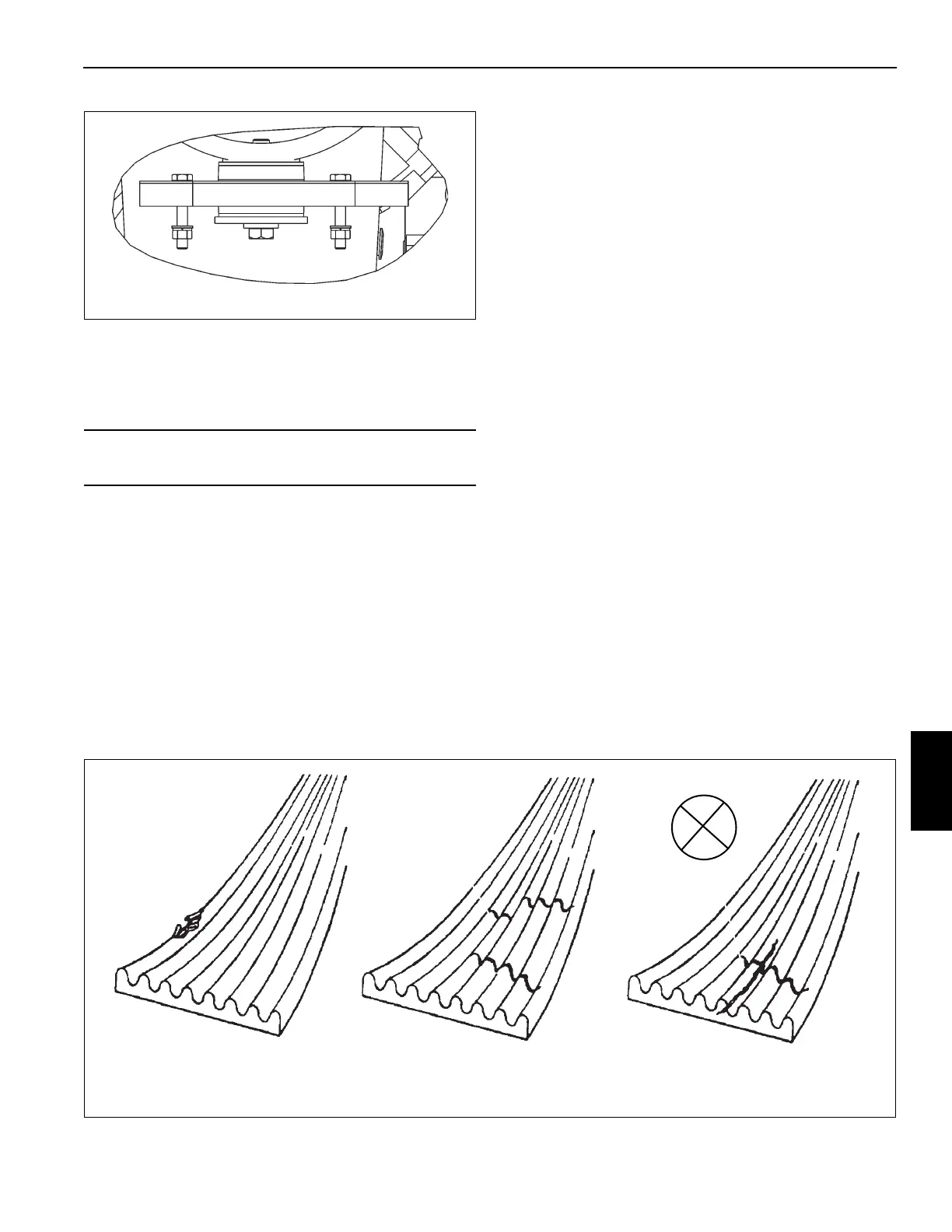

FIGURE 7-3
Missing Material
Traverse Cracks
Longitudinal Cracks Intersecting with Transverse
Cracks must be Replaced
