If the initial restriction on a new or clean filter reads above the
maximum allowed for the engine, check the following items.
1. Ensure the air cleaner inlet is not plugged.
2. Inspect the air cleaner outlet to be sure it is not plugged
by paper, rags, etc.
3. Ensure the correct size connections are used between
the air cleaner and the engine.
4. Ensure all inlet accessories are the correct size and are
not plugged by any foreign object.
FIGURE 7-5
1 Air Cleaner
2 Service Indicator
3 Clamp
4 Reducer
5 Clamp
6 Tube
7 Muffler Clamp
8 Elbow
9 T-bolt Clamp
10 Muffler Clamp
11 Air Intake Tube
12 Elbow
13 Air Inlet Tube
14 Adapter

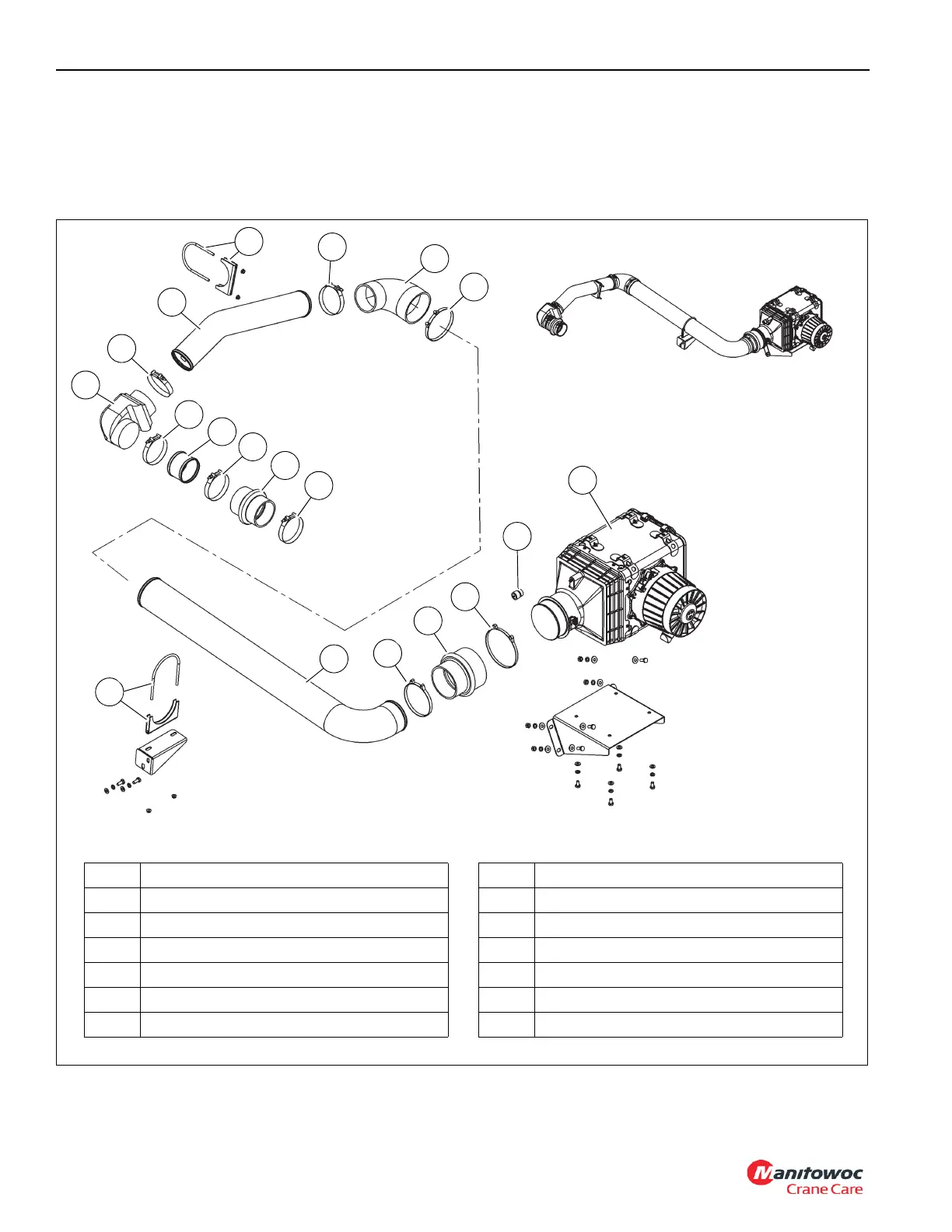

Air Intake Assembly - Tier 3
