HYDRAULIC SYSTEM GRT8100 SERVICE MANUAL
2-10
Published 3/26/2018, Control # 596-05

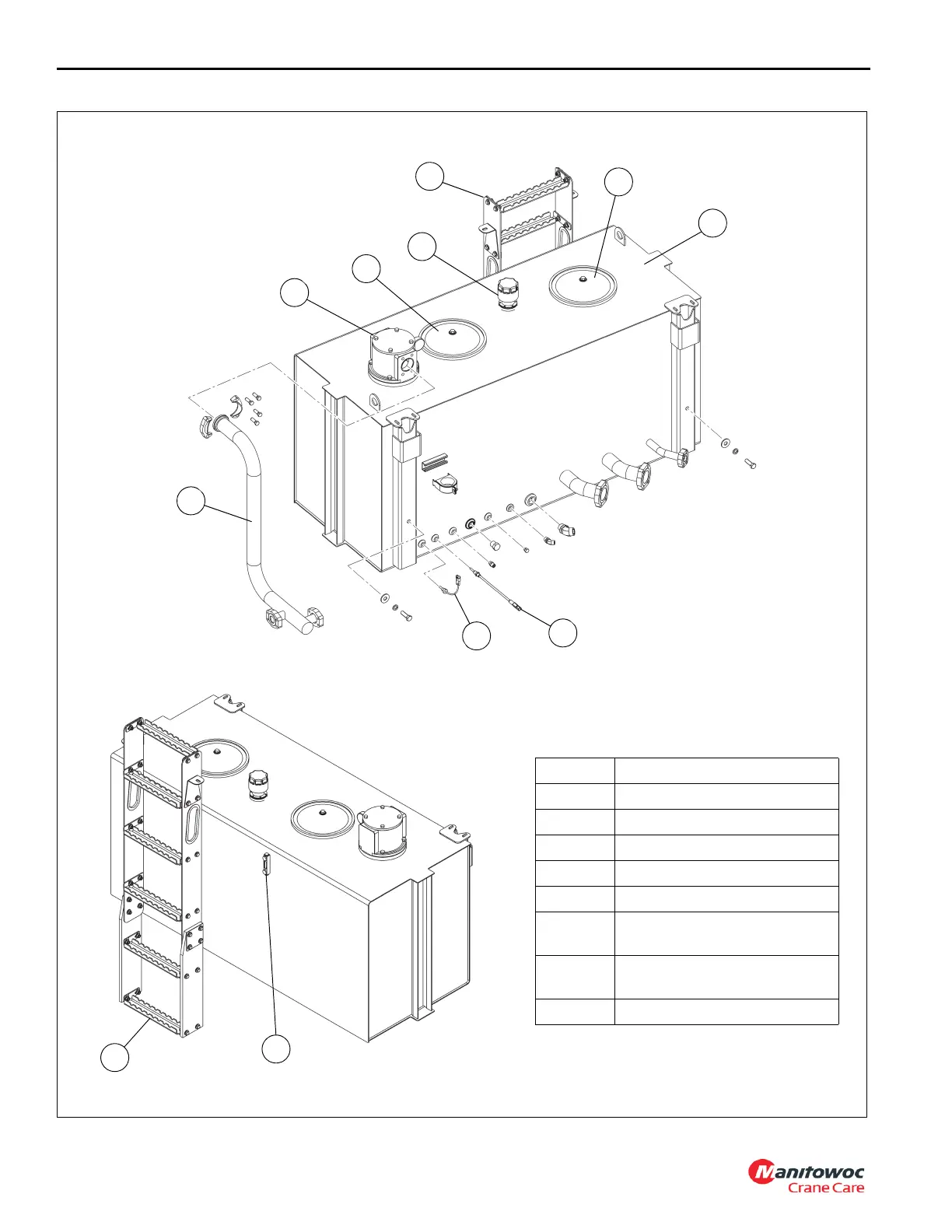

FIGURE 2-1
8804-73
1 Return Hose
2 Return Filter
3 Cover
4 Fill Cap/Breather
5Step
6 Hydraulic Tank
7
Thermistor (200°F) - High Oil
Temp. Indicator Light
8
Temperature Switch (120°F) -
Oil Cooler Fan On/Off
9 Oil Level Gauge
8804-79
2
1
3
5
6
4
7
8
9
5
3
