Manitowoc Grove GRT8100

2-25
GROVE
GRT8100 SERVICE MANUAL HYDRAULIC SYSTEM
2
Published 3/26/2018, Control # 596-05

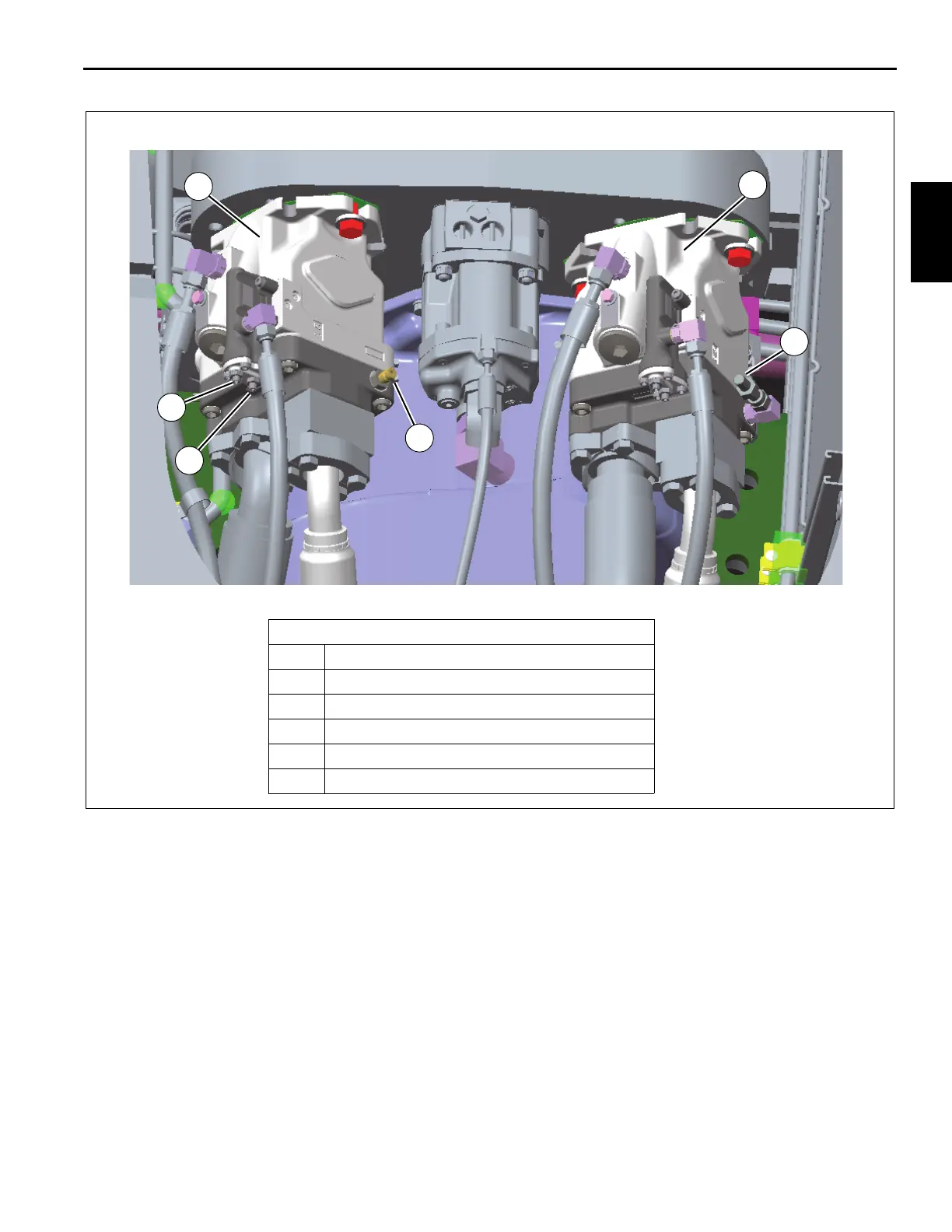

FIGURE 2-5
8804-62
Piston Pumps
1 Cut-off pressure adjustment screw
2 Differential pressure adjustment screw
3 Piston pump #1
4 Pump #1 gauge port
5 Piston pump #2
6 Pump #2 gauge port
2
1
3
4
5
6
