• DOK-DIAX02-DDS02.1*ANA-ANW1-EN-E1,44 • 12.96
19

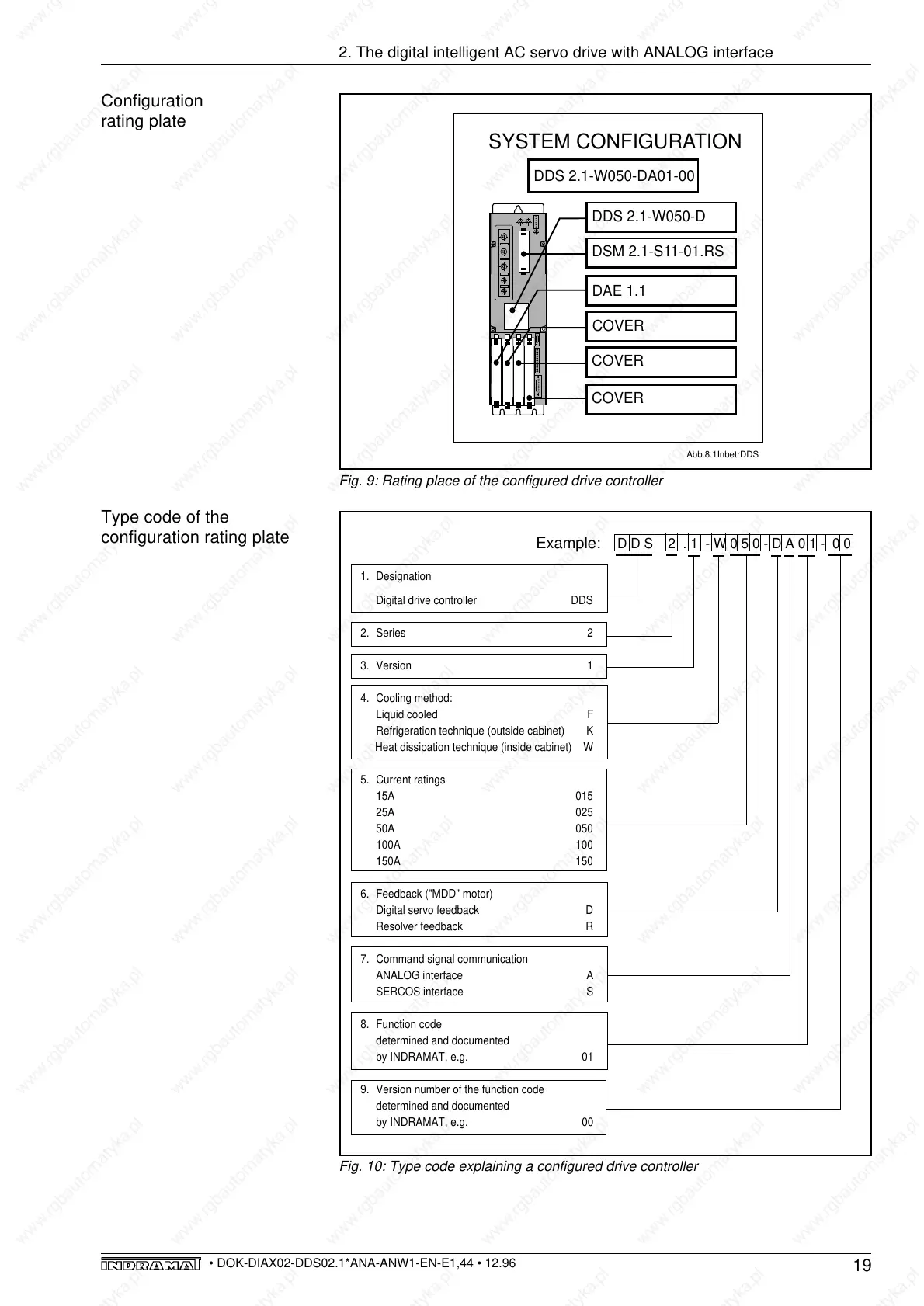

Configuration
rating plate
Fig. 9: Rating place of the configured drive controller
SYSTEM CONFIGURATION
DDS 2.1-W050-DA01-00
DDS 2.1-W050-D
DSM 2.1-S11-01.RS
DAE 1.1
COVER
COVER
COVER
Abb.8.1InbetrDDS
Type code of the
configuration rating plate
D D S 2 . 1 - W 0 5 0 - D A 0 1 - 0 0
Example:
1. Designation
Digital drive controller DDS
2. Series 2
3. Version 1
4. Cooling method:
Liquid cooled F
Refrigeration technique (outside cabinet) K
Heat dissipation technique (inside cabinet) W
5. Current ratings
15A 015
25A 025
50A 050
100A 100
150A 150
6. Feedback ("MDD" motor)
Digital servo feedback D
Resolver feedback R
7. Command signal communication
ANALOG interface A
SERCOS interface S
8. Function code
determined and documented
by INDRAMAT, e.g. 01
9. Version number of the function code
determined and documented
by INDRAMAT, e.g. 00
Fig. 10: Type code explaining a configured drive controller
2. The digital intelligent AC servo drive with ANALOG interface
