20
2. The digital intelligent AC servo drive with ANALOG interface
System configuration
DA 01

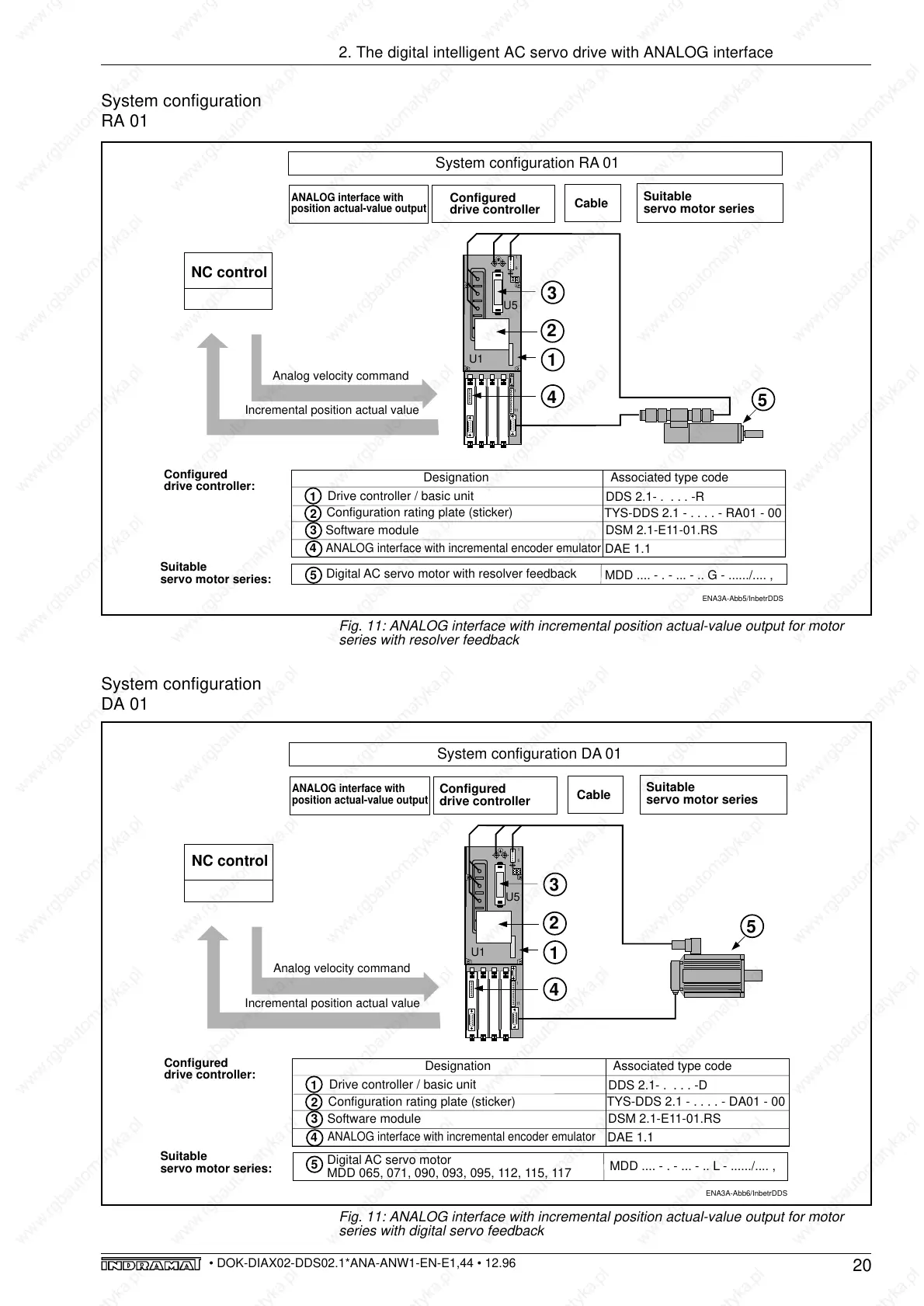

Fig. 11: ANALOG interface with incremental position actual-value output for motor
series with digital servo feedback
System configuration
RA 01
Fig. 11: ANALOG interface with incremental position actual-value output for motor
series with resolver feedback
ENA3A-Abb6/InbetrDDS
Designation Associated type code
Drive controller / basic unit
Software module
TYS-DDS 2.1 - . . . . - DA01 - 00
DDS 2.1- . . . . -D
Configured
drive controller:
3
4
5
1
2
Configuration rating plate (sticker)
ANALOG interface with incremental encoder emulator
DSM 2.1-E11-01.RS
DAE 1.1
Suitable
servo motor series
1
6
1
11
Analog velocity command
Incremental position actual value
2
1
3
4
U5
U1
Configured
drive controller
NC control
Cable
ANALOG interface with
position actual-value output
5
System configuration DA 01
Digital AC servo motor
MDD 065, 071, 090, 093, 095, 112, 115, 117
Suitable
servo motor series:
MDD .... - . - ... - .. L - ....../.... ,
ENA3A-Abb5/InbetrDDS
Designation Associated type code
Drive controller / basic unit
Software module
TYS-DDS 2.1 - . . . . - RA01 - 00
DDS 2.1- . . . . -R
Configured
drive controller:
3
4
5
1
2
Configuration rating plate (sticker)
ANALOG interface with incremental encoder emulator
DSM 2.1-E11-01.RS
DAE 1.1
Suitable
servo motor series
1
6
1
11
Analog velocity command
Incremental position actual value
2
1
3
4
U5
U1
Configured
drive controller
NC control
Cable
ANALOG interface with
position actual-value output
5
System configuration RA 01
Digital AC servo motor with resolver feedback
MDD .... - . - ... - .. G - ....../.... ,
Suitable
servo motor series:
