2. The digital intelligent AC servo drive with ANALOG interface
Rating plate
Drive controller
Basic unit
DDS 2.1-W025-D
247203 K42/92
SN247203-01073 A04
Type designation
Bar code
Serial number
Status as-delivered
Shipment
date
Article
No.

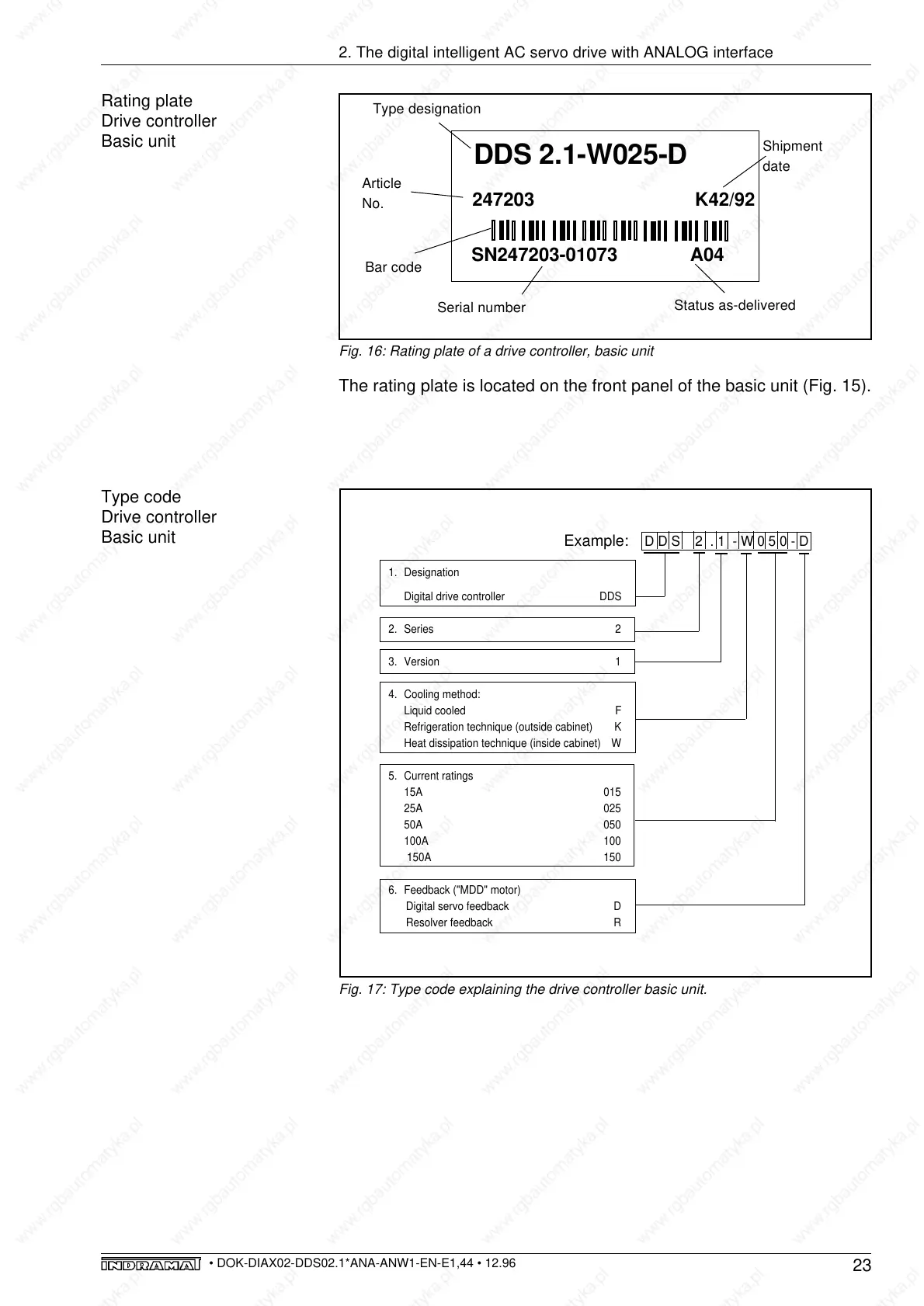

Fig. 16: Rating plate of a drive controller, basic unit
The rating plate is located on the front panel of the basic unit (Fig. 15).
D D S 2 . 1 - W 0 5 0 - D Example:
1. Designation
Digital drive controller DDS
2. Series 2
3. Version 1
4. Cooling method:
Liquid cooled F
Refrigeration technique (outside cabinet) K
Heat dissipation technique (inside cabinet) W
5. Current ratings
15A 015
25A 025
50A 050
100A 100
150A 150
6. Feedback ("MDD" motor)
Digital servo feedback D
Resolver feedback R
Type code
Drive controller
Basic unit
Fig. 17: Type code explaining the drive controller basic unit.
