Type code
Command communication
module
Example:

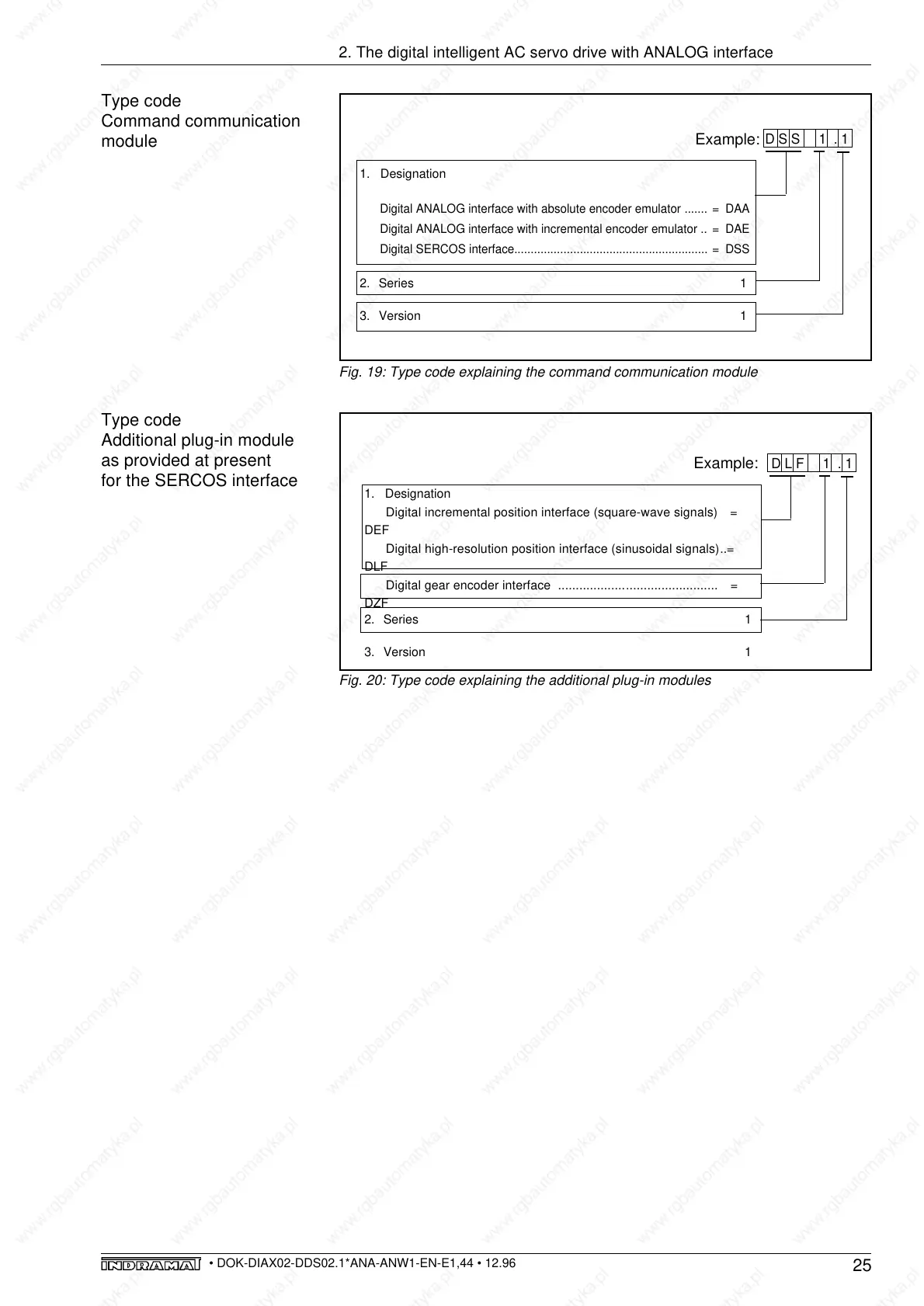

Fig. 19: Type code explaining the command communication module
2. The digital intelligent AC servo drive with ANALOG interface
D S S 1 . 1
1. Designation
Digital ANALOG interface with absolute encoder emulator ....... = DAA
Digital ANALOG interface with incremental encoder emulator .. = DAE
Digital SERCOS interface........................................................... = DSS
2. Series 1
3. Version 1
Fig. 20: Type code explaining the additional plug-in modules
Example:
1. Designation
Digital incremental position interface (square-wave signals) =
DEF
Digital high-resolution position interface (sinusoidal signals)..=
DLF
Digital gear encoder interface ............................................. =
DZF
2. Series 1
3. Version 1
D L F 1 . 1
Type code
Additional plug-in module
as provided at present
for the SERCOS interface
