2. The digital intelligent AC servo drive with ANALOG interface
Type code
AC servo motors
MDD 112B-N-015-N2L-130GB0/S000
Example:
1. Designation
2. Motor frame size
3. Motor overall length
4. Frame design
5. Rated speed– 1500 rpm
6. Vibration severity
7. Motor version
8. Feedback RSF G
RSF + IDG K
DSF L
DSF + MTG M
9. Spigot diameter
10. Drive shaft
11. Installation position of power plug
12. Holding brake
without holding brake 0
with holding brake 14,0 Nm 1
with holding brake 40,0 Nm 2
with holding brake 60,0 Nm 3
13. Special version
For further details please refer to the relevant motor documentation.

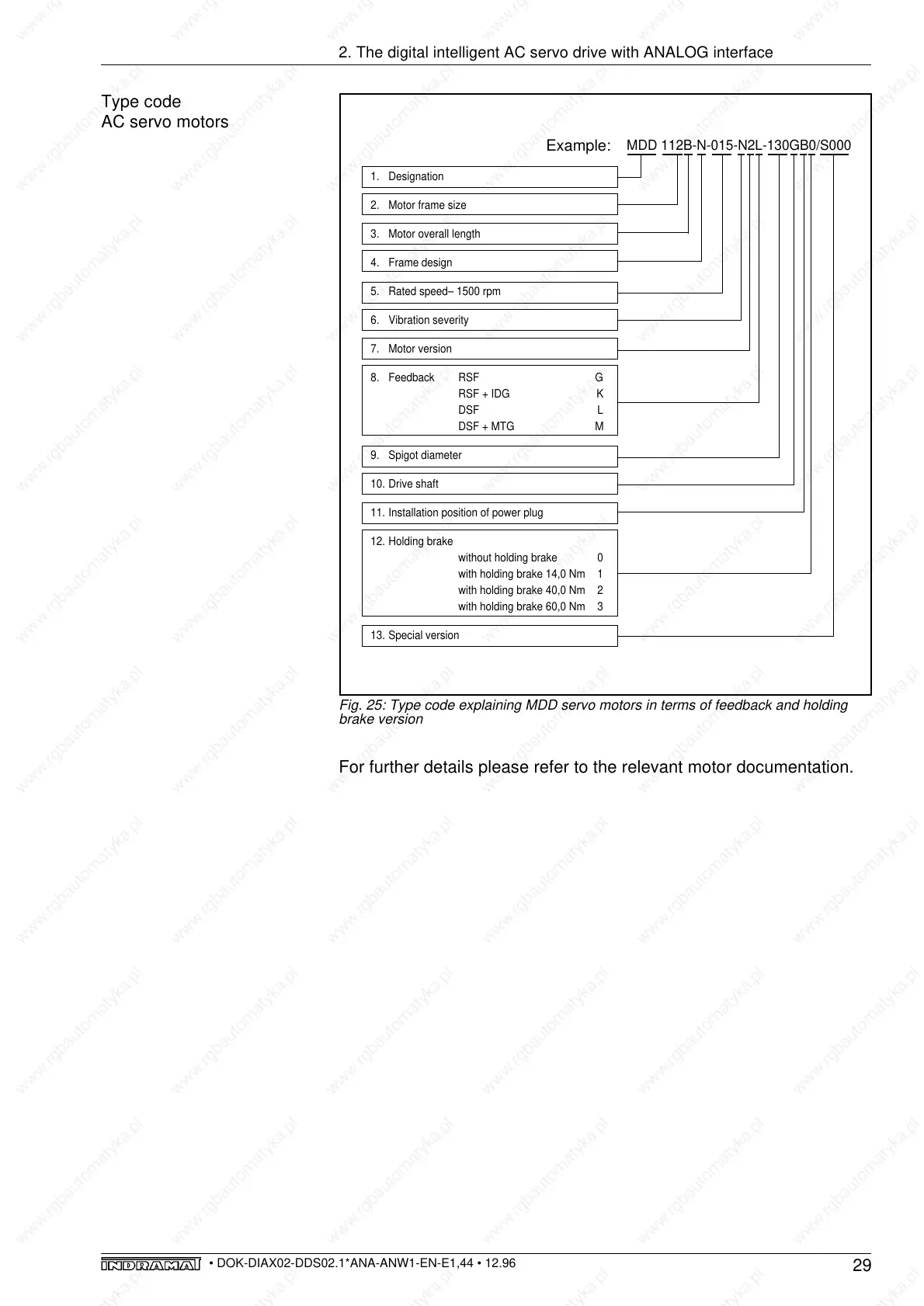

Fig. 25: Type code explaining MDD servo motors in terms of feedback and holding
brake version
