• DOK-DIAX02-DDS02.1*ANA-ANW1-EN-E1,44 • 12.96
30
Rating plate
MDD servo motors

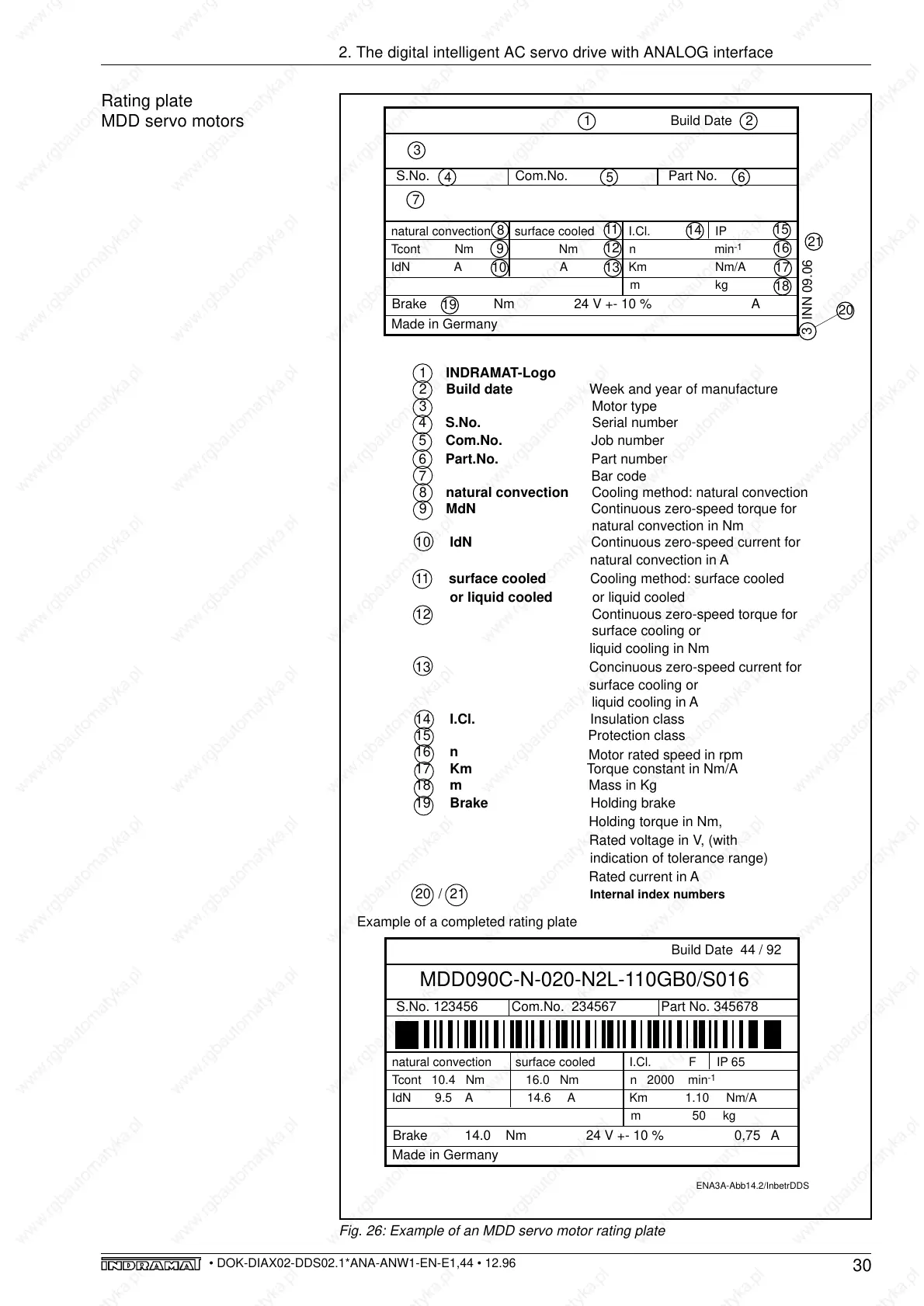

Fig. 26: Example of an MDD servo motor rating plate
ENA3A-Abb14.2/InbetrDDS
Example of a completed rating plate
Build Date
S.No. Com.No. Part No.
natural convection surface cooled I.Cl. IP
Tcont Nm Nm n min
-1
IdN A A Km Nm/A
m kg
Brake Nm 24 V +- 10 % A
Made in Germany
INN 09.06
3
1 2
3
4 5 6
7
21
20
19
8
9
10
11
12
13
14
15
16
17
18
Build Date 44 / 92
S.No. 123456 Com.No. 234567 Part No. 345678
natural convection surface cooled I.Cl. F IP 65
Tcont 10.4 Nm 16.0 Nm n 2000 min
-1
IdN 9.5 A 14.6 A Km 1.10 Nm/A
m 50 kg
Brake 14.0 Nm 24 V +- 10 % 0,75 A
Made in Germany
MDD090C-N-020-N2L-110GB0/S016
1 INDRAMAT-Logo
2 Build date Week and year of manufacture
3 Motor type
4 S.No. Serial number
5 Com.No.
Job number
6 Part.No.
Part number
7 Bar code
8 natural convection Cooling method: natural convection
9 MdN Continuous zero-speed torque for
natural convection in Nm
10 IdN Continuous zero-speed current for
natural convection in A
11 surface cooled
Cooling method: surface cooled
or liquid cooled
or liquid cooled
12 Continuous zero-speed torque for
surface cooling or
liquid cooling in Nm
13
Concinuous zero-speed current for
surface cooling or
liquid cooling in A
14 I.Cl. Insulation class
15 Protection class
16 n
Motor rated speed in rpm
17 Km Torque constant in Nm/A
18 m Mass in Kg
19 Brake
Holding brake
Holding torque in Nm,
Rated voltage in V, (with
indication of tolerance range)
Rated current in A
20 / 21
Internal index numbers
2. The digital intelligent AC servo drive with ANALOG interface
