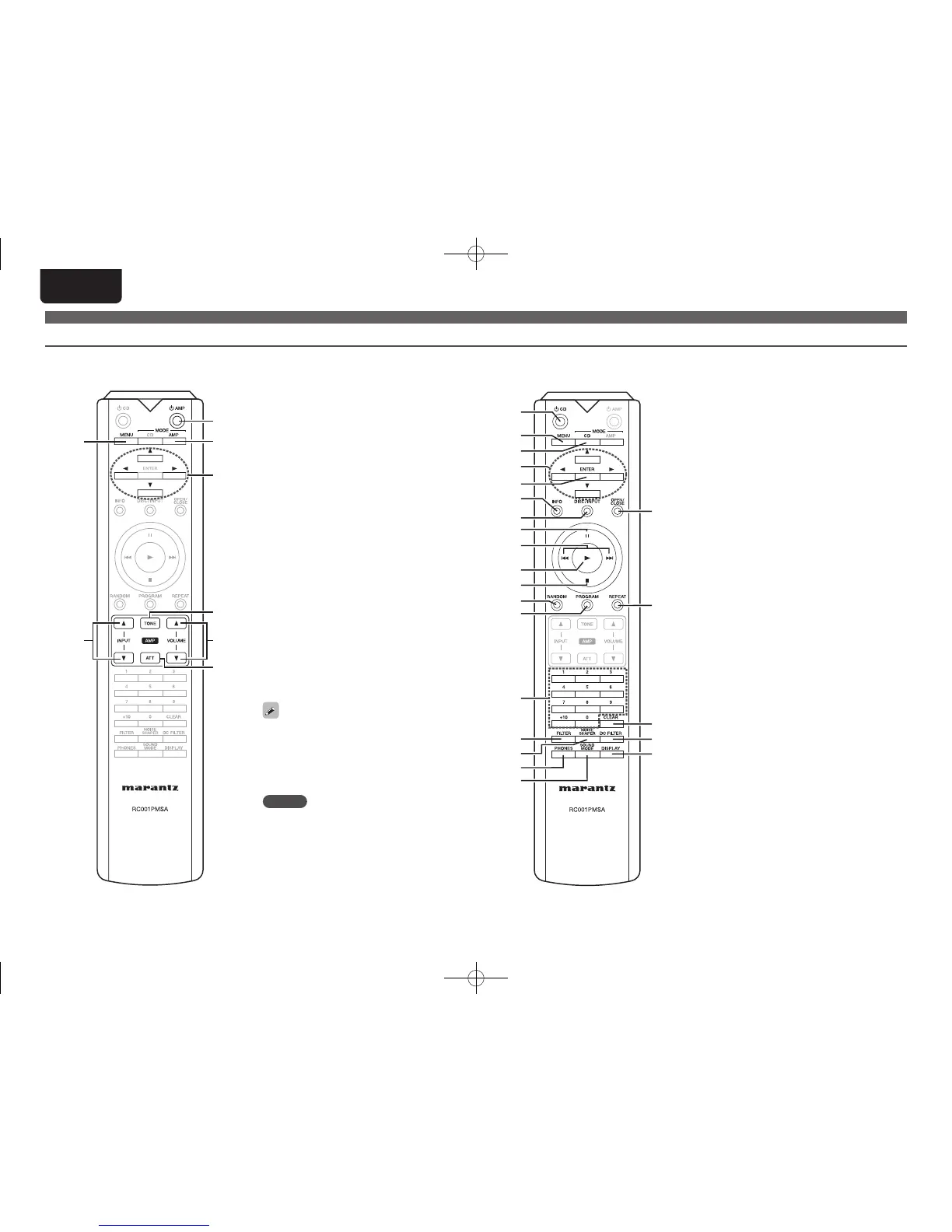

Remote control unit
n Buttons for amplifier
n Buttons for Super Audio CD player
q
e
r
w
y
u
i
t
q MENU button
Thisdisplaysthevolumebalance
adjustmentmenu(vpage17).
w Input source select buttons (INPUT df)
Thisselectstheinputsource
(vpage16).
e Amplifier power button (X AMP)
Thisturnsthepoweron/o(standby)
(vpage16).
r Remote control mode button
(AMP MODE)
Thisswitchestheremotecontrolto
ampliercontrolmode.
t Cursor buttons (df0 1)
Thisadjuststhevolumebalance
outputfromtheleftandrightspeakers
(vpage17).
y Tone control button (TONE)
Thisturnsthetonecontrolon/o
(vpage17).
u Volume control buttons (VOLUME df)
Thisadjuststhevolumelevel
(vpage16).
i Attenuator button (ATT)
Thismutesthevolume(vpage17).
•Thesuppliedremotecontrolcanbeused
tocontrolMarantzIntegratedAmplierand
MarantzSuperAudioCDplayer.
•Whenusing this remotecontrol,also refer
to the operating instructions of the other
devices.
NOTE
The remote control may not operate some
products.
q
Q6
Q7
w
e
r
t
y
u
i
o
Q0
Q1
Q2
Q3
Q4
Q5
Q8
Q9
W0
W1
W2
W3
Part names and functions
q Super Audio CD player power button
(X CD)
w MENU button
e Remote control mode button
(CD MODE)
r Cursor buttons (df0 1)
t ENTER button
y Information display button (INFO)
u Input source select buttons
(DISC/INPUT)
i Pause button (3)
o Skip buttons (8, 9)
Q0 Playback button (1)
Q1 Stop button (2)
Q2 RANDOM button
Q3 PROGRAM button
Q4 Number buttons (0 – 9, +10)
Q5 FILTER button
Q6 NOISE SHAPER button
Q7 PHONES button
Q8 SOUND MODE button
Q9 Disc tray open/close button
(OPEN/CLOSE)
W0 REPEAT button
W1 CLEAR button
W2 DC FILTER button
W3 DISPLAY button
1.PM14S1N_ENG_Final_0708.indd 6 2013/07/11 19:14:04

Marantz PM-14S1 Specifications

General

Receiver type	-
Frequency range	5 - 100000 Hz
Pre-out connectivity	Yes
Audio output channels	2.0 channels
Total Harmonic Distortion (THD)	0.02 %
Dynamic power per channel (4 Ohm)	140 W
Dynamic power per channel (8 Ohm)	90 W
Power output per channel (20-20KHz@8 Ohm)	- W
Headphone outputs	1
Headphone connectivity	6.3 mm
Ethernet LAN	No
Display	LCD
Product color	Gold
Apple docking compatibility	Not supported
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.2 W
Power consumption (typical)	220 W
Cables included	AC

Weight and Dimensions

Depth	453 mm
Width	440 mm
Height	123 mm
Weight	18500 g
