12
ENGLISH

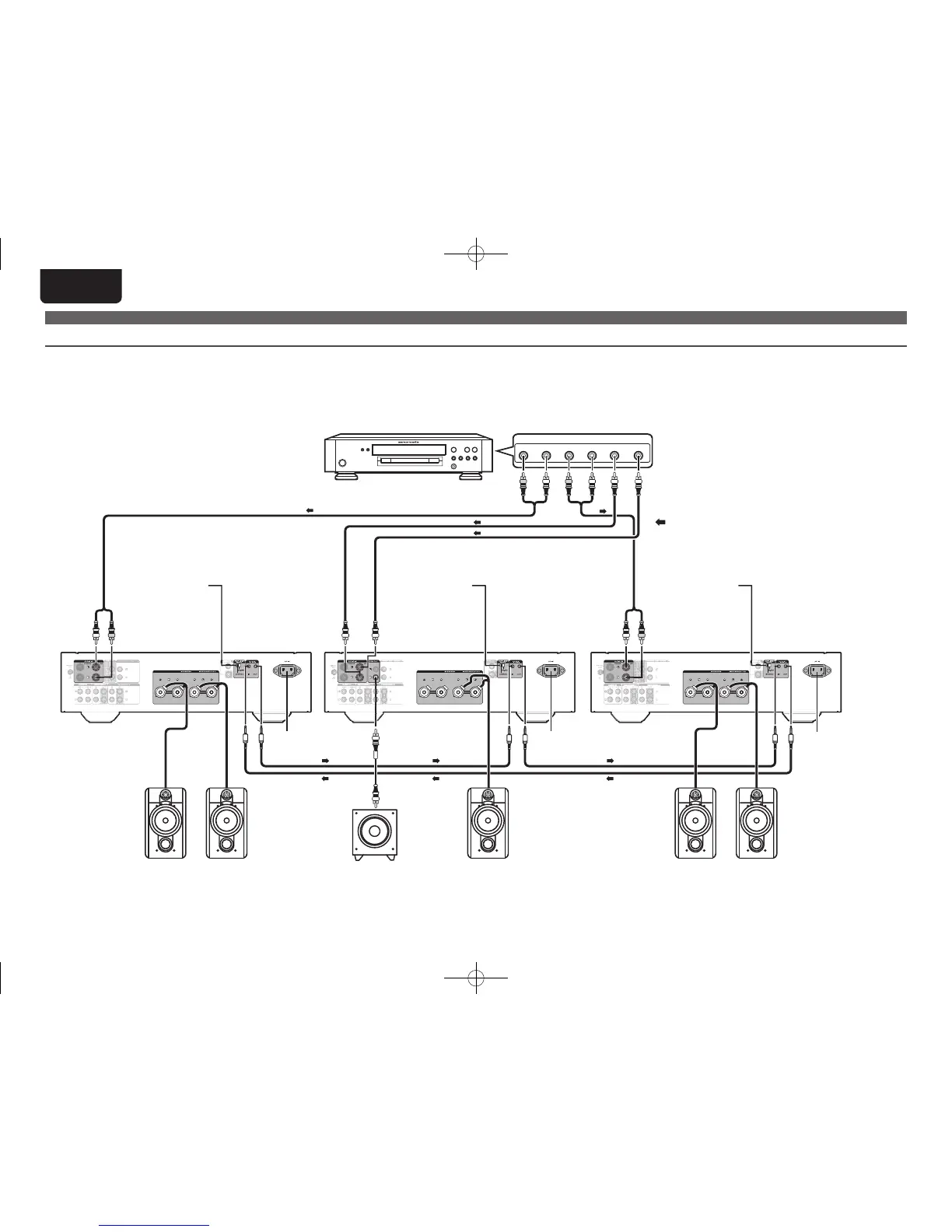

Connection for 5.1 multi-channel playback
ThethreeunitsareconnectedusingF.C.B.S.FortheF.C.B.Sconnection,prepare3audioconnectioncables,andrefertoF.C.B.S.(vpage10).
Connecttheoutputsofplayersthathave5.1channelanalogoutputstoeachofthethreeunits.
Ifusinganactivesubwoofer,seetheowner’smanualthatcamewiththesubwooferforfurtherinstructions.
SettheIDnumbersforthethreeampliersasexplainedinHowtosetIDnumberforF.C.B.S.(vpage18).
•WhentheID1unitisoperated,ID2andID3unitswilloperateinsync.
FRONT R FRONT L SURROUND R
MULTI CHANNEL AUDIO OUT
SURROUND L SUB-WOOFER CENTER
•SetSPEAKERbuttononfrontpanelinON
position.
•Setto“STEREO”.
•SetSPEAKERbuttononfrontpanelinONposition.
•Setto“STEREO”.
For front L/R speakers
Set PM-14S1 to ID 1.
For center speaker or
subwoofer
Set PM-14S1 to ID 2.
For surround speakers
Set PM-14S1 to ID 3.
Topower
outlet.
Topower
outlet.
Topower
outlet.
Rchannelfront
speaker
Lchannelfront
speaker
Active
subwoofer
Tolineinput
jack
Frontcenter
speaker
Rchannel
surround
speaker
Lchannel
surround
speaker
Super Audio CD multi-channel player, etc.
•SetSPEAKERbuttononfrontpanelinON
position.
•Setto“STEREO”.
F.C.B.S. connection

:Signalow
1.PM14S1N_ENG_Final_0708.indd 12 2013/07/11 19:14:11

Marantz PM-14S1 Specifications

General

Receiver type	-
Frequency range	5 - 100000 Hz
Pre-out connectivity	Yes
Audio output channels	2.0 channels
Total Harmonic Distortion (THD)	0.02 %
Dynamic power per channel (4 Ohm)	140 W
Dynamic power per channel (8 Ohm)	90 W
Power output per channel (20-20KHz@8 Ohm)	- W
Headphone outputs	1
Headphone connectivity	6.3 mm
Ethernet LAN	No
Display	LCD
Product color	Gold
Apple docking compatibility	Not supported
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.2 W
Power consumption (typical)	220 W
Cables included	AC

Weight and Dimensions

Depth	453 mm
Width	440 mm
Height	123 mm
Weight	18500 g
