Marantz PM-14S1 User Manual

8
ENGLISH

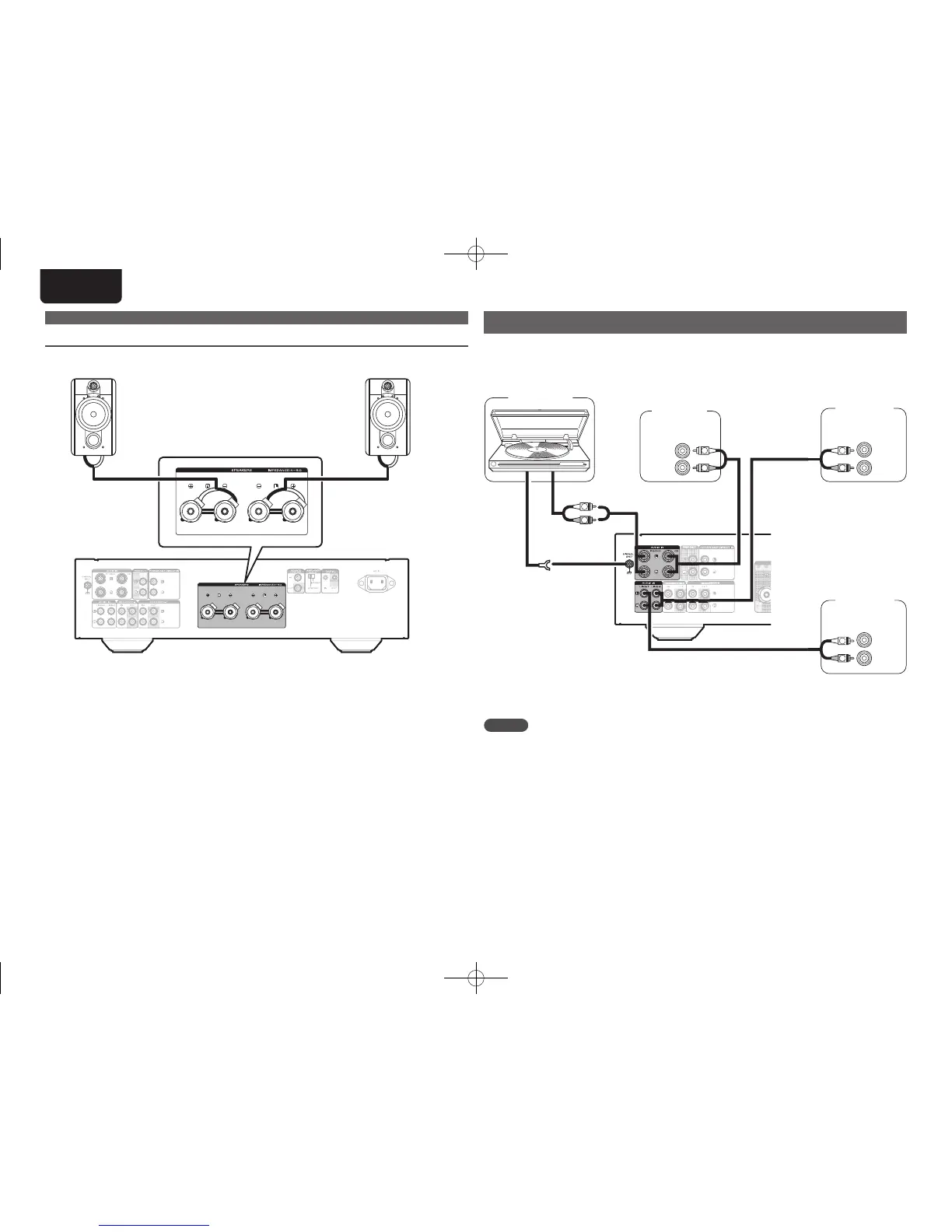

Connecting the speakers
Speaker connections
w q w q
(R) (L)
Connecting players
Youcanconnectturntables,tuners,CDplayersandnetworkaudioplayerstothisunit.
SetphonoequalizerbuttonbythetypeofyourcartridgetobeusedMMorMC.Ifyousetthis
unit’sinputsourceto“PHONO”andyouaccidentallyincreasethevolumewithouthavinga
turntableconnected,youmayhearahumnoisefromthespeakers.
AUDIO OUT
R
L
AUDIO OUT
R
L
AUDIO OUT
R
L
GND
AUDIO
OUT
R
L
R
L
R
L
R
L
Turntable
CD player
Network
Audio
Player
Tuner
NOTE
Thegroundline(SIGNALGND)onthisunitisnotasafetyground.Connectittoreducenoise
whennoiseisexcessive.Notethatdependingontheturntable,connectingthegroundline
mayhavethereverseeectofincreasingnoise.Inthiscase,itisnotnecessarytoconnectthe
groundline.
1.PM14S1N_ENG_Final_0708.indd 8 2013/07/11 19:14:07

Marantz PM-14S1 Specifications

General

Receiver type	-
Frequency range	5 - 100000 Hz
Pre-out connectivity	Yes
Audio output channels	2.0 channels
Total Harmonic Distortion (THD)	0.02 %
Dynamic power per channel (4 Ohm)	140 W
Dynamic power per channel (8 Ohm)	90 W
Power output per channel (20-20KHz@8 Ohm)	- W
Headphone outputs	1
Headphone connectivity	6.3 mm
Ethernet LAN	No
Display	LCD
Product color	Gold
Apple docking compatibility	Not supported
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.2 W
Power consumption (typical)	220 W
Cables included	AC

Weight and Dimensions

Depth	453 mm
Width	440 mm
Height	123 mm
Weight	18500 g
