Marantz SR9600 - Page 107

155 156
C701 B2
C702 B3
C731 C2
C732 C2
C733 C2
C734 C2
C742 E5
C743 E4
C761 D2
C765 D2
C766 C2
C771 E1
C772 F1
C773 E1
C782 F2
C783 E2
C792 B2
F701 B2
F771 E2
F772 E2
F773 E1
FSR1 B4
GP01 D3
GP01 C2
GP01 C2
GP02 C4
GP03 D2
GP05 B3
GP06 B2
GP07 B3
GP08 D2
J704 C1
J771 E1
Q701 C4
Q702 E4
Q761 D2
Q765 D2
Q771 E2
Q781 E3
R706 C3
R716 B3
R717 D3
R721 D3
R722 D3
R723 D3
R724 D3
R725 D3
R726 D3
R731 C2
R732 C2
R733 C5
R734 C5
R735 C5
R736 C5
R737 C5
R738 D5
R739 D4
R740 D4
R741 E4
R742 C5
R743 D4
R744 D4
R746 A1
R753 D1
R754 D1
R755 D1
R756 D1
R757 D1
R758 D1
R761 D2
R762 D2
R763 D2
R765 D2
R766 D2
R768 B2
R771 E1
R772 E1
R773 E1
R776 D4
R777 D3
R781 E2
R782 E2
R791 B1
X731 C2
C703 B3
C704 B3
C705 B4
C706 B4
C707 B4
C708 B4
C709 B4
C710 B4
C711 C4
C712 C4
C713 C4
C714 D4
C715 D4
C718 C4
C719 D3
C720 C3
C721 D4
C722 C4
C723 C3
C724 C3
C725 C3
C726 C3
C727 B3
C728 B3
C741 D4
C745 E3
C746 A1
C791 B1
D701 D2
J702 A2
J703 D2
Q703 E4
Q741 A1
Q791 B1
R701 B3
R702 B3
R703 B4
R704 B4
R705 D3
R707 C3
R708 C3
R709 C3
R710 B3
R711 B3
R712 B2
R713 B3
R714 B2
R715 B2
R718 C3
R719 D3
R727 C3
R728 C3
R729 B3
R730 D2
R745 A1
R747 A1
R748 A1
R749 A1
R760 A2
R764 B2
R767 B2
R769 B2
R770 B2
R774 B2
R790 D3
R792 B1
R793 B1
R794 A1
R795 A1
R797 A1
R798 B4
R799 B1

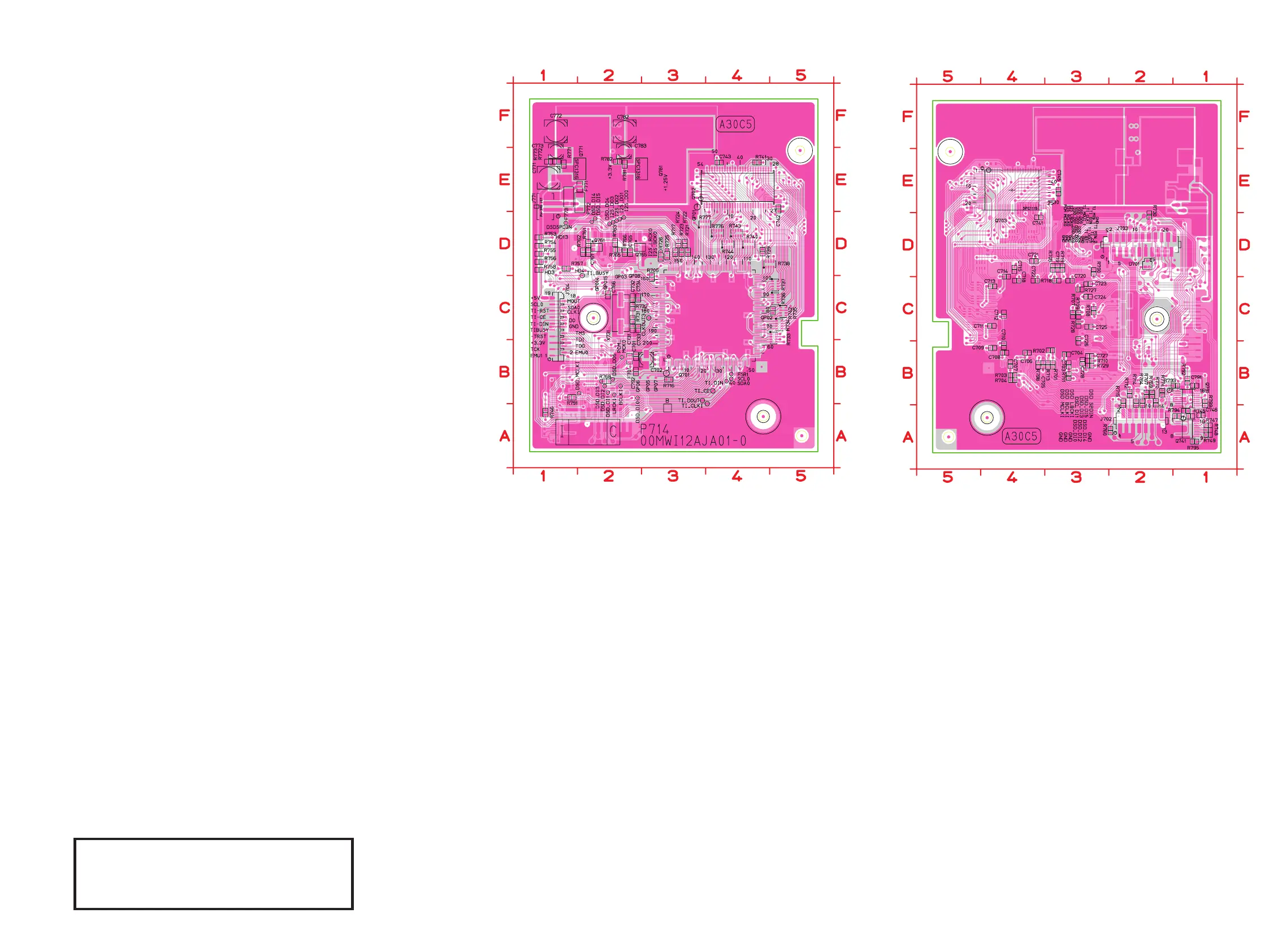

P714A P714B
ᤲȕȪȸҞဋ
ᤲȕȪȸҞဋ
Ҟဋ˄ƚƴƸŴᤲȕȪȸҞဋ 
Sn-Ag-Cu
 ǛဇƠƯƘƩƞƍŵ
Lead-free Solder
When soldering, use the Lead-free Solder (Sn-Ag-Cu).
P714A, P714B
About Q701, QX10 and QX11 :
As for Q701, QX10 and QX11, the center of IC is soldering on the PWB.
When you repair Q701, QX10 and QX11, these parts exchange is impossible.
When you exchange these parts, please exchange by the following PCB ASSY.
Q701 is exchanged by PART NO.88M12AJ610101 (P714 : TI DSP PWB ASSY).
Q701, QX10, QX11
ƴƭƍƯ
ƴƭƍƯ
:
Q701, QX10, QX11
Ƹ
IC
ƷɶځưؕெƴҞဋ˄ƚƞǕƯƍLJƢŵྸ଺ŴᢿԼƷʩƸ
ЈஹLJƤǜŵNjƠƜƷᢿԼǛʩƢǔƱƖƸɦᚡƷؕெܦ঺ԼưʩƠƯƘƩƞƍŵ
Q701
ʩ଺ƸŴ
PART NO. 88M12AJ610101 (P714 : TI DSP PWB ASSY)
ưʩŵ
