Marantz SR9600 - Update MRAC Microprocessor Procedure

48
NECESSARY EQUIPMENT
• Windows PC (With Serial Port)
• RS-232C Cable straight type (9 Pin female - 9 Pin female)
• Update Tool (FDT)
• Update data (00M11AJ499Gxx.mot)
NOTE: xx is a revision number.
CABLE CONNECTION
Disconnect the mains cable from the Unit.
Connect RS-232C on the rear panel of the Unit and Serial
Port of windows PC with RS-232C cable.
Connect the mains cable into the Unit.
THE WRITING SOFTWARE SETUP PROCEDURE
Launch up the writing software.

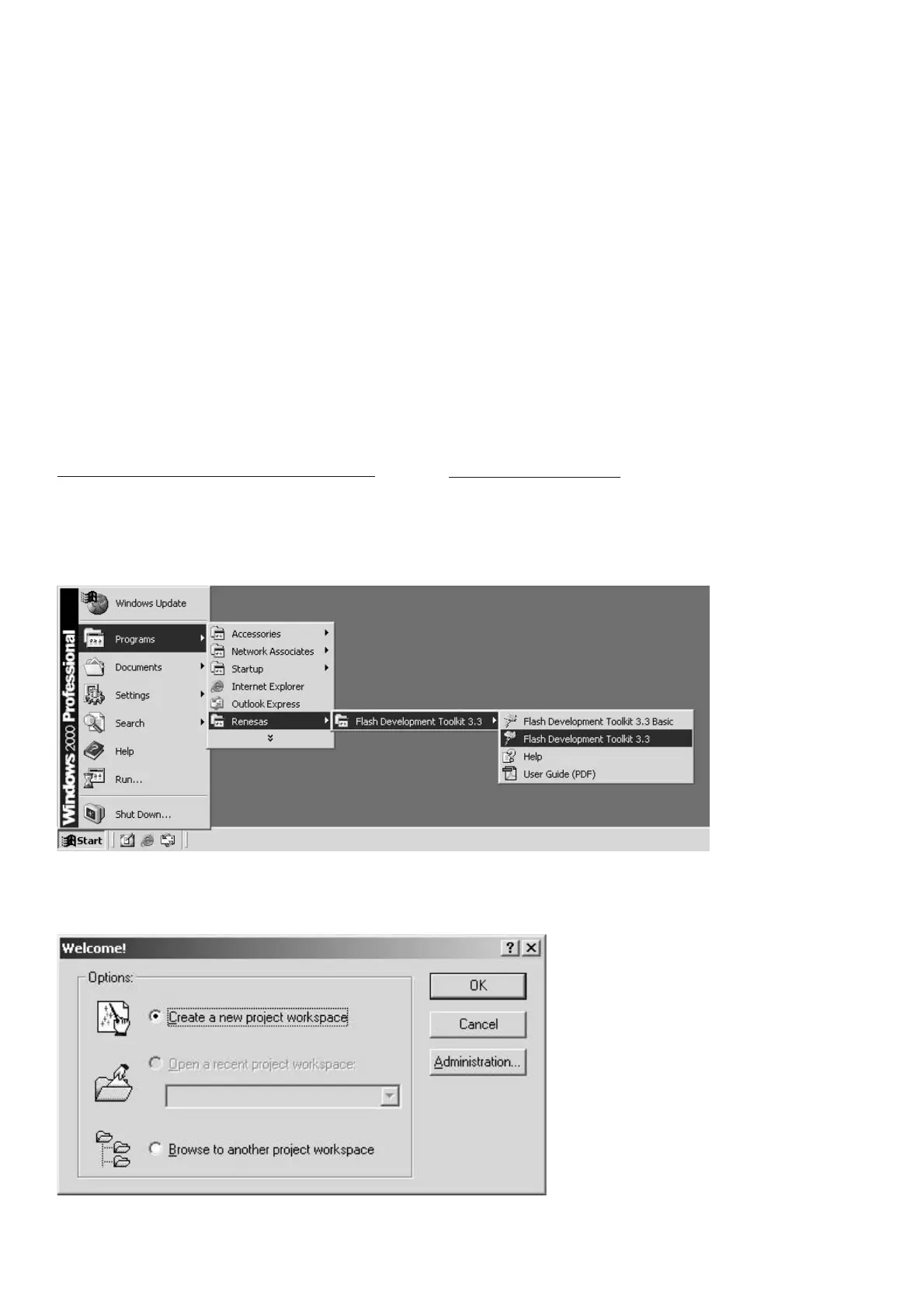

Click Start, Programs, Renesas, Flash Development
Toolkit 3.3 and Flash Development Toolkit 3.3.
Check Create a new project workspace, and click OK.
[D] UPDATE MRAC MICROPROCESSOR PROCEDURE
[MRAC MICROPROCESSOR Ʒ୿ƖƑ૾ඥ ]
࣏ᙲೞ֥
࣏ᙲೞ֥
•
Windows PC (Serial Port ˄Ɩ )
• RS-232C ǹȈȬȸȈDZȸȖȫ (9Pin ȡǹÛ9Pin ȡǹ )
• ୿ƖᡂLjဇǢȗȪDZȸǷȧȳȄȸȫ (FDT)
• ୿ƖᡂLjဇȇȸǿ (00M11AJ499Gxx.mot)
NOTE: xx Ƹો༿ဪӭưƢŵ
DZȸȖȫዓ
DZȸȖȫዓ
ᩓเDZȸȖȫǛஜೞƔǒٳƠLJƢŵ
Windows PC Ʒ Serial Port ƱஜೞƷ RS-232C Port Ǜ
RS-232C DZȸȖȫưዓƠLJƢŵ
ஜೞƴᩓเDZȸȖȫǛዓƠLJƢŵ
୿ƖᡂLjǽȕȈǦǧǢƷᚨܭ
୿ƖᡂLjǽȕȈǦǧǢƷᚨܭ
FDT ǛឪѣƠLJƢŵ
Start ă Programs ă Renesas ă Flash Development
Toolkit 3.3 ă Flash Development Toolkit 3.3. ǛǯȪȃǯƠ
LJƢŵ
Create a new project workspace ƴȁǧȃǯǛλǕŴOK Ǜ
ǯȪȃǯƠLJƢŵ
