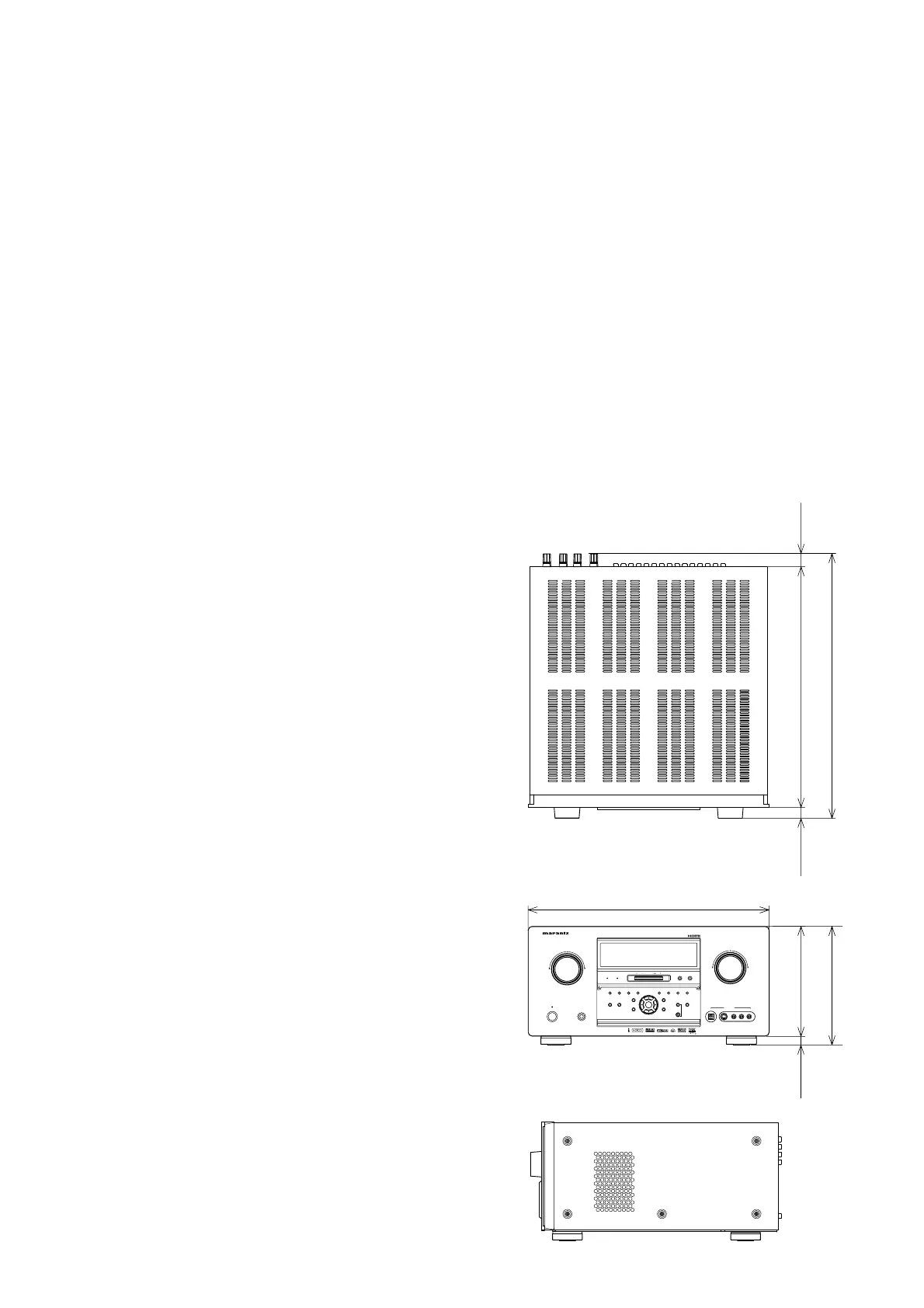

218 mm
(8-5/8 ins.)
18 mm
(3/4 ins.)
200 mm
(7-7/8 ins.)
440 mm (17-5/16 ins.)
20 mm
(13/16 ins.)
23 mm
(15/16 ins.)
440 mm
(17-5/16 ins.)
483 mm
(19-1/16 ins.)
MULTI
SPEAKER
F/PBANDTHXPURE DIRECT UP DOWN TUNING
AUX 1 INPUT
RAUDIO
DIGITAL S-VIDEO
LVIDEO
POWER ON/OFF
VOLUME
UPDOWN
INPUT SELECTOR
PHONES
STANDBY
AV SURROUND RECEIVER SR9600
SURROUND
MIC
ENTER
MENU
PURE DIRECT THX
7.1CH INPUT
MODE AUTO
MULTI
A/B
T-MODE
MEMORY CLEAR
DISPLAY
EXIT
SPEAKERS
MRAC
AUTO TUNE
1. TECHNICAL SPECIFICATIONS
FM TUNER SECTION
Frequency Range ..............................76.0 - 90.0 MHz[/F]
........................87.5 - 108.0 MHz[/N/U]
Usable Sensitivity..............................IHF 1.8 µV/16.4 dBf
Signal to Noise Ratio ................... Mono/Stereo 75/70 dB
Distortion......................................Mono/Stereo 0.2/0.3 %
Stereo Separation.........................................1 kHz 45 dB
Alternate Channel Selectivity.................± 300 kHz 60 dB
Image Rejection.........................................98 MHz 70 dB
Tuner Output Level............. 1 kHz, ± 75 kHz Dev 800 mV
AM TUNER SECTION
Frequency Range .......................... 531 - 1602 kHz [/F/N]
............................. 520 - 1710 kHz [/U]
Signal to Noise Ratio .............................................. 50 dB
Usable Sensitivity.......................................... Loop 400µV
Distortion..................................400 Hz, 30 % Mod. 0.5 %
Selectivity.................................................± 20 kHz 70 dB
AUDIO SECTION
Power Output (20 Hz - 20 kHz/THD=0.08%)
Front L&R .....................................8 ohms 140 W / Ch
Center ..........................................8 ohms 140 W / Ch
Surround L&R ..............................8 ohms 140 W / Ch
Surround Back L&R .....................8 ohms 140 W / Ch
Front L&R .....................................6 ohms 170 W / Ch
Center ..........................................6 ohms 170 W / Ch
Surround L&R ..............................6 ohms 170 W / Ch
Surround Back L&R .....................6 ohms 170 W / Ch
Input Sensitivity/Impedance................200 mV/ 47 kohms
Signal to Noise Ratio
Analog Input / Pure Direct ................................. 105 dB
Frequency Response
Analog Input / Pure Direct .....8 Hz - 100 kHz (± 3 dB)
Digital Input / 96 kHz PCM ..... 8 Hz - 45 kHz (± 3 dB)
VIDEO
Television Format ............................................ NTSC/PAL
Input Level/Impedance............................ 1 Vp-p/75 ohms
Output Level/Impedance......................... 1 Vp-p/75 ohms
Video Frequency Response .........5 Hz to 8 MHz (- 1 dB)
Video Frequency (Component) ...5 Hz to 80 MHz (- 1 dB)
S/N.......................................................................... 60 dB
HDMI
Version Format............................................................ 1.1
GENERAL
Power Requirement .....................AC 100 V 50/60 Hz [/F]
......................... AC 230 V 50 Hz [/N]
......................... AC 120 V 60 Hz [/U]
Power Consumption................................... 600 W (6.5 A)
Weight .................................................... 26 kg (57.3 Ibs)
ACCESSORIES
Remote Control Unit RC3200B...................................... 1
AA-size batteries........................................................... 3
Microphone MC-10 ....................................................... 1
Front AUX Jack Cover................................................... 1
AC Cable....................................................................... 1
FM Antenna ................................................................... 2
FM Antenna Adaptor...................................................... 2
AM Loop Antenna .......................................................... 2
RS232C Cable.............................................................. 1
