Marantz SR9600 - Page 109

159 160
CX01 B6
CX02 B7
CX03 B8
CX04 B8
CX05 D6
CX06 F6
CX07 F6
CX08 D5
CX09 D5
CX10 F4
CX11 F4
CX12 E5
CX13 E3
CX14 E3
CX15 E3
CX16 D3
CX17 D3
CX18 D4
CX19 D4
CX20 D4
CX21 D4
CX22 D3
CX23 D3
CX24 D3
CX25 C3
CX26 C3
CX27 C3
CX28 C3
CX29 C3
CX30 C4
CX31 C3
CX32 C4
CX33 C4
CX34 C4
CX35 C4
CX36 C3
CX37 B3
CX38 C5
CX39 C5
CX40 C5
CX41 C5
CX42 C5
CX43 C5
CX44 D5
CX45 D5
CX46 C8
CX47 C8
CX48 C7
CX49 D6
CX50 D8
CX51 E9
CX52 E9
CX53 E8
CX54 E8
CX55 D8
CX56 D7
CX57 D7
CX58 D8
CX59 D8
CX60 D9
CX61 D9
CX62 D7
CX63 D7
CX64 C7
CX65 C7
CX66 D8
CX67 D8
CX68 D8
DX01 E6
DX02 E4
DX03 D5
DX04 D5
DX05 D5
DX06 E5
DX07 E5
DX08 E5
DX09 E5
DX10 E5
DX11 E3
DX12 E3
DX13 E3
DX14 E3
DX15 E3
DX16 D3
DX17 D3
DX18 D3
DX19 E7
DX20 E7
DX21 E7
DX22 E7
DX23 E7
DX24 E7
DX25 E7
DX26 E8
EX01 F1
EX02 F9
FX01 A7
FX02 A8
JX01 A8
JX02 F5
JX03 F3
JX04 F7
JX05 C1
LX01 E3
LX02 B3
LX03 C8
LX04 D8
LX05 E7
LX06 E7
LX07 E7
LX08 E7
QX01 B7
QX02 B8
QX03 D6
QX04 E6
QX05 E7
QX06 E6
QX07 E4
QX08 E4
QX09 E4
QX10 C4
QX11 D7
QX12 C6
QX13 E9
QX14 E8
QX15 D6
QX16 C2
QX17 C2
QX18 C2
QX19 C2
QX20 C2
QX21 C2
RX01 B6
RX02 B6
RX03 C6
RX04 B8
RX05 B8
RX06 C8
RX07 F6
RX08 F6
RX09 E6
RX10 E6
RX11 E6
RX12 E6
RX13 E6
RX14 D6
RX15 D6
RX16 E6
RX17 D6
RX18 D6
RX19 E6
RX20 E6
RX21 E6
RX22 E6
RX23 F4
RX24 F4
RX25 E4
RX26 E4
RX27 E4
RX28 E4
RX29 E4
RX30 E4
RX31 D3
RX32 D3
RX33 D3
RX34 D3
RX35 C3
RX36 C3
RX37 C3
RX38 C3
RX39 C4
RX40 B4
RX41 B4
RX42 B4
RX43 B4
RX44 B5
RX45 C5
RX47 C5
RX48 C5
RX49 C5
RX50 D5
RX51 D5
RX52 D5
RX53 D6
RX54 D6
RX55 D6
RX56 D6
RX57 E8
RX58 E8
RX59 E8
RX60 E8
RX61 D8
RX62 D7
RX63 D7
RX64 D7
RX65 D7
RX66 D7
RX67 D7
RX68 D7
RX69 D7
RX70 D7
RX71 D7
RX72 D7
RX73 D6
RX74 D7
RX75 E7
RX76 D6
RX77 D3
XX01 C3

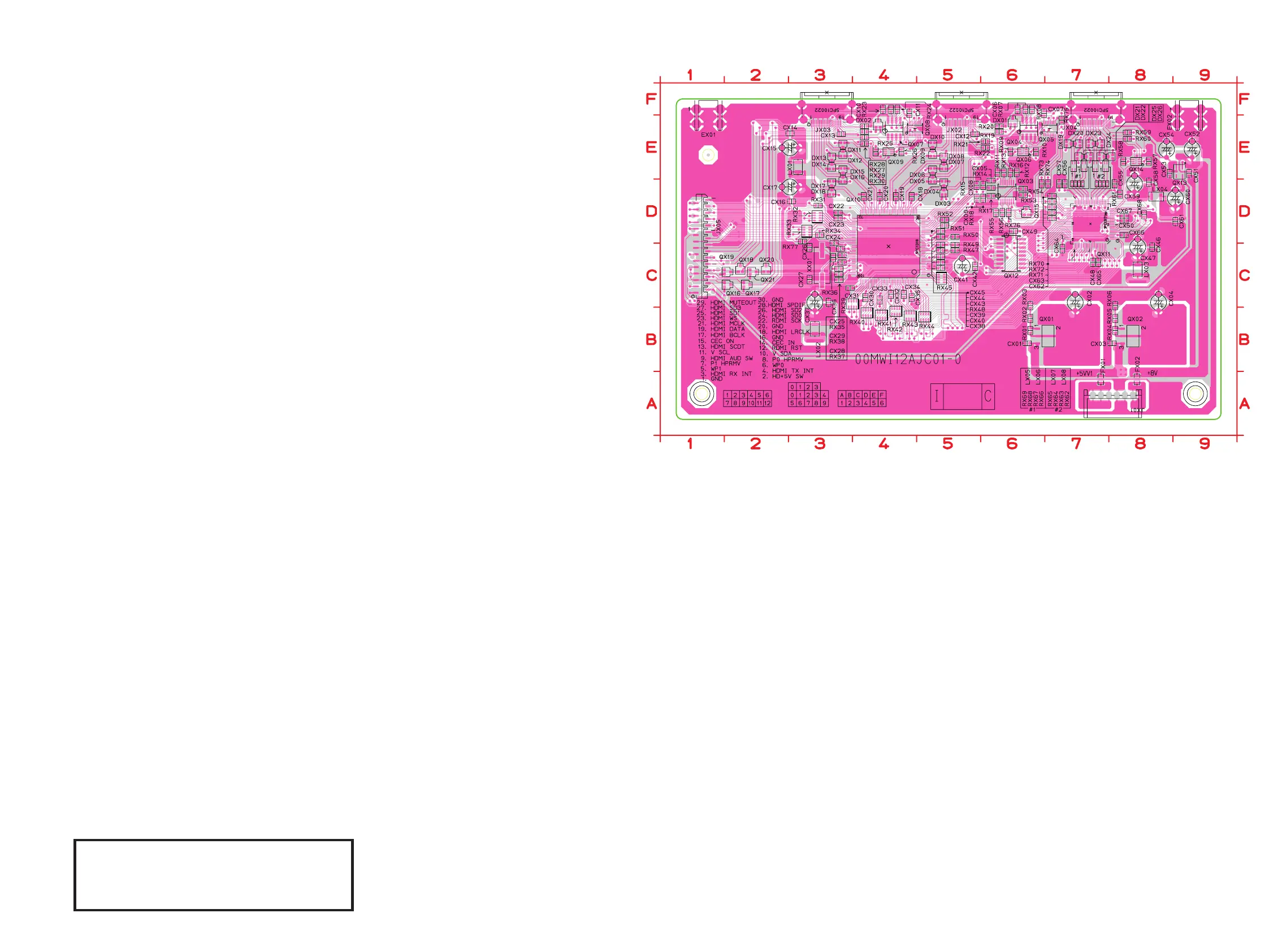

PX14A
ᤲȕȪȸҞဋ
ᤲȕȪȸҞဋ
Ҟဋ˄ƚƴƸŴᤲȕȪȸҞဋ 
Sn-Ag-Cu
 ǛဇƠƯƘƩƞƍŵ
Lead-free Solder
When soldering, use the Lead-free Solder (Sn-Ag-Cu).
PX14A
ƴƭƍƯ
About Q701, QX10 and QX11 :
As for Q701, QX10 and QX11, the center of IC is soldering on the PWB.
When you repair Q701, QX10 and QX11, these parts exchange is impossible.
When you exchange these parts, please exchange by the following PCB ASSY.
QX10 and QX11 are exchanged by PART NO. 88M12AJ630101 (PX14 : HDMI PWB ASSY)
Q701, QX10, QX11
ƴƭƍƯ
ƴƭƍƯ
:
Q701, QX10, QX11
Ƹ
IC
ƷɶځưؕெƴҞဋ˄ƚƞǕƯƍLJƢŵྸ଺ŴᢿԼƷʩƸ
ЈஹLJƤǜŵNjƠƜƷᢿԼǛʩƢǔƱƖƸɦᚡƷؕெܦ঺ԼưʩƠƯƘƩƞƍŵ
QX10, QX11
ʩ଺ƸŴ
PART NO. 88M12AJ630101 (PX14 : HDMI PWB ASSY)
ưʩŵ
