Mark 7 650 - Removing The Bottom Pin From The Left Side Link

MARK 7® RELOADING USER MANUAL VERSION 2.7 COPYRIGHT 2017
ALL RIGHTS RESERVED
12
5. Removing The Bottom Pin From The Left Side Link
Place the lower pin in a bench vice or vice grips. If possible wrap the pin in a thick cloth or
rubber sheet to avoid imperfections due to clamping. Remove the lock nut and slide the left link
arm off the pin.

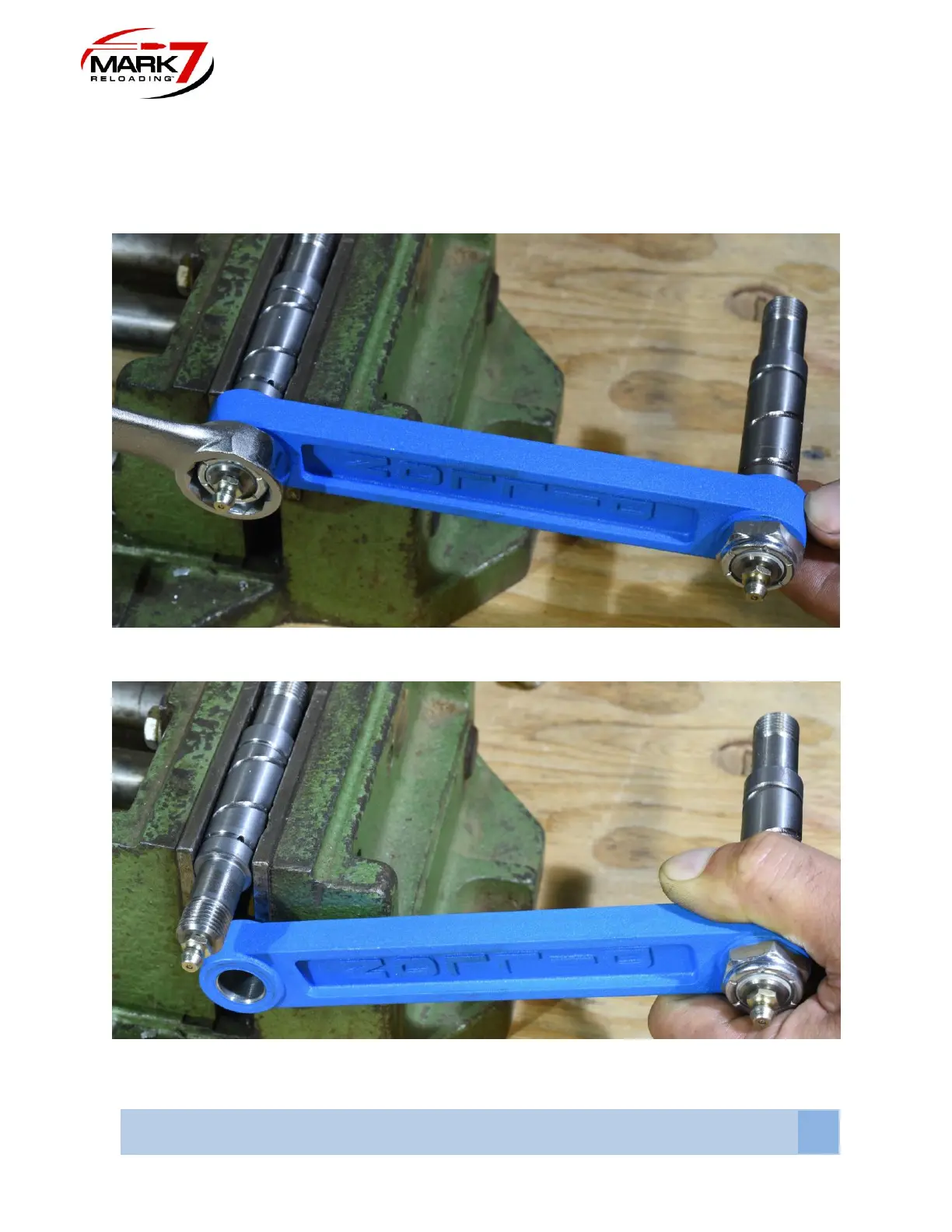

Figure 9: Removing Lower Pin on Left Side Link Arm
Figure 10: Left Link Removed
