™ Installation Instructions (optional sensor)

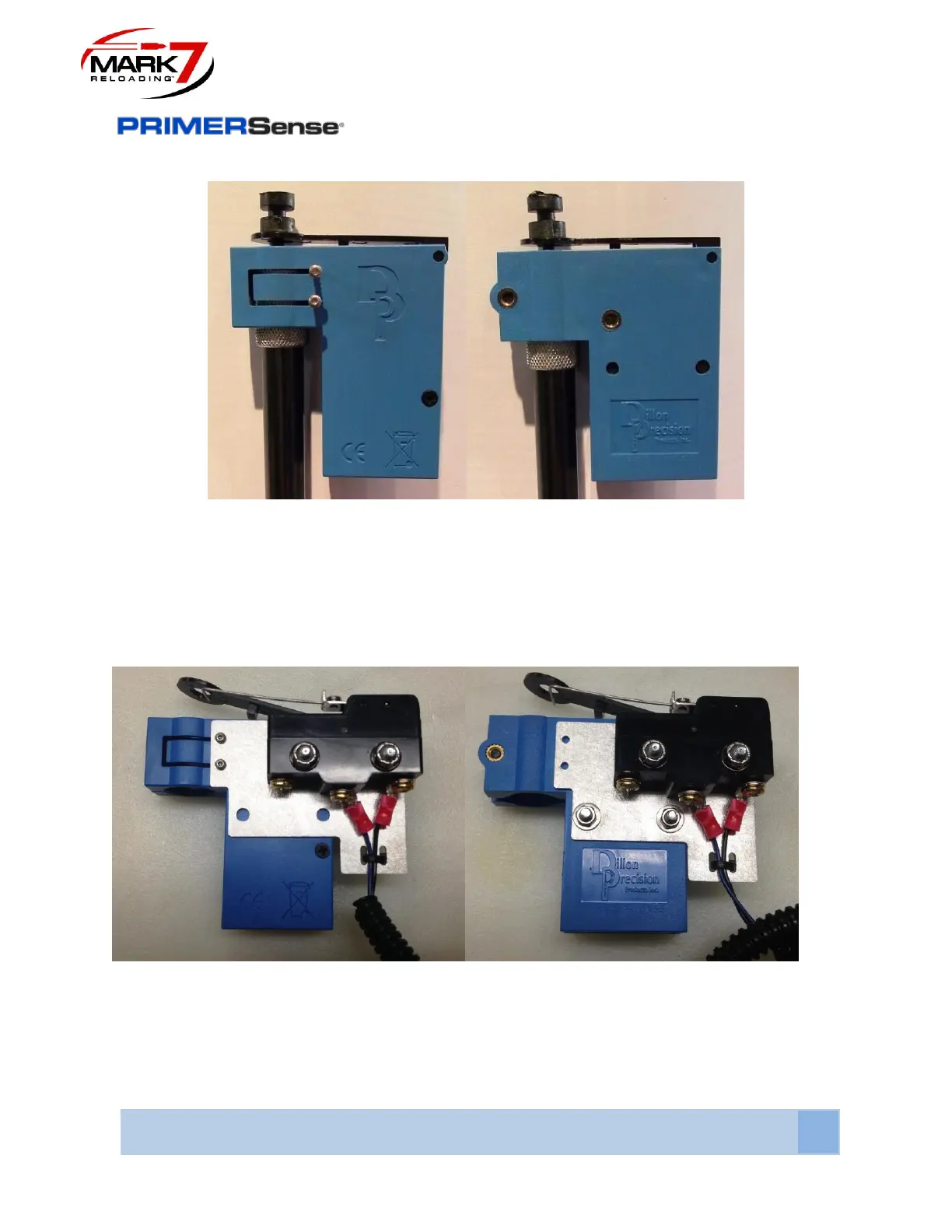

Figure 33: New Style Left, Old Style Right
The Low primers Senor mount works with both the new and old style Dillon low primer
alarms. Mounting on the new style primer alarm requires a Torx screws that thread into existing
holes in side. Mounting for the old style requires replacing the bottom 8-32” screws with the
screws supplied with the mount as shown in the figures below.
Figure 34: New Style mounted Left, Old style Mounted Right
A 45 Caliber case or equivalent weight can be put at the top of the primer follower stick if
needed to ensure accurate depression of the hardware primer sensor.
