6. Reinstalling The Link Arms To The 650
Slide the upper pin in the left side link into the 650 frame. Install the right side link on the pin
and tighten the lock nuts, keep the lock nuts loose so the link arms can still rotate. Final
tightening will occur when the 650 is mounted to the autodrive.

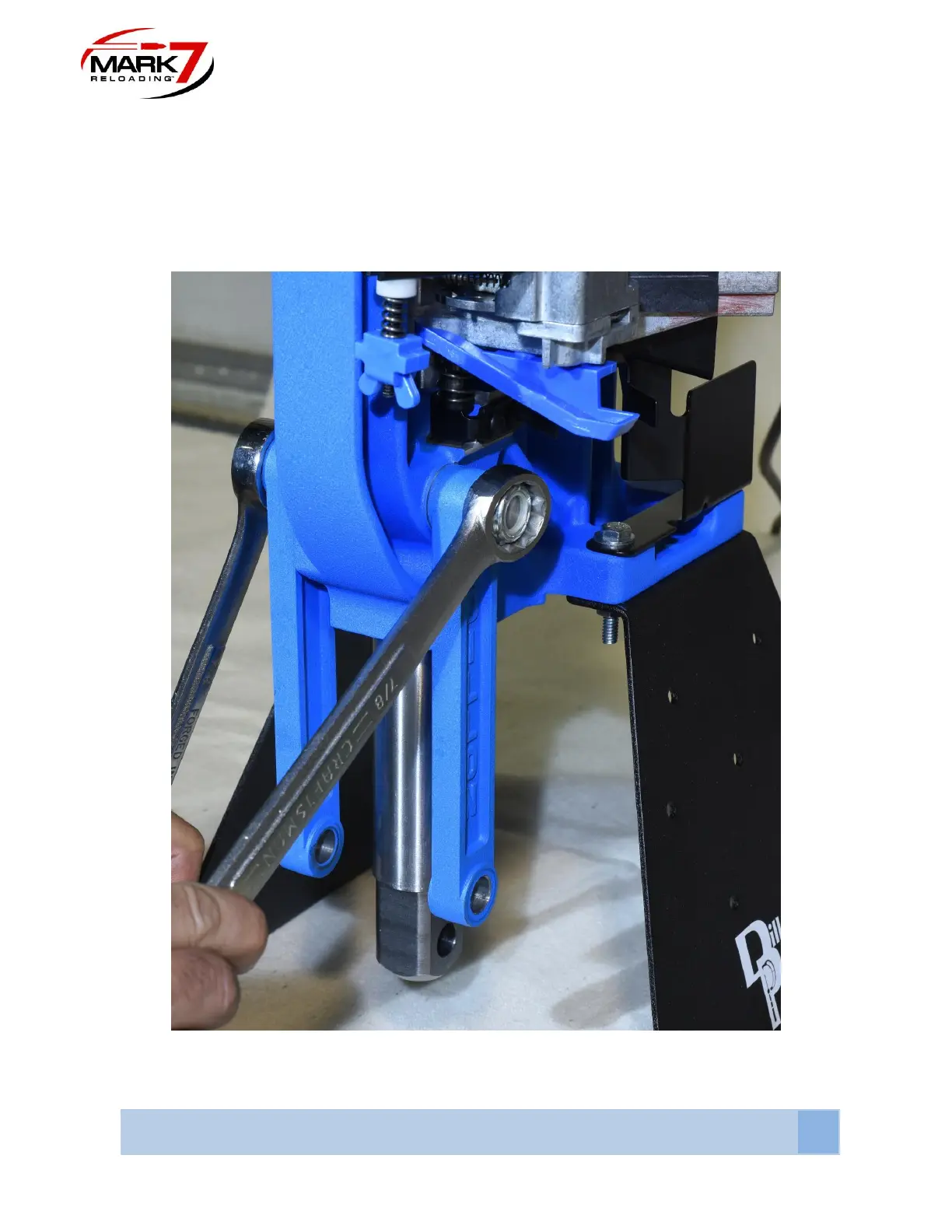

Figure 11: Re-Installing Link Arms to 650 Press (Do Not Fully Tighten at This Stage)
