RUN - The RUN function signals the Mark 7® Autodrive to begin operation at the settings
requested.
ROUNDS PER HOUR – The 650 X has 2 speeds 900 and 1200. The 650 PRO has 4 speeds
900, 1200, 1500 and 1800.
SINGLE CYCLE - The SINGLE CYCLE function allows the operator to run a single cycle. This
command will only work when the press is stopped and in the top position.
END CYCLE - The END CYCLE function will complete the current cycle and return to the top
position.
JOG UP - The JOG UP function will incrementally move the press upwards. The JOG UP
functions is useful in clearing jams that may occur. The JOG UP function will only work when
the Mark 7® Autodrive is at a stop.
JOG DOWN - The JOG DOWN function will incrementally move the press downwards. The
JOG DOWN function will only work when the Mark 7® Autodrive is at a stop.
STOP - The STOP function will stop the press from moving in any event. Pressing STOP twice
will switch the motor into neutral which is helpful if the press needs to be manually actuated.

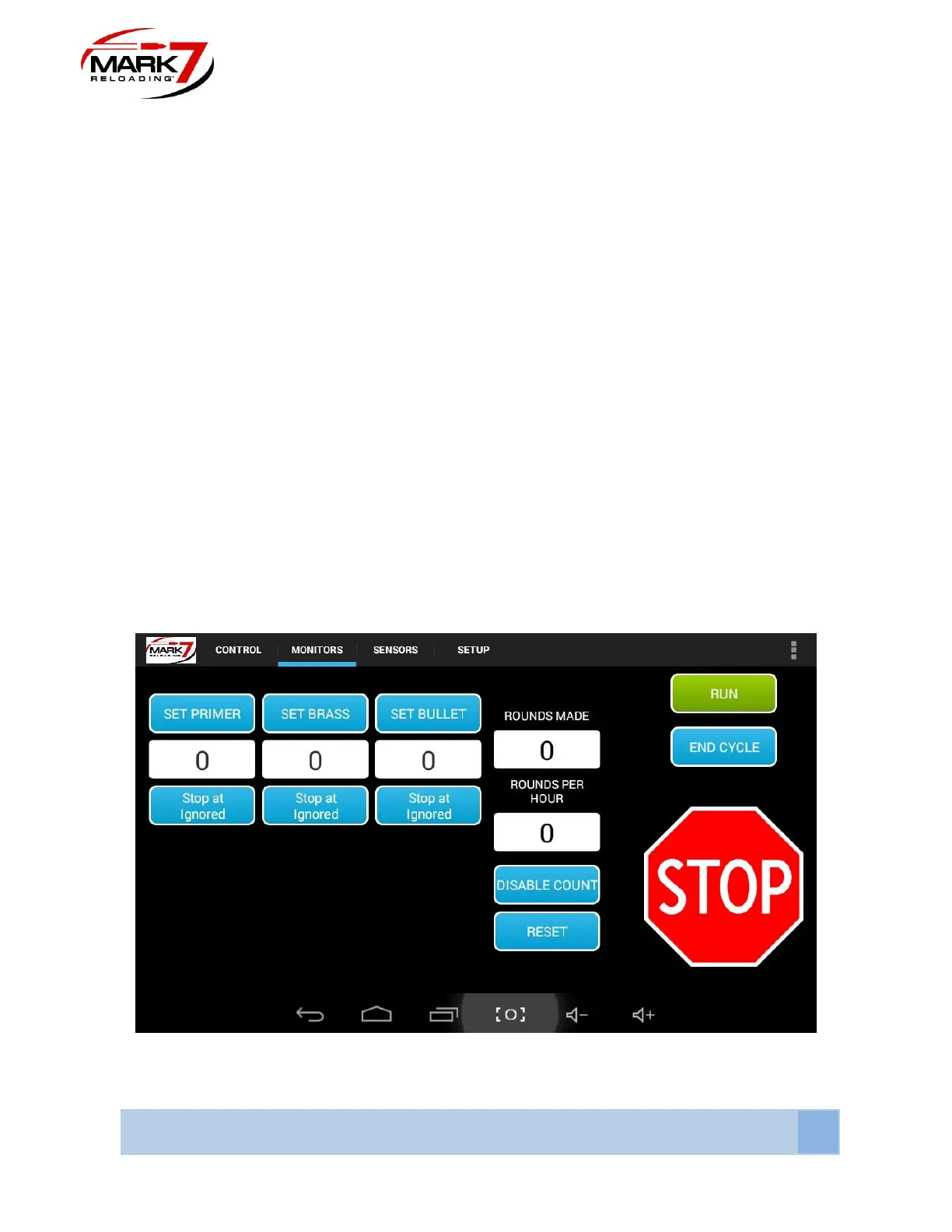

Monitors Screen
Figure 50: System Monitor Screen
