9. Installing Crank Shield
Remove the backing tape on the crank shield and place the shield around the crank on the right
side of the machine. Gently flex the plastic so you can adhere the 3M tape to the backside of
the front support and front side of the riser mount.

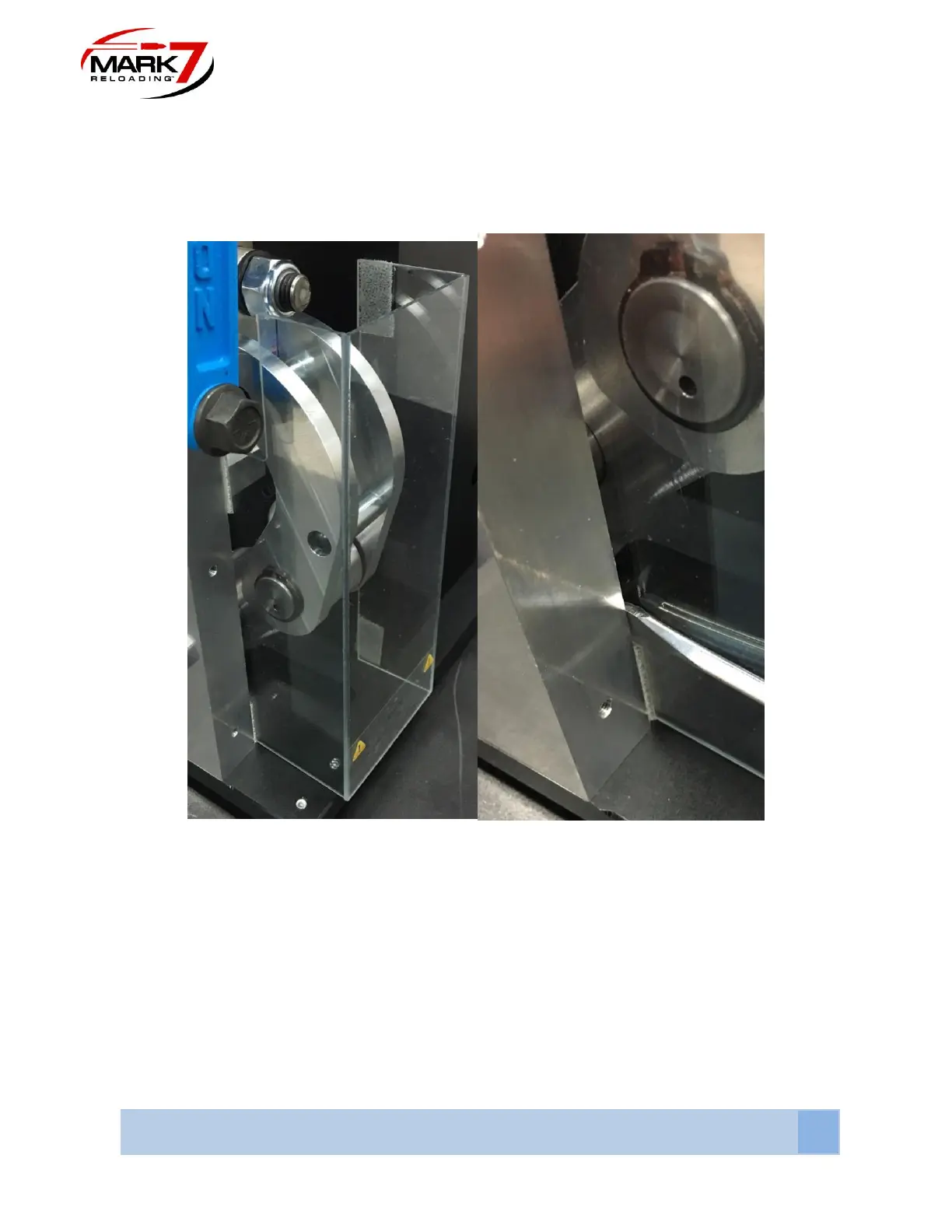

Figure 18: Shield Installed (Left). Removing Shield (Right)
Firmly press on the inside of shield to allow the adhesive to achieve a proper bond. To remove
the shield gently pry at each corner with a flat head screw driver to disengage the 3M
tape as shown in the right image below.
