Now that everything is connected, fully tighten the XL 650 to the riser mount, top and bottom link
arms, and the M14 Screw through 650 ram. If the 4X set screws on the lower crank were
loosened during the install re-tighten with medium Loctite if possible.

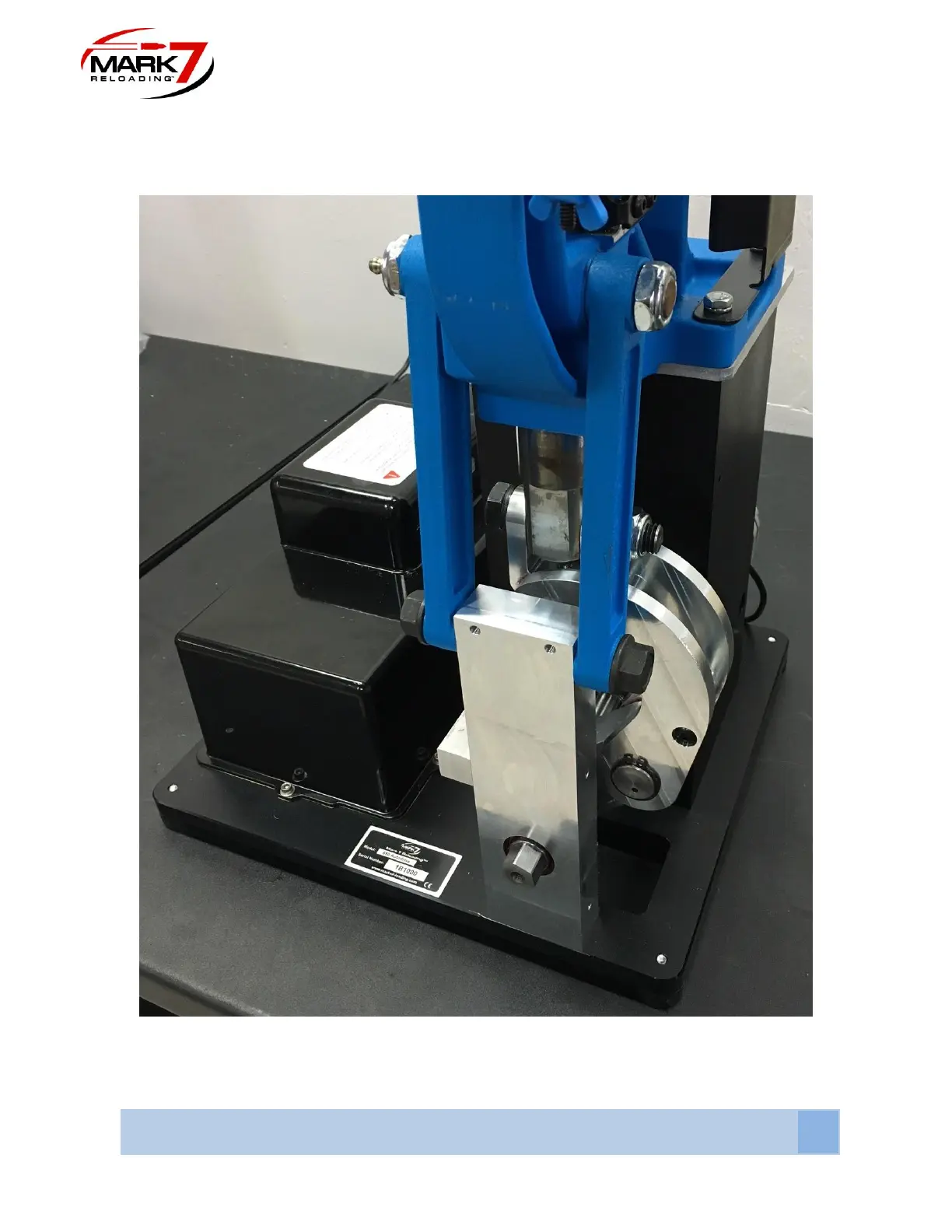

Figure 17: XL 650 fully mounted
