11. Console cable locations and setup

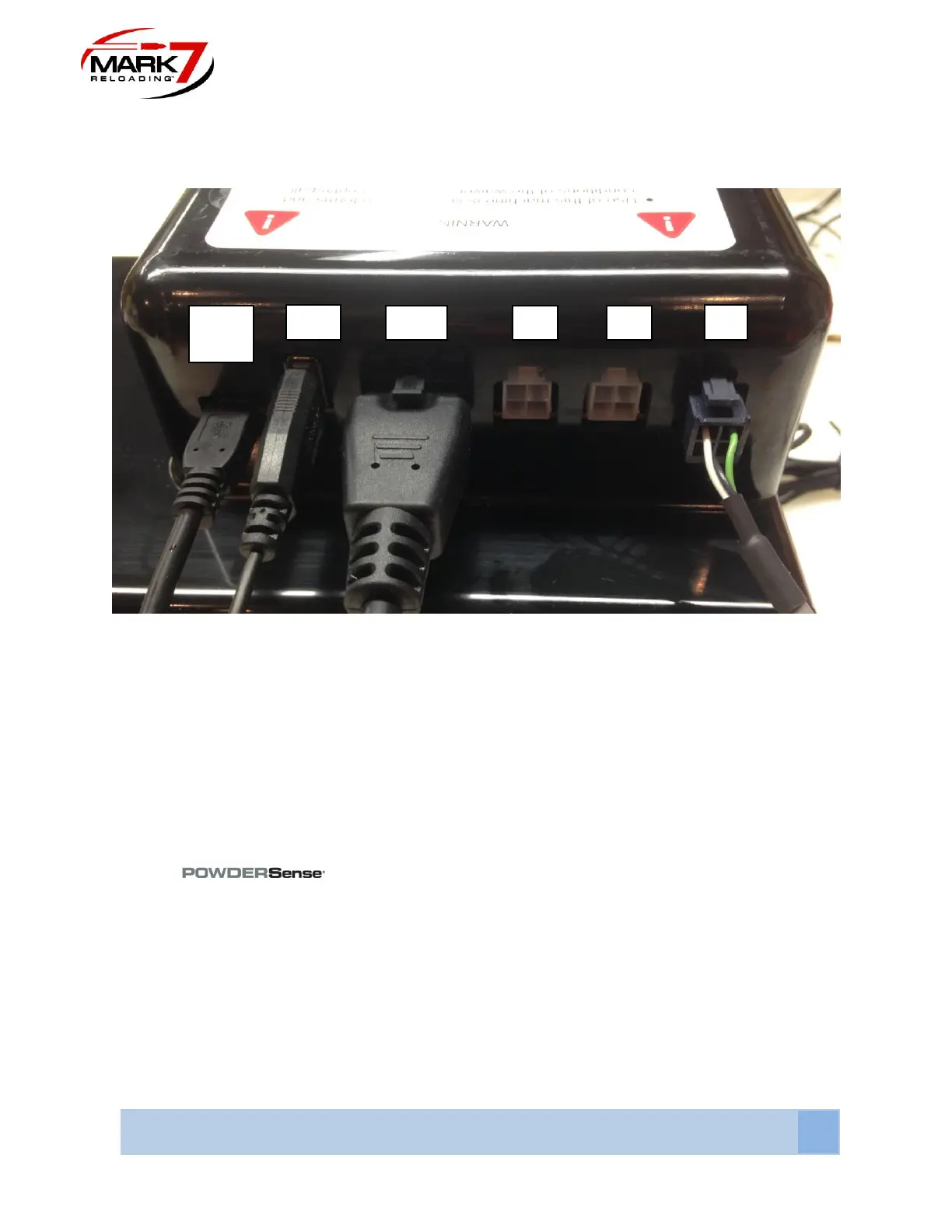

Figure 23: Side of Console Inputs
Before powering on the Mark 7 Units please make the following connections:
Micro-USB: Tablet to Console USB data communication cable
USB: Motor to Console USB data communication cable
8-Pin: Motor to console signal cable
Port #7: (optional)
Port #6: Wired Remote Stop (optional)
Port #5: Optical Decapping Sensor™ (included)
