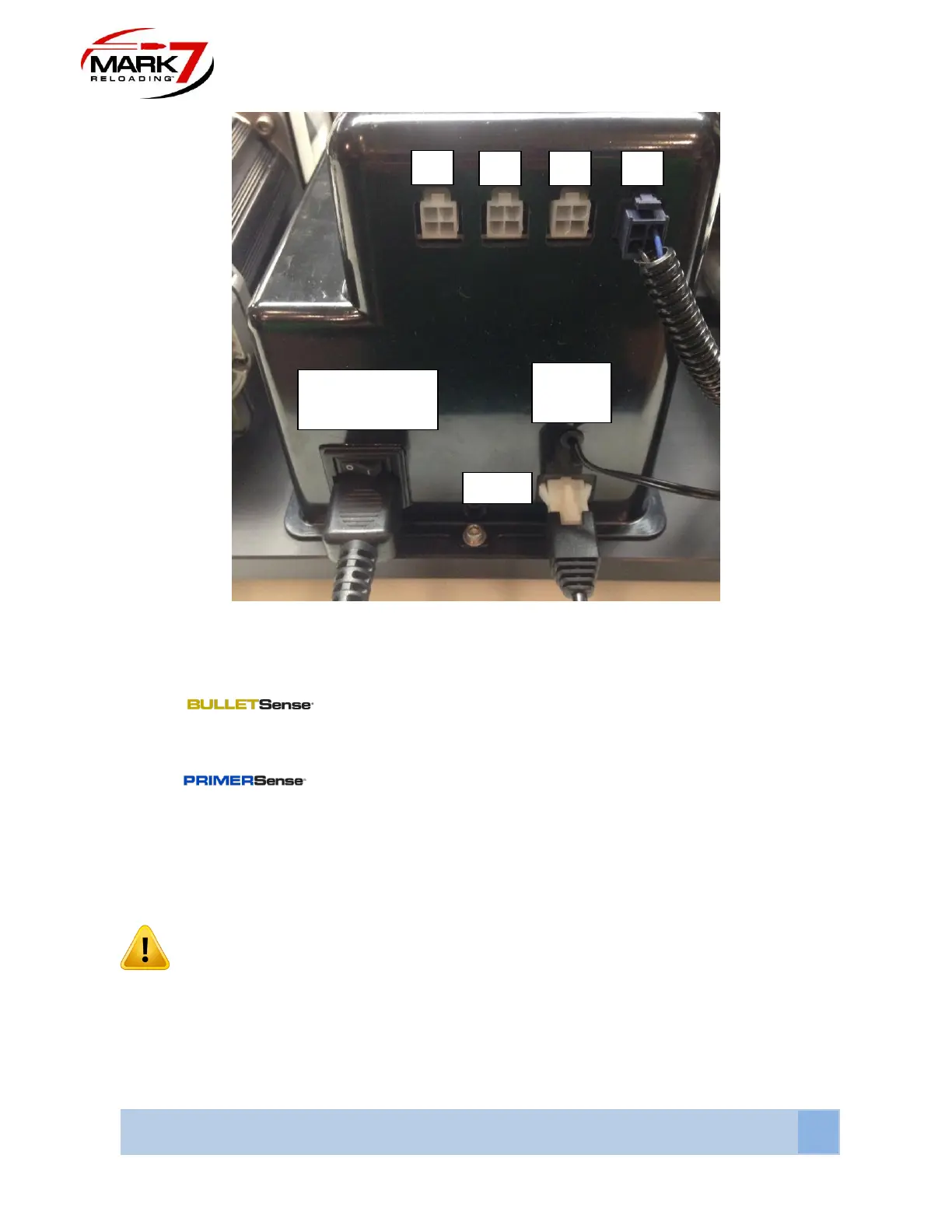

Figure 24: Rear of Console Inputs
Port #4: Available
Port #3: (Optional)
Port #2: Available
Port #1: (Optional)
AC INPUT & Power ON/OFF Receptacle: Units are configured in either 110V or 220V.
6-Pin: Motor to Console DC Power Cord
Tablet Power Cord: Connect to tablet
WARNING – Never power on the console switch without the 6-pin Molex connector
plugged in and never install this connector with the power already on since the DC
voltage would damage the motor's input contacts.
