8. Mounting 650 Onto Mark 7® Autodrive - Place the XL 650 onto the top plate of the mount
on the autodrive. Using a 7/16” wrench partially tighten the ¼-20 X 1.5” hex head screws.
Rotate the link arms up and away from the front support.

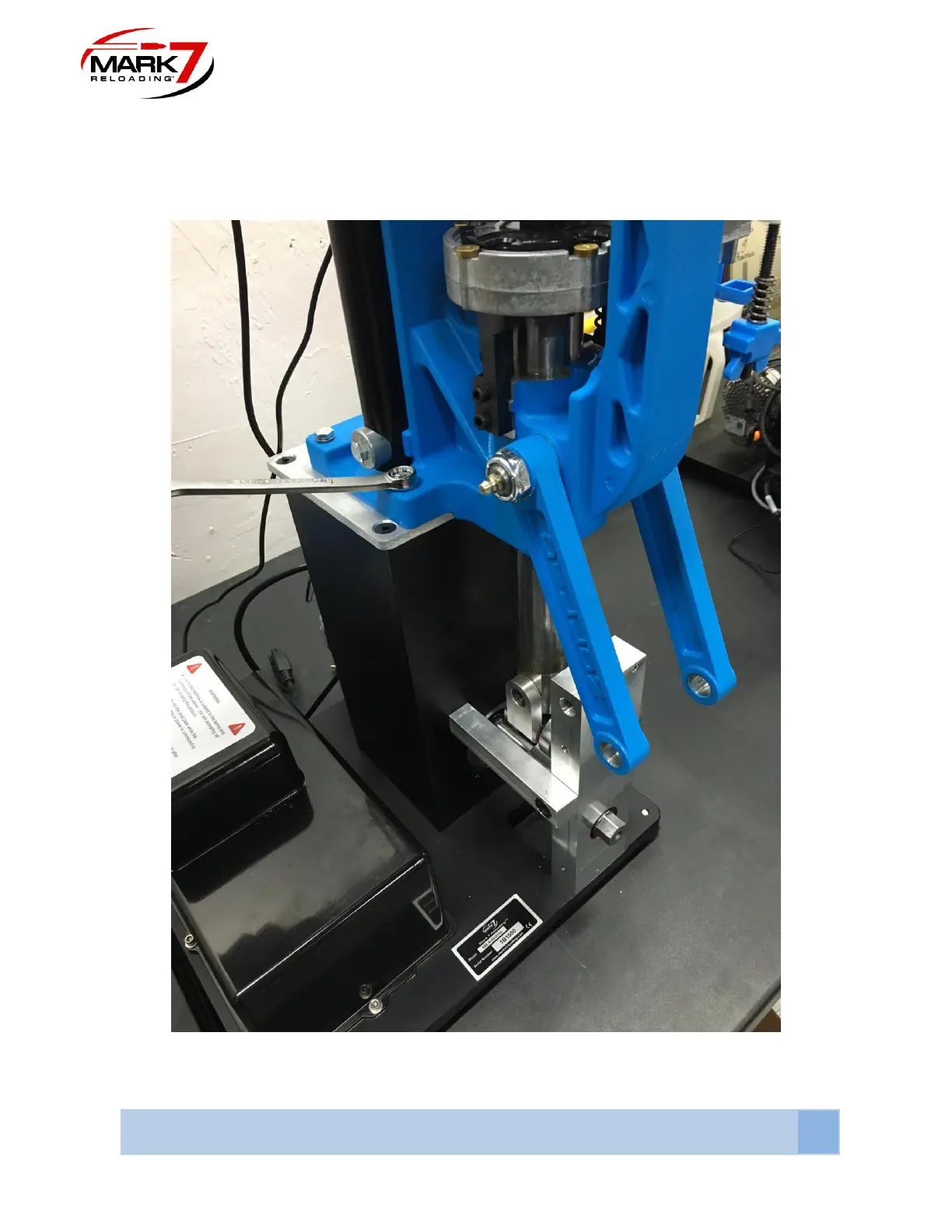

Figure 14: XL 650 Mounted to Mark 7 Mount
