Installation Procedure – for later model, U.S. case feeders.
1. Unplug the power cord to the Dillon case feeder.
2. Using a ¼ socket or nut driver remove the front cover plate on the case feeder. Remove and
replace the microswitch with the filtered microswitch included in the kit.
3. Plug the RC filter into the microswitch as shown below and into the center position of the on/off
switch. Plug the Power lines into the corresponding male terminal leads on the RC filter
terminals as shown below.
4. Reinstall cover plate and test for proper operation.

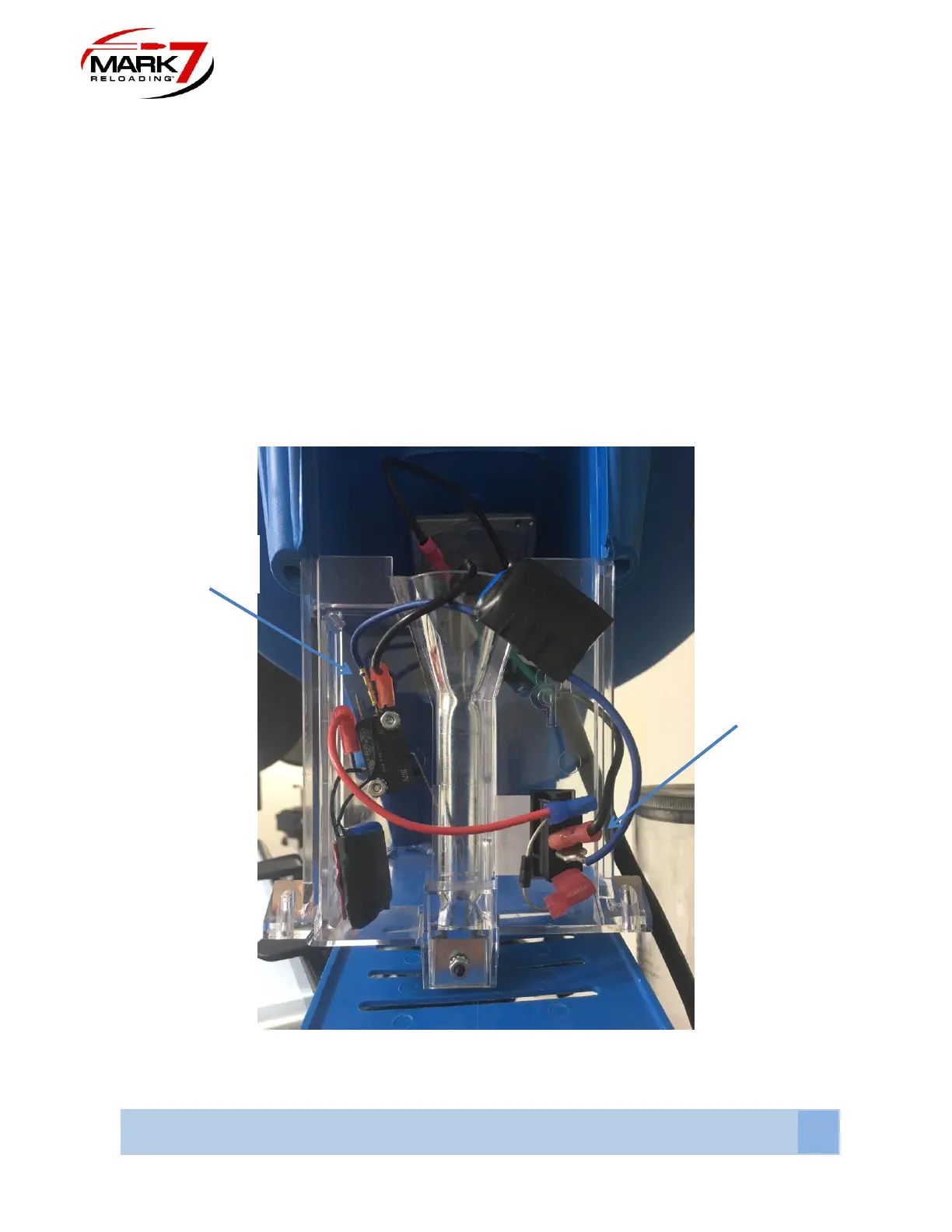

Figure 29: Case Feeder RC Filter
