5.2 Front Panel Description

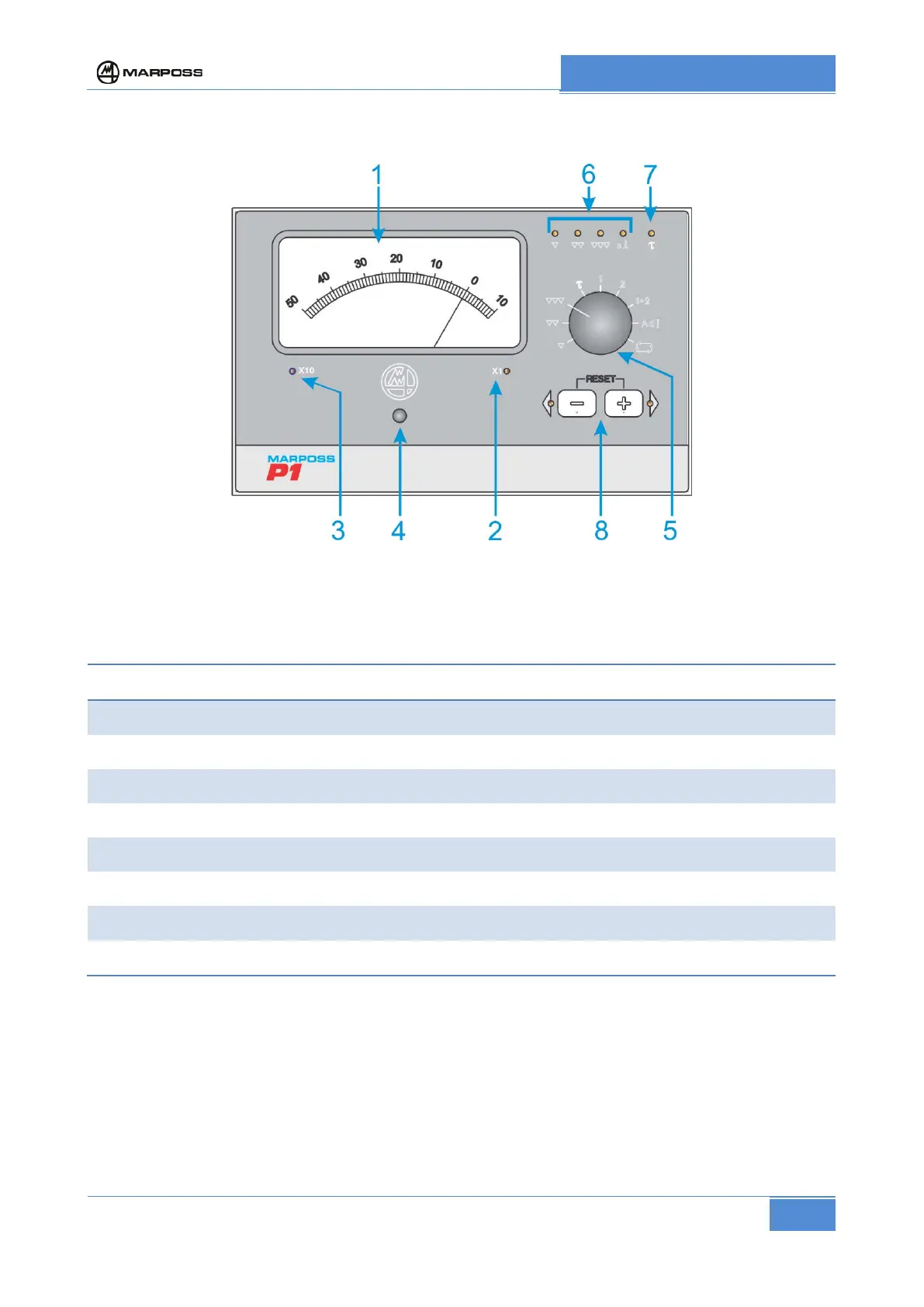

Figure 1 P1 front panel
Front panel
1
Readout meter with automatic scale change
2
Led for millesimal scale
3
Led for centesimal scale
4
Mechanical adjustment of meter
5
Function selector
6
Cycle led
7
Led indicating end of delay
8
Adjustment pushbuttons
