marposs P1 - Unit Panel Mounting Procedure

Instruction Manual
24
P1
– Instruction Manual
6.2.2 Panel Mounting
When securing the unit to a support panel, use four M3 x 12 mounting pins positioned as indicated below.

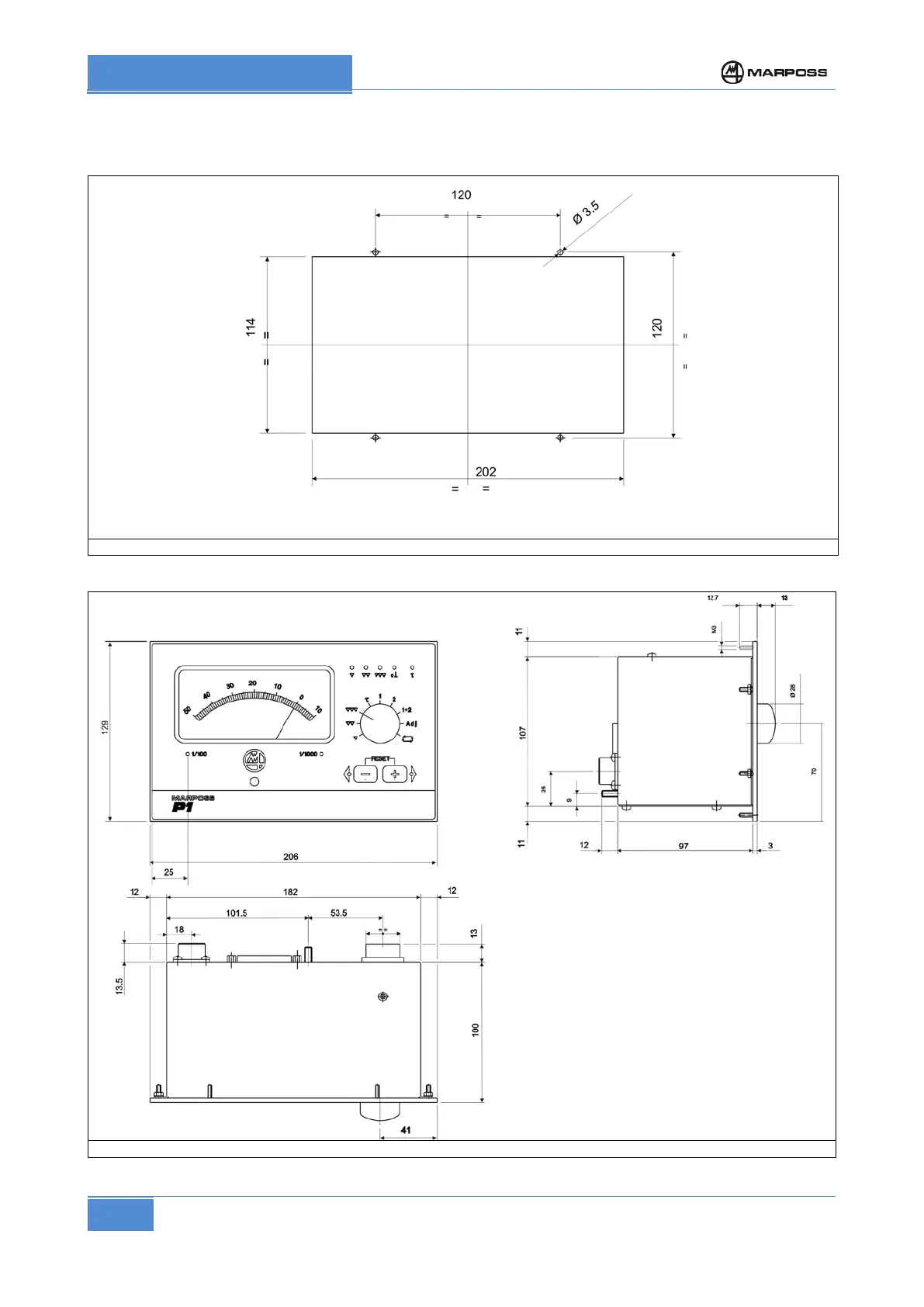

Figura 4 Panel mounting hole template
Figura 5 Panel mounting external dimensions
