6.2 Fastening the electronic unit
6.2.1 Securing the unit to the Machine Tool
In the case of the P1 version with case, secure the gauge to the machine tool using the four internally
threaded feet (M4 thread).
The maximum rear dimensions, due to the measuring head connector, depend on the type of measuring head used.

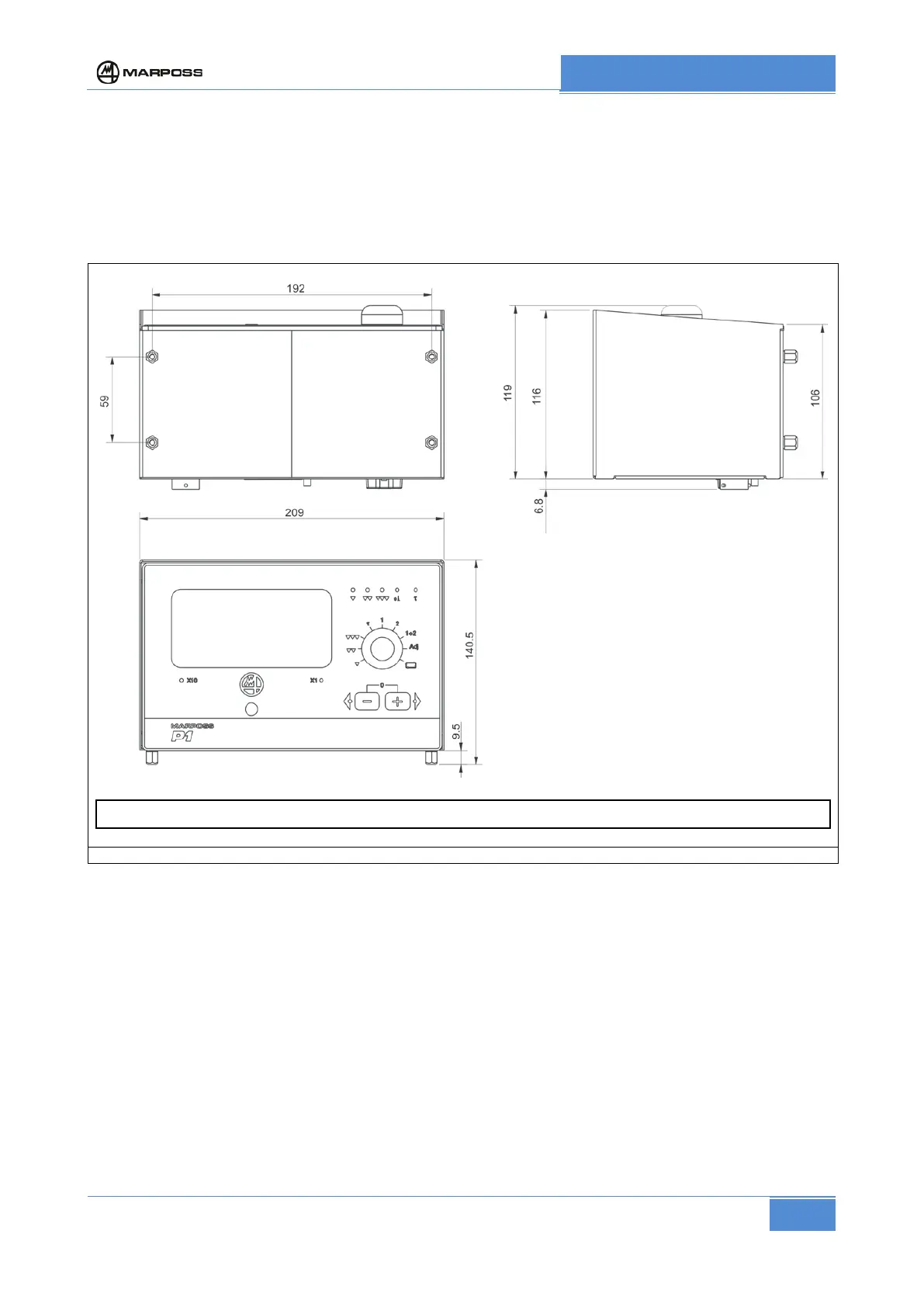

Figure 3 Overall dimensions with casing and tilting stand
