marposs P1 - Measuring Head Positioning

Instruction Manual
32
P1
– Instruction Manual

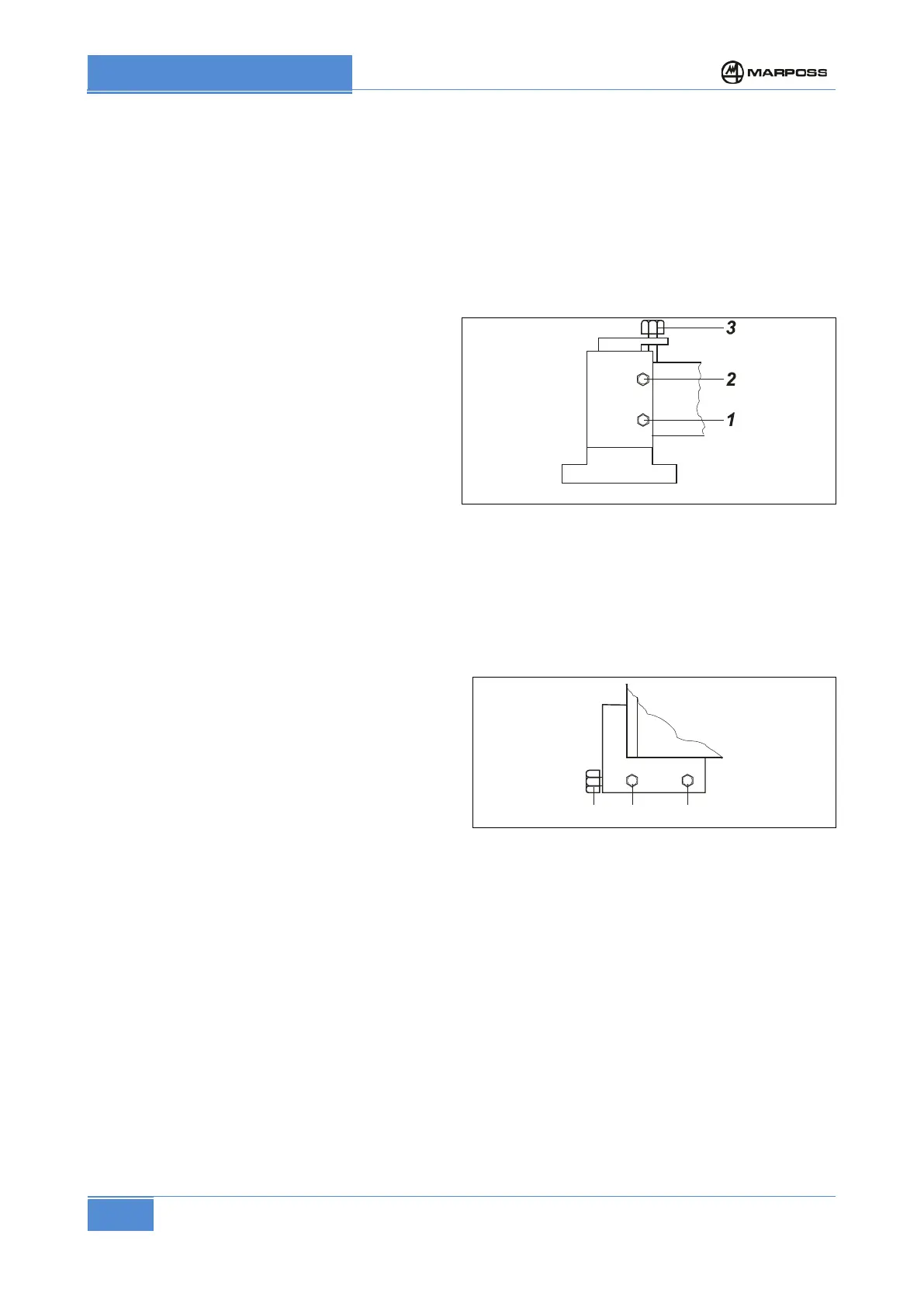

7.3 Positioning of measuring head in machine
7.3.1 Vertical adjustment
Position the measuring head in order to allow the execution of mechanical zero-setting on the contacts.
So in some cases a support with vertical adjustment of position is indispensable. Act as follows:
a) loosen screws 1 and 2
b) act on screw 3 to bring the measuring head to a position that allows to carry out the zero-setting
c) tighten screws 1 and 2.
d) zero-set the gauging system (see Errore. L'origine riferimento non è stata trovata. “Errore. L'origine
riferimento non è stata trovata.”)
e) loosen screws 1 and 2
f) act on screw 3 making the meter read the
maximum value
g) tighten screws 1 and 2
h) if the measurement displacement is excessive,
repeat the zero-setting operations
Figura 11. Vertical adjustment of measuring head
7.3.2 Horizontal adjustment
a) loosen screws 1 and 2
b) act on screw 3 to bring the contacts (or contact) approximately on the diameter
c) tighten screws 1 and 2
d) zero-set the gauging system (see Errore. L'origine riferimento non è stata trovata. “Errore. L'origine
riferimento non è stata trovata.”)
e)
loosen screws 1 and 2
f)
act on screw 3 making the meter read the
maximum value
g)
tighten screws 1 and 2
h)
if the measurement displacement is excessive,
repeat the zero-setting operations
3 2
1
Figura 12. Horizontal adjustment of measuring head
