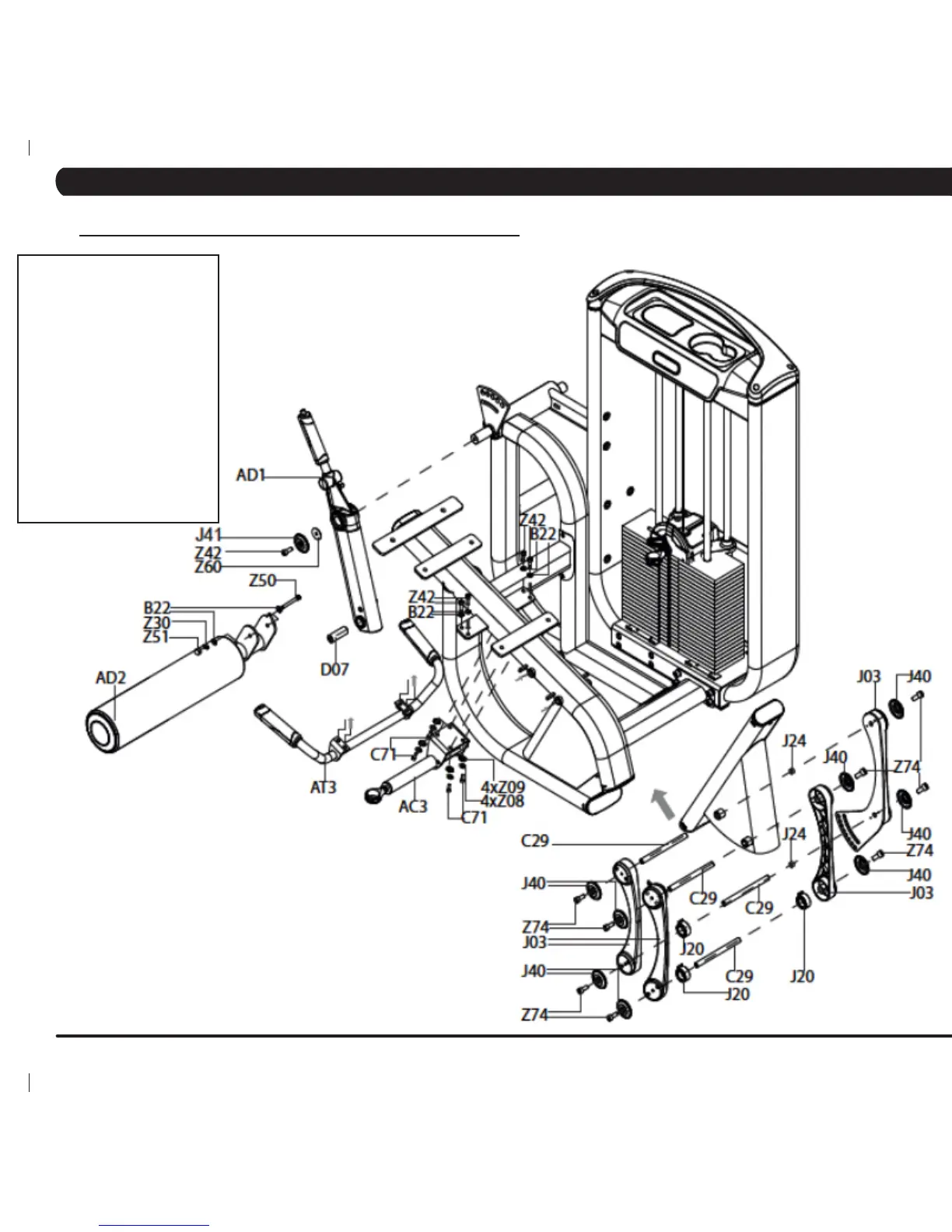

5.14 G7-S71 LEG EXTENSION ASSEMBLY INSTRUCTIONS - CONTINUED
Item Description Quantity
B22 Flat Washer 5
C29 Short Shaft 4
C71 Screw (M8 x 25L) 4
D07 Shaft 1
J03 Links 4
J20 Swirl Spring 3
J24 Spacer 2
J40 Cap 8
J41 Orange Cap 1
Z08 Spring Washer 4
Z09 Flat Washer 4
Z30 Spring Washer 1
Z42 Screw (M10 x 25L) 5
Z50 Screw (M10 x 100L) 1
Z51 Nut (M10) 1
Z60 Special Flat Washer 1
Z74 Screw (M8 x 25L) 8
STEP 2
