111

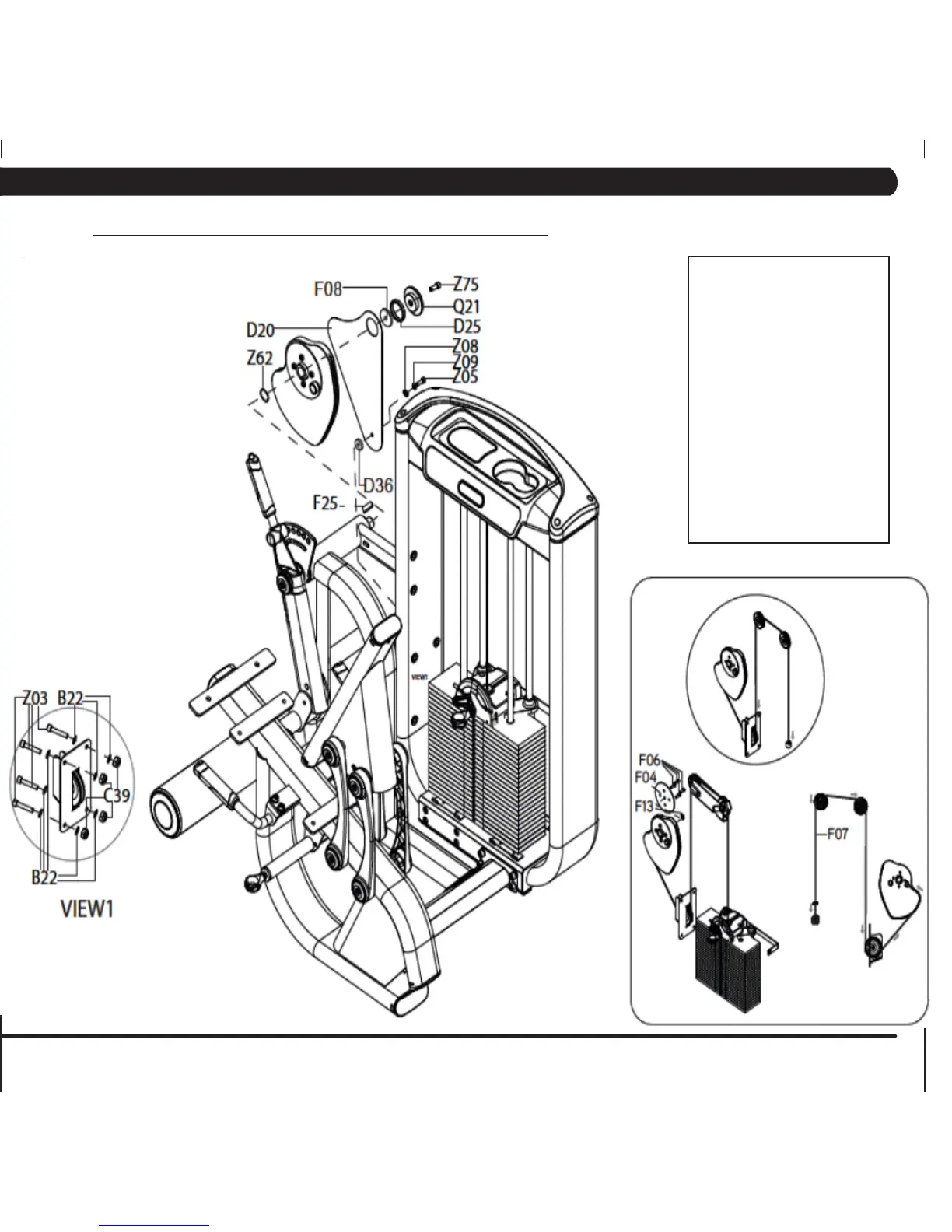

5.14 G7-S71 LEG EXTENSION ASSEMBLY INSTRUCTIONS - CONTINUED
Item Description Quantity
B22 Flat Washer 8
C39 Nylon Nut (M10) 4
D20 Stopper Plate 1
D25 Stopper Sleeve 1
D36 Pad Plate 1
F04 Cam Snug Plate 1
F06 Hex Screw 4
F07 Cable 1
F08 Plate Space 1
F13 Fixing Block 1
F25 Key 1
Q21 Cap 1
Z03 Screw (M10 x 75L) 4
Z05 Screw (M8 x 15L) 1
Z08 Flat Washer 1
Z09 Lock Washer 1
Z62 Wave Washer 1
Z75 Screw (M10 x 20L) 1
STEP 3
